LUT11S 10.1 Inch Ultra High Bright 2000nit Touch Screen Field Monitor

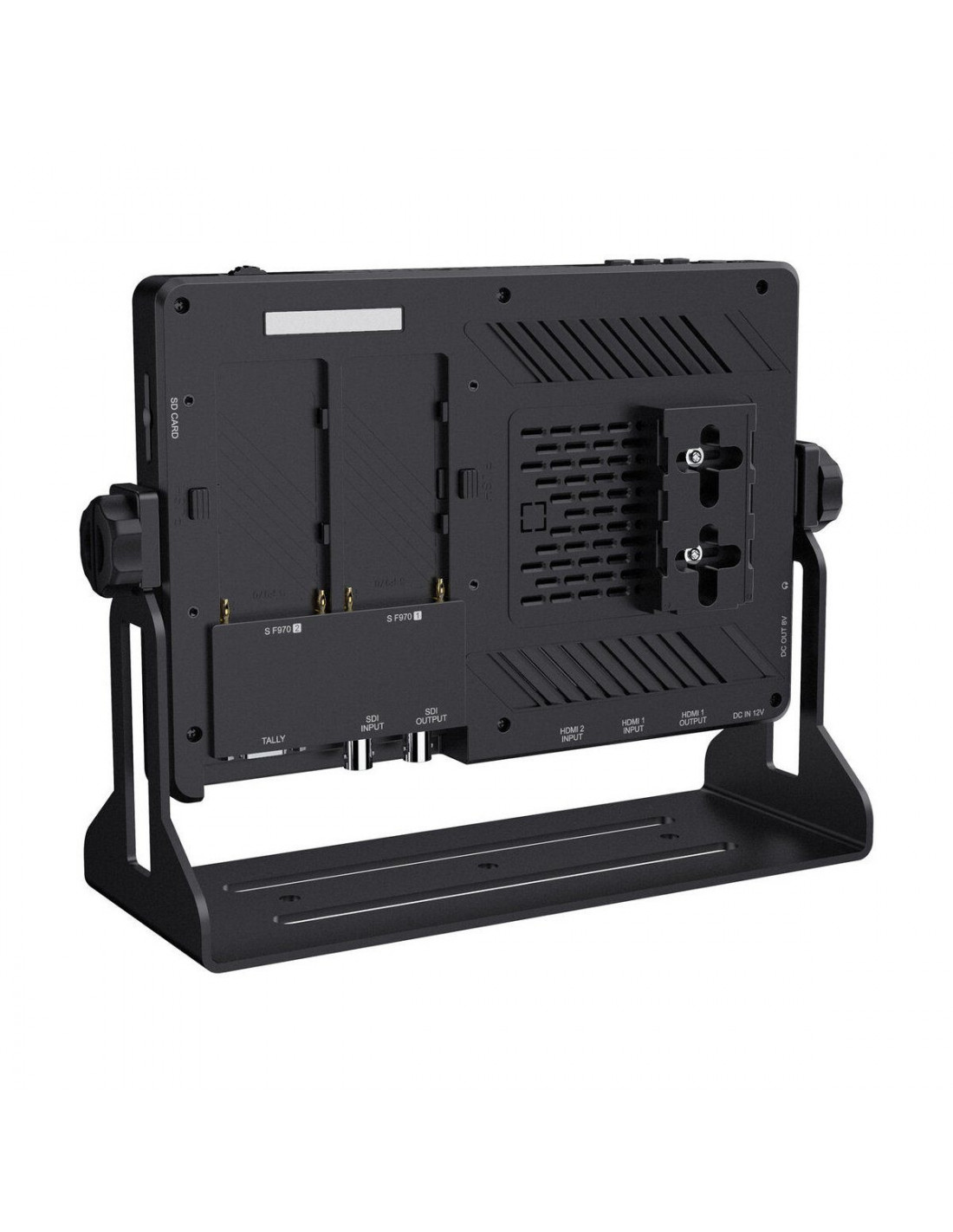

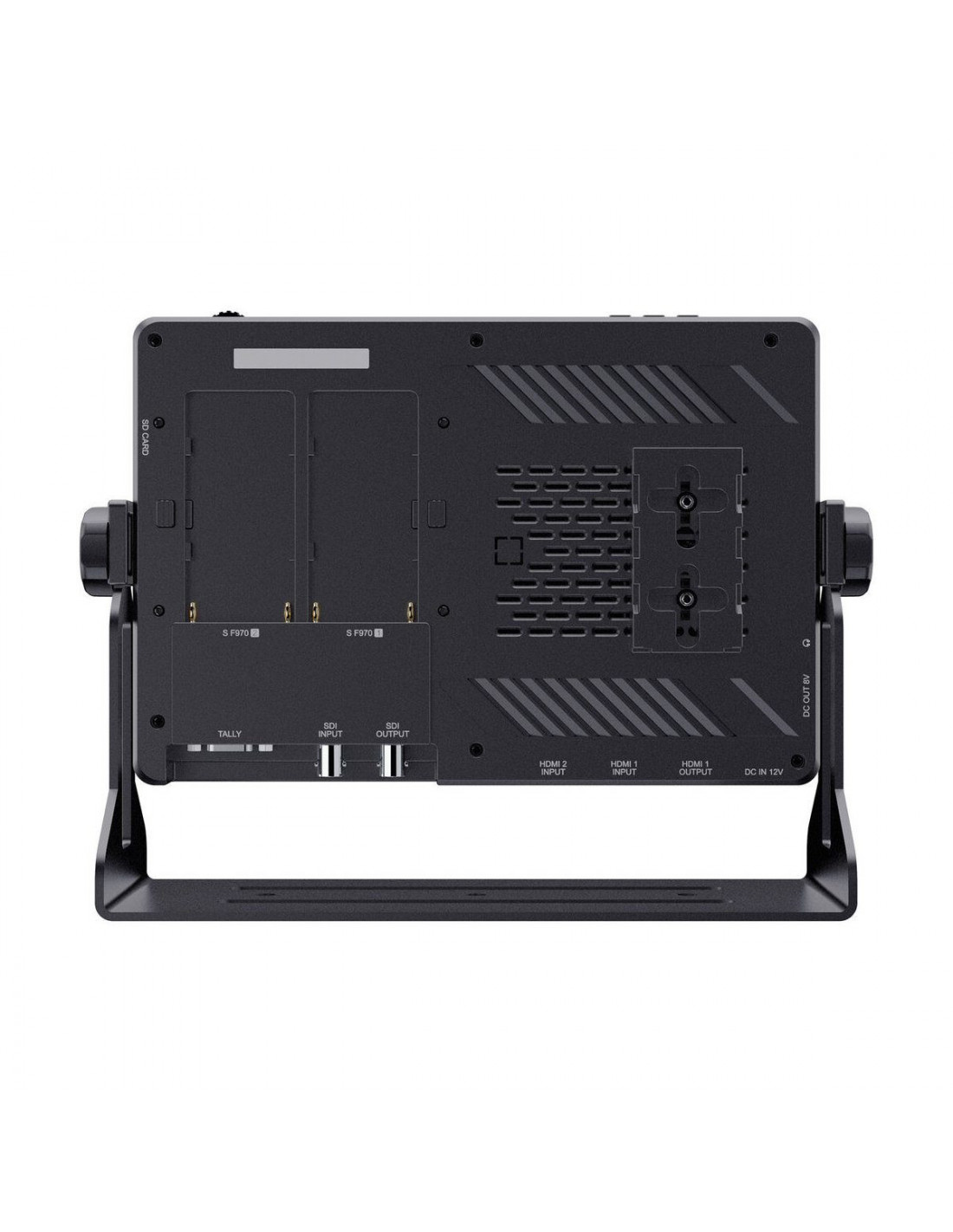

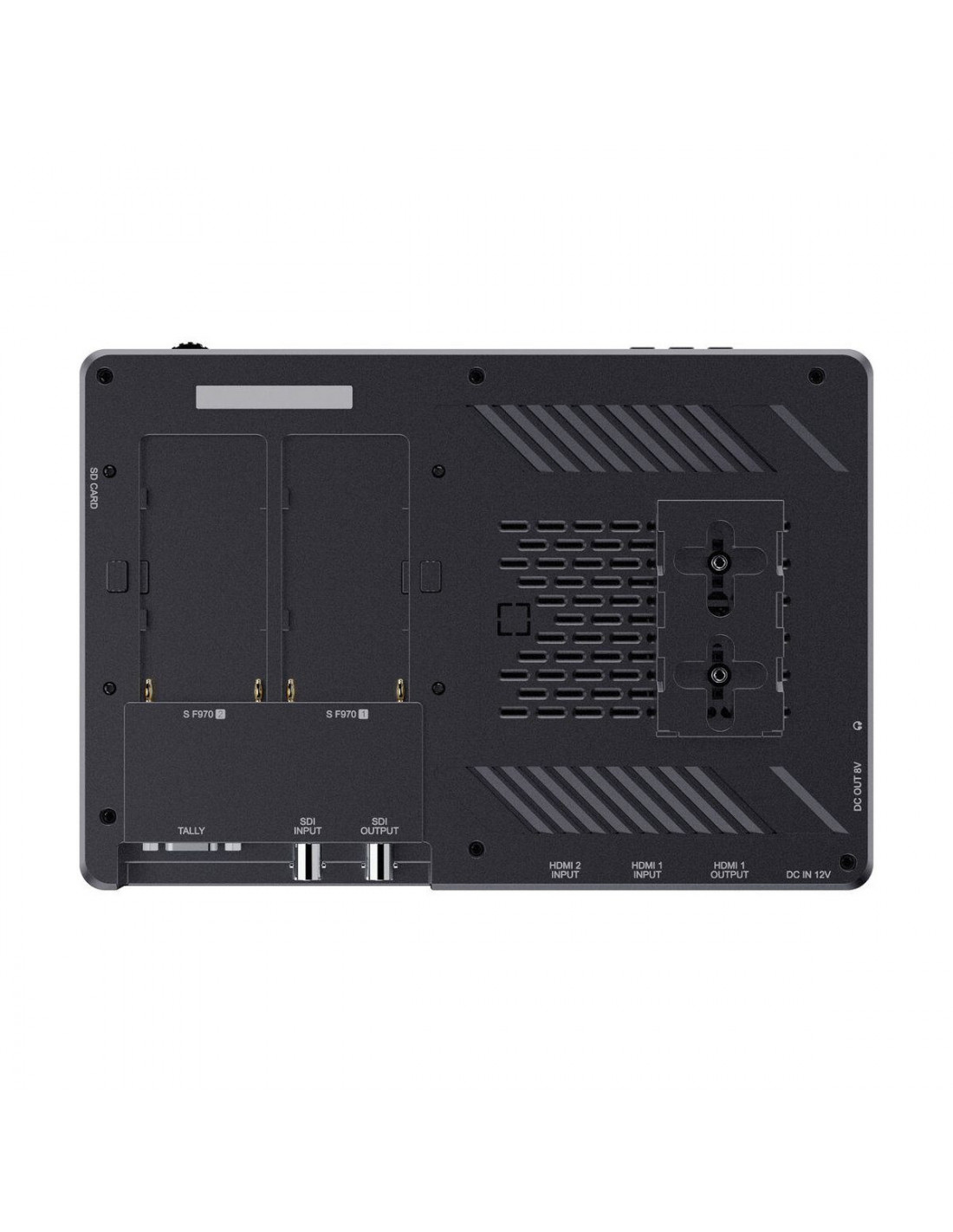

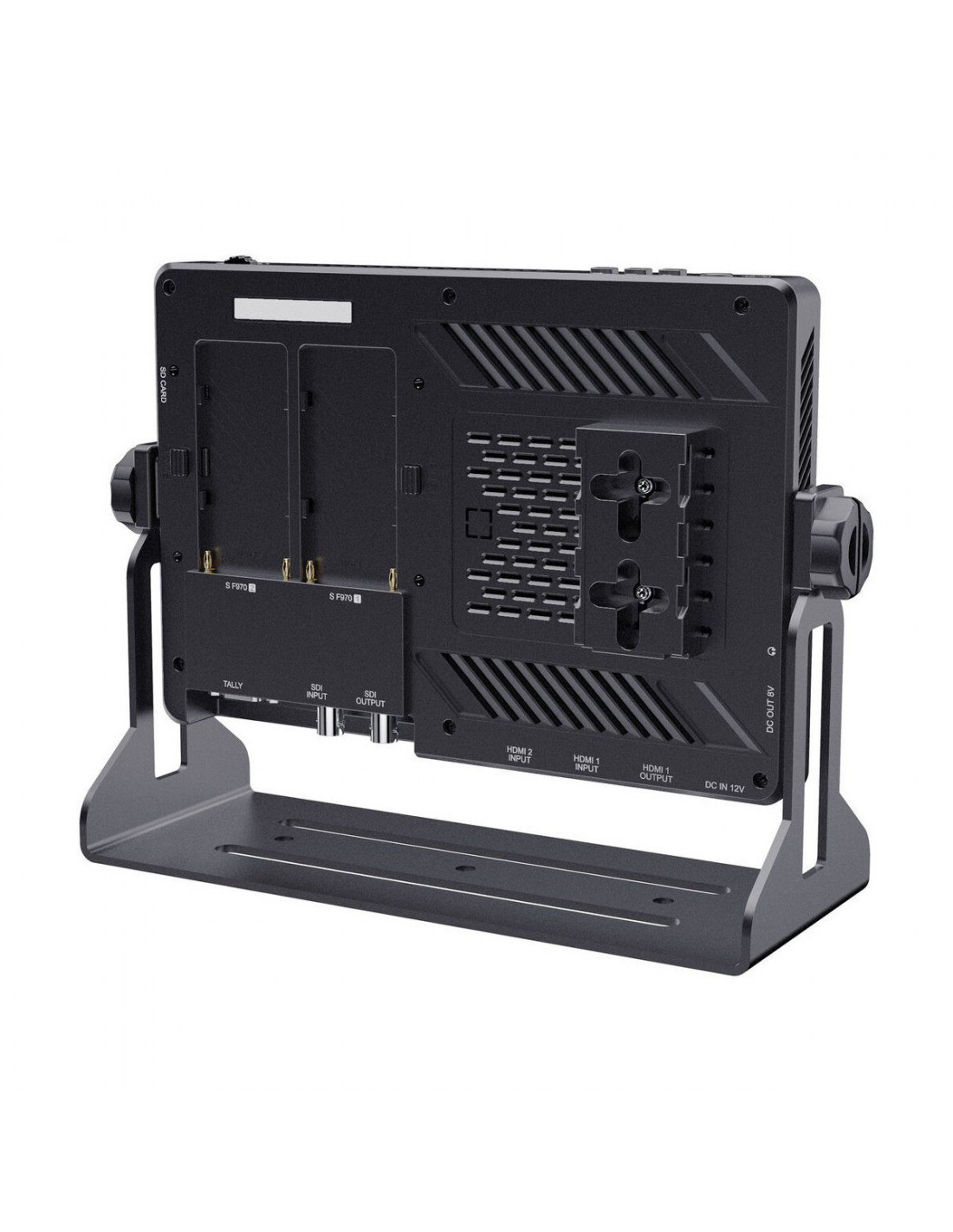

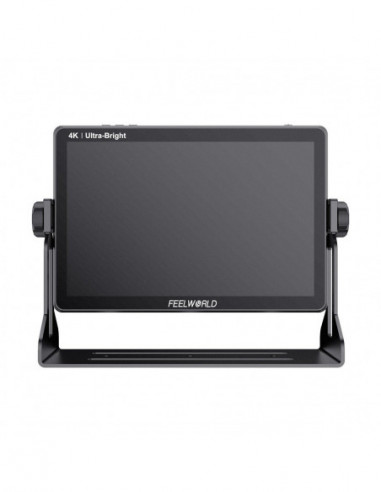

Feelworld LUT11S 10.1 Inch Ultra High Bright 2000nit Touch Screen Field Monitor The Feelworld LUT11S 10.1 Inch Ultra High Bright 2000nit Touch Screen Field Monitor is a high quality IPS LCD panel that integrates both HDMI and 3G SDI inputs with loop through outputs. This monitor supports DCI 4K60 HDMI and 2K60 SGI video inputs. At the rear, the monitor is equipped with an integrated dual L series battery slot. The monitor comes with a removable mounting plate that can be used to mount optional accessories, such as wireless transmitters or receivers. Highlights Touchscreen Field Monitor High quality IPS LCD panel Resolution of 1920 x 1200 pixels True to life colours and wide viewing angle The LCD panel has a resolution of 1920 x 1200 pixels, an aspect ratio of 16:10, a contrast ratio of 800:1 and a measured brightness of 2000cd/m², making it easy to see both indoors and outdoors. The touchscreen allows quick access to settings. The IPS LCD has a viewing angle of 170 degrees without distorting colours and contrast. This means you don't have to sit right in front of the monitor to see the image properly. Connection options of the LUT11S On the bottom of the monitor you will find a DB 9 port, an HDMI output, two HDMI inputs, a 3G SDI input, a 3G SDI output and a DC 12V power input. On the side is the 3.5mm headphone jack and a DC 8V power output for your camera. The bottom also has a 1/4" 20 threaded mount for placement on a magic arm or tripod. On top of the monitor are three custom hotkeys for quickly calling up functions. 3D LUT The LUT11S supports custom 3D LUTs to accurately assess camera colour on screen. Up to 50 LUTs can be loaded via an integrated SD memory card slot on the side.  Versatile colour support This Feelworld monitor supports Rec.709, DCIP3 and BT2020 colour spaces. This ensures that the monitor can meet the colour requirements of different media and output formats, and gives videographers and colour correctors the flexibility they need for accurate colour reproduction. Comprehensive image evaluation tools The Feelworld LUT11S has a variety of image evaluation tools built in, including, such as Anamorphic mode, Waveform, Vector, Histogram, RGB Histogram, Embedded Audio, Focus Peaking, Zoom, Zebra and Safe Frames.  Power supply You power the monitor using two NP F batteries or mains power. The batteries are not included, but can be found under ‘Accessories’. The monitor has an 8 VDC output to provide extra power to your camera, allowing you to work longer., 16:10 aspect ratio Contrast ratio of 800:1 Brightness of 2000cd/m² Wide viewing angle of 170 degrees Viewing without colour and contrast distortion, ideal for viewing from different angles Includes HDMI and 3G SDI inputs and outputs with loop through functionality, as well as a DB 9 port and DC 12V power input Touchscreen controls Supports two NP F batteries or mains power, 8 VDC output for powering a camera Custom 3D LUT support Includes an SD card slot to load up to 50 custom LUTs for accurate colour assessment Support for different colour spaces Compatible with Rec.709, DCIP3, and BT2020 for accurate colour reproduction in various media and output formats Advanced image evaluation tools: with features such as Anamorphic mode, Waveform, Vector, Histogram, RGB Histogram, Embedded Audio, Focus Peaking, Zoom, Zebra, and Safe Frames. Equipped with 1/4" 20 thread for mounting on magic arms or tripods Three customisable buttons on top of the monitor for quick access to frequently used functions 3.5mm headphone jack for audio monitoring Suitable for both indoor and outdoor use thanks to ultra bright screen Built in Tally indicators (Red, Green, Yellow)
