Godox WMicS2 Kit 2 UHF Wireless Microphone System

English description below
Godox WMicS2 Kit 2 UHF Trådløst mikrofonsystem

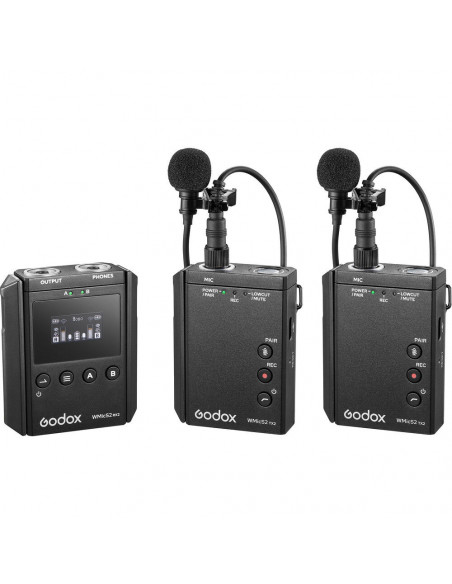

WMicS2 er et trådløst system med to sendere med slips rørmikrofoner og en dobbelt kanal receiver. Designet specielt til mobile journalister, videografister og vloggere, det giver pålidelig transmission af klar lyd op til 200 meter over 96 valgbar UHF frekvenser direkte til dit kamera, mixer eller smartphone med en 3,5 mm port. Dette system tilbyder en komplet løsning til optagelse af dialoger, interviews eller foredrag med plug and play operation til nem brug.

Klipset på transmitter har en indbygget mikrofon og en 3,5 mm port for de medfølgende omnidirectional slips pin mikrofoner, der kan knyttes til en krave eller skjorte. Du kan også optage backup lyd via sendernes TF-kort slots, så du kan optage bekymre dig gratis lyd. Indbygget funktioner såsom et lavt snit filter og mute kan styres via knapperne.

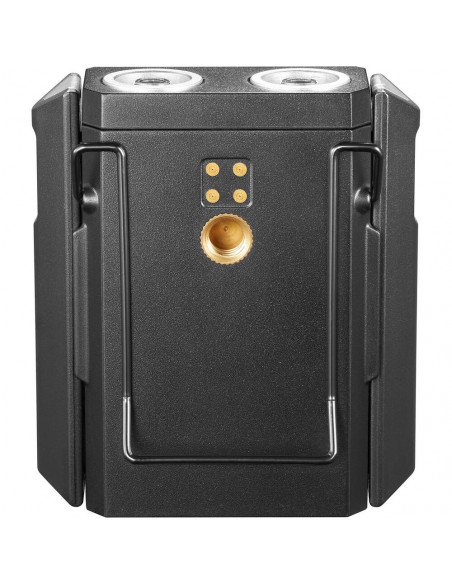

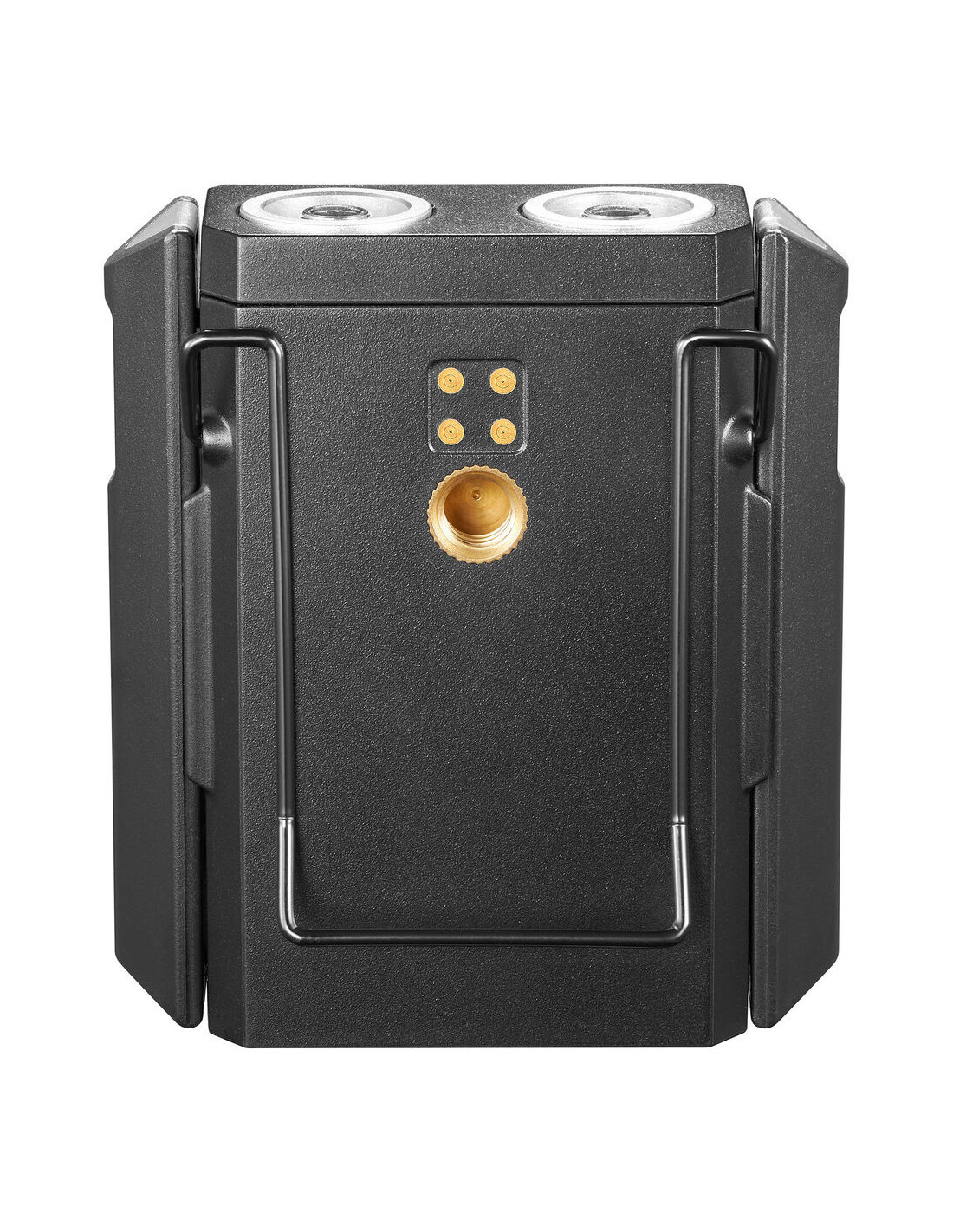

Den dobbelte kanal receiver kan optage i både mono og stereo mode. Begge enheder leveres med bageste clips og magnetiske mounts skal være diskret fastgjort til videografen eller emnet. De har også 1/4" 20 tråde, der skal monteres på kompatible kolde skoadaptere. Interne 770mAh lithium batterier power alle komponenter og en medfølgende kasse genoplader dem, når de er tomme. To USB-kabler og to skumforruder til sendere er også inkluderet.

WMicS2 er udstyret med en OLED display og avancerede funktioner såsom en skærm flip, realtid overvågning, dæmpe knap og 10 niveau lydstyrke control, giver selv begyndere fuld control over lyden.

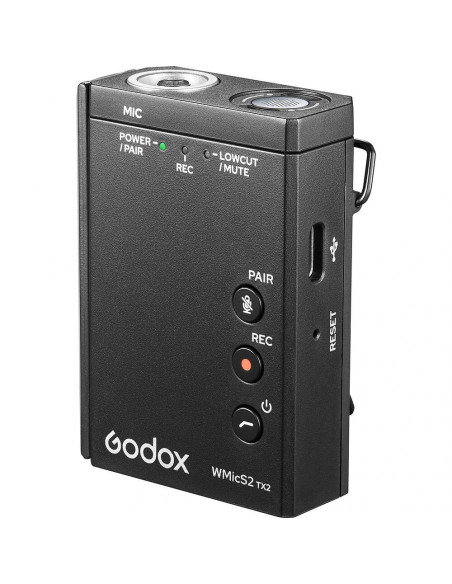

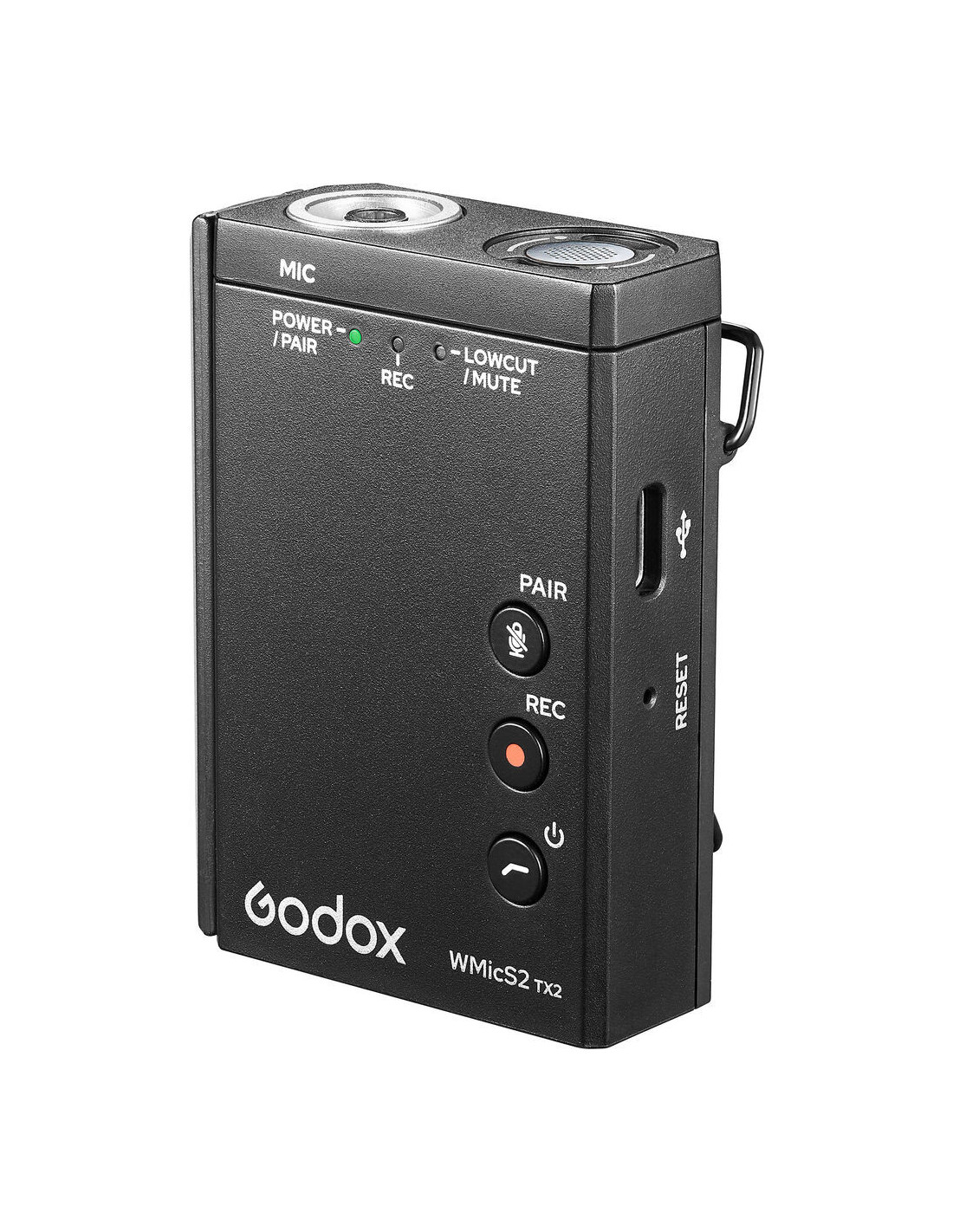

Model: WMicS2 TX2

Gruppe: A/B
Kanal: 96 (gruppe A: 48; Gruppe B: 48)
RF Frekvensområde: 514.56MHz 553.92MHz
Lydfrekvensområde: 40 Hz 18 KHz
Lydforsinkelse: 12ms
Lydindgang: 3,5 mm
Lithium batterikapacitet: 770mAh
Type C Inputparametre: 5V/0.4A
Arbejdstemperaturområde: 10~45°C
Modtagerafstand: Barrierefri modtagerafstand: 200m, Transporteret modtagerafstand: 60m
Signalstøjforhold: ≈70dB
Dimension: 65,8x50.4x20.5mm (Antenna længde:65mm)

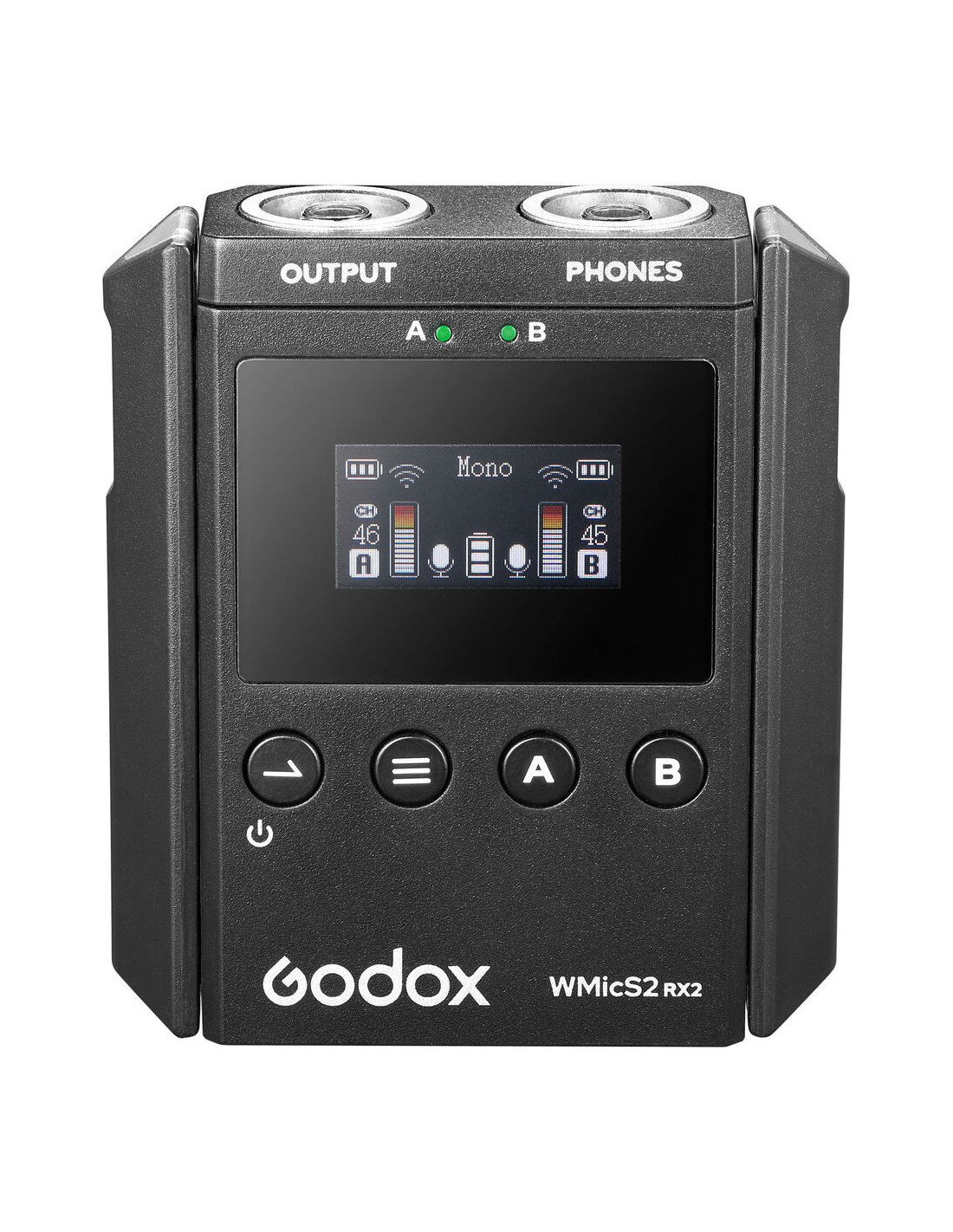

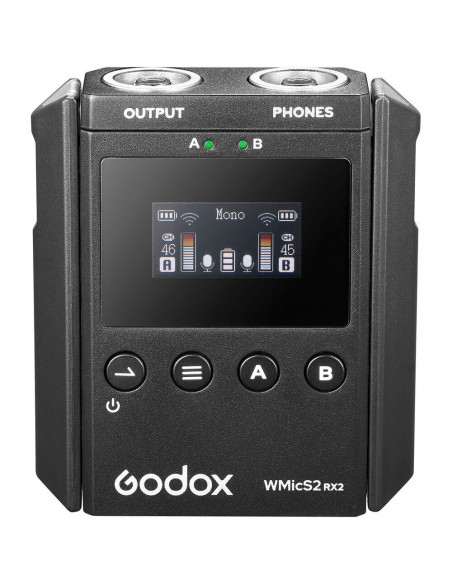

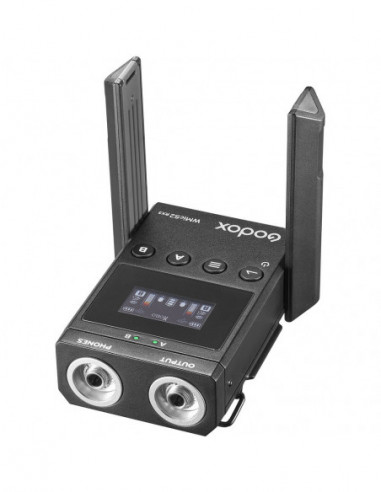

Model: WMicS2 RX2

Gruppe: A/B
Kanal: 96 (gruppe A: 48; Gruppe B: 48)
RF Frekvensområde: 514.56MHz 553.92MHz
Lydfrekvensområde: 40 Hz 18 KHz
Lydforsinkelse: 12ms
Lydindgang: 3,5 mm
Lithium batterikapacitet: 770mAh
Type C Inputparametre: 5V/0.4A
Arbejdstemperaturområde: 10~45°C
Modtagerafstand: Barrierefri modtagerafstand: 200m, Transporteret modtagerafstand: 60m
Signalstøjforhold: ≈70dB
Modtag følsomhed: 95dBm
Forvrængning: under 3%
Dimension: 65,8x58.4x20.5mm (Antenna længde:65mm)

Model: WM C

Lithium batterikapacitet: 10000mAh
Type C Inputparametre: 5V/0.4A
Arbejdstemperaturområde: 10~45°C
Dimension: 185.8x84.2x42mm (Antenna længde:65mm)


2x WMicS2 TX2
1x WMicS2 RX2
1x UHF Opladnings tilfælde WM C
2x Forrude
3x Tilbage- klip
3x magnetisk plade
1x Type C til Type C-kabel
1x 3,5 mm TRS TRRS audio Connect kabel
1x 3,5mm TRS Audio connect kabel
1x Triple hoved Type C til USB kabel
1x rem til ladekassen
2x Omnidirectional Lavalier mikrofon LMS 12B AXL


Godox WMicS2 Kit 2 UHF Wireless Microphone System
The WMicS2 is a wireless system with two transmitters with tie pipe microphones and a dual channel receiver. Designed specifically for mobile journalists, videographers and vloggers, it provides reliable transmission of clear sound up to 200 metres over 96 selectable UHF frequencies directly to your camera, mixer or smartphone with a 3.5mm port. This system offers a complete solution for recording dialogues, interviews or lectures with plug and play operation for easy use.

The clip on transmitter features a built in microphone and a 3.5mm port for the included omnidirectional tie pin microphones that can be attached to a collar or shirt. You can also record backup audio via the transmitters' TF card slots, so you can record worry free audio. Built in features such as a low cut filter and mute can be controlled via the buttons provided.

The dual channel receiver can record in both mono and stereo mode. Both units come with rear clips and magnetic mounts to be discreetly attached to the videographer or subject. They also have 1/4" 20 threads to be mounted on compatible cold shoe adapters. Internal 770mAh lithium batteries power all components and an included case recharges them when empty. Two USB cables and two foam windshields for the transmitters are also included.

The WMicS2 is equipped with an OLED display and advanced features such as a screen flip, real time monitoring, mute button and 10 level volume control, giving even beginners full control over the sound.
Model: WMicS2 TX2

Group: A/B
Channel: 96 (Group A: 48;Group B: 48)
RF Frequency Range: 514.56MHz 553.92MHz
Audio Frequency Range: 40Hz 18KHz
Sound Delay: 12ms
Audio Input Port: 3.5mm
Lithium Battery Capacity: 770mAh
Type C Input Parameters: 5V/0.4A
Working Temperature Range: 10~45℃
Receiving Distance: Barrier free receiving distance: 200m, Barriered receiving distance: 60m
Signal Noise Ratio: ≈70dB
Dimension: 65.8x50.4x20.5mm (Antenna length:65mm)


Model: WMicS2 RX2

Group: A/B
Channel: 96 (Group A: 48;Group B: 48)
RF Frequency Range: 514.56MHz 553.92MHz
Audio Frequency Range: 40Hz 18KHz
Sound Delay: 12ms
Audio Input Port: 3.5mm
Lithium Battery Capacity: 770mAh
Type C Input Parameters: 5V/0.4A
Working Temperature Range: 10~45℃
Receiving Distance: Barrier free receiving distance: 200m, Barriered receiving distance: 60m
Signal Noise Ratio: ≈70dB
Receive Sensitivity: 95dBm
Distortion: Below 3%
Dimension: 65.8x58.4x20.5mm (Antenna length:65mm)

Model: WM C

Lithium Battery Capacity: 10000mAh
Type C Input Parameters: 5V/0.4A
Working Temperature Range: 10~45℃
Dimension: 185.8x84.2x42mm (Antenna length:65mm)


2x WMicS2 TX2
1x WMicS2 RX2
1x UHF Charging case WM C
2x Windscreen
3x Back clip
3x Magnetic Plate
1x Type C to Type C cable
1x 3.5mm TRS TRRS audio Connect Cable
1x 3.5mm TRS TRS Audio connect Cable
1x Triple head Type C to USB Cable
1x Strap for the Charging Case
2x Omnidirectional Lavalier Microphone LMS 12B AXL
