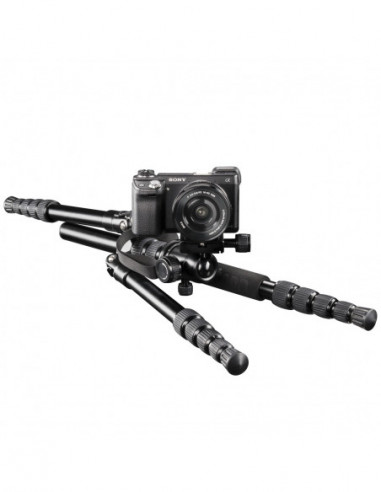

Mantona travel tripod DSLM with ball head
- compact and light aluminium travel tripod with ball head
- ball head with panorama scale and two bubble levels
- small packing dimensions and very light
- also usable as monopod

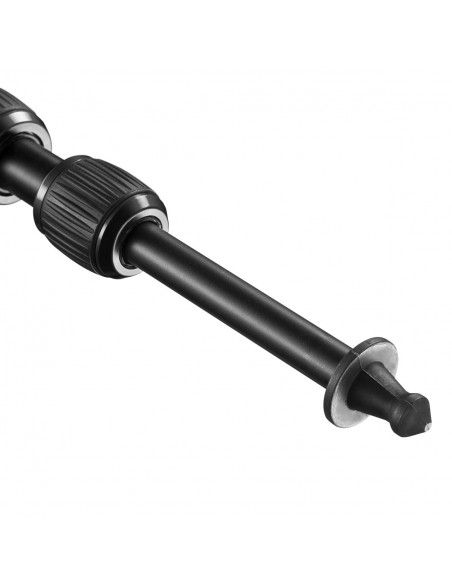

- tripod legs with rubber feet and spikes
- max. load bearing capacity: approx. 5kg
- incl. tripod bag
Compact and light aluminium travel tripod

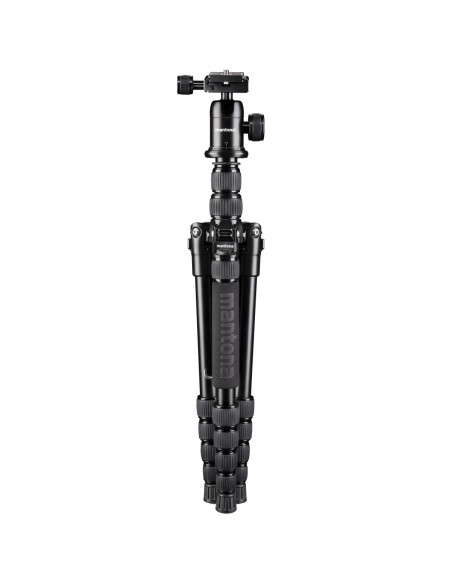

The travel tripod DSLM Travel from mantona is an extremely compact tripod, ideally suitable for travels. With a total weight of approx. 1300g this aluminium tripod is light and can be transported in the supplied bag without any problems. The leg angles can be adjusted up to 180°, so that you can fold it up for transportation to a compact length of 35 cm and achieve even higher flexibility in use. Even ground level shots are thus no problem. Four leg segments with quick-action locks enable uncomplicated height adaptation as well as quick set-up and disassembly. The tripod can be extended to a height of 143 cm. Rubber coated tripod legs ensure high stability.

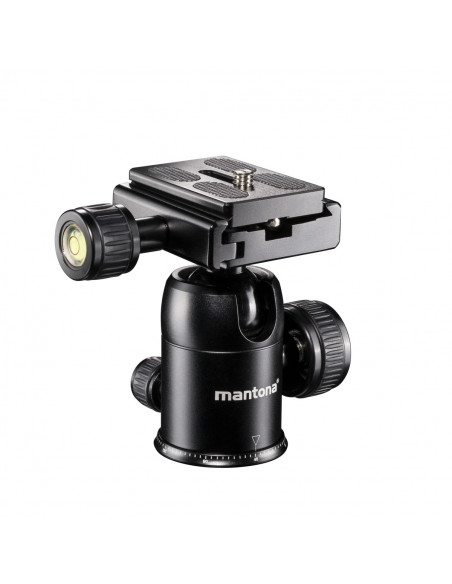

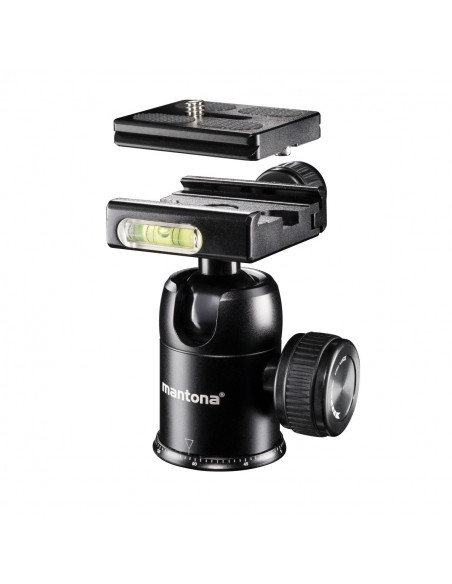

Ball head with two bubble levels
Particularly convenient: The tripod can also be used as a monopod. The monopod can be extended by means of the extendable two stage centre column. The centre column has a weighting hook, which can be used to hang up weights for stabilizing the tripod. The ball head is equipped with a convenient panorama scale, changing to portrait format is possible without any problems. For exact alignment the ball head has two convenient bubble levels - one for portrait and one for landscape format. With a ¼ inch and 3/8 inch tripod screw the camera can either be mounted with a quick-release plate to the head or directly on the tripod.
Ideal for DSLMs
With a maximum load bearing capacity of approx. 5 kg, the tripod is the ideal solution for use with system cameras.
| Product Type | Photo Tripod |
| Material | Aluminium |
| Product Color | Black |
| Weight | 1313g |
| Max. Capacity | 5kg |
| Max. Load Tripod | 5000g |
| Weight Tripod without Head | 1016g |
| Weight Tripod incl. Head | 1313g |
| Pack Measure | 35cm |
| Material Tripod Legs | Aluminium |
| Number Tripod Legs | 3St |
| Leg Locking | Ring lock |
| Number of Leg Segemts | 5 |
| Max. Working Height | 1430mm |
| Max. Height Tripod without ball head | 1340mm |
| Height Tripod without head | 1100mm |
| Max. working height one leg function without head | 1400mm |
| Max. working height one leg function with head | 1490mm |
| min. work height reserve | 0mm |
| Diameter 1st Leg Segment | 22mm |
| Diameter 2nd Leg Segment | 19mm |
| Diameter 3rd Leg Segment | 16mm |
| Diameter 4th Leg Segment | 13mm |
| Diameter 5th Leg Segment | 10mm |
| Number of Gummed Leg Segments | 1St. |
| Leg Angle Adjustment | 3 |
| Spreader Variation | None |
| Length middle column | 40cm |
| Horizontal Central Column | No |
| 2nd Central Column included | No |
| Number of Spirit Levels on Ballhead | 0 |
| Tripod Head | Ball head |
| Max. Load Tripod Head | 5000g |
| Height Ball Head | 90mm |
| Weight Ball Head | 297g |
| Camera connection | 1/4 inch |
| Number of Spirit Levels on Ballhead | 2 |
| Diameter Ball in Ball Head | 25mm |
| Outside Diameter Spherical Head Housing | 38mm |
| Length quick change plate | 50mm |
| Width Quick Change Plate | 39mm |
| Height quick release plate | 8mm |
| Weight quick change plate | 30g |
| Compatible quick change systems | Arca Swiss, Montana DSLM travel, Montana kaledo mini |
| Spikes | Yes |
| Transport Length | 350mm |
| Wrist Strap | Yes |
| Tripod Connection | 3/8 inch |
| Girth | 838mm |
| Height of Packaging | 108mm |
| Length of Packaging | 398mm |
| Packaging Material | Carton |
| Packaging with Euro Hole | No |
| Transport Length | 350mm |
| Weight incl. Packaging | 1620g |
| Width of Packaging | 112mm |
- 1x mantona travel tripod DSLM Travel, 143cm, ideal for DSLMs, incl. ball head with panorama scale and two bubble levels, quick-release plate, bag
