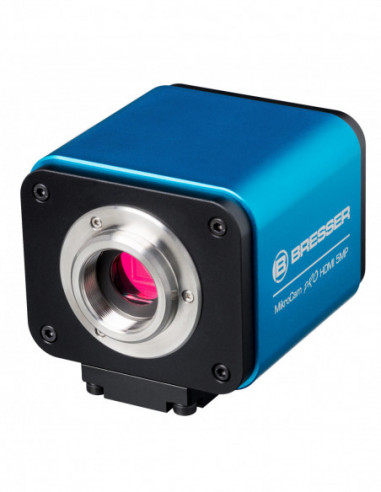

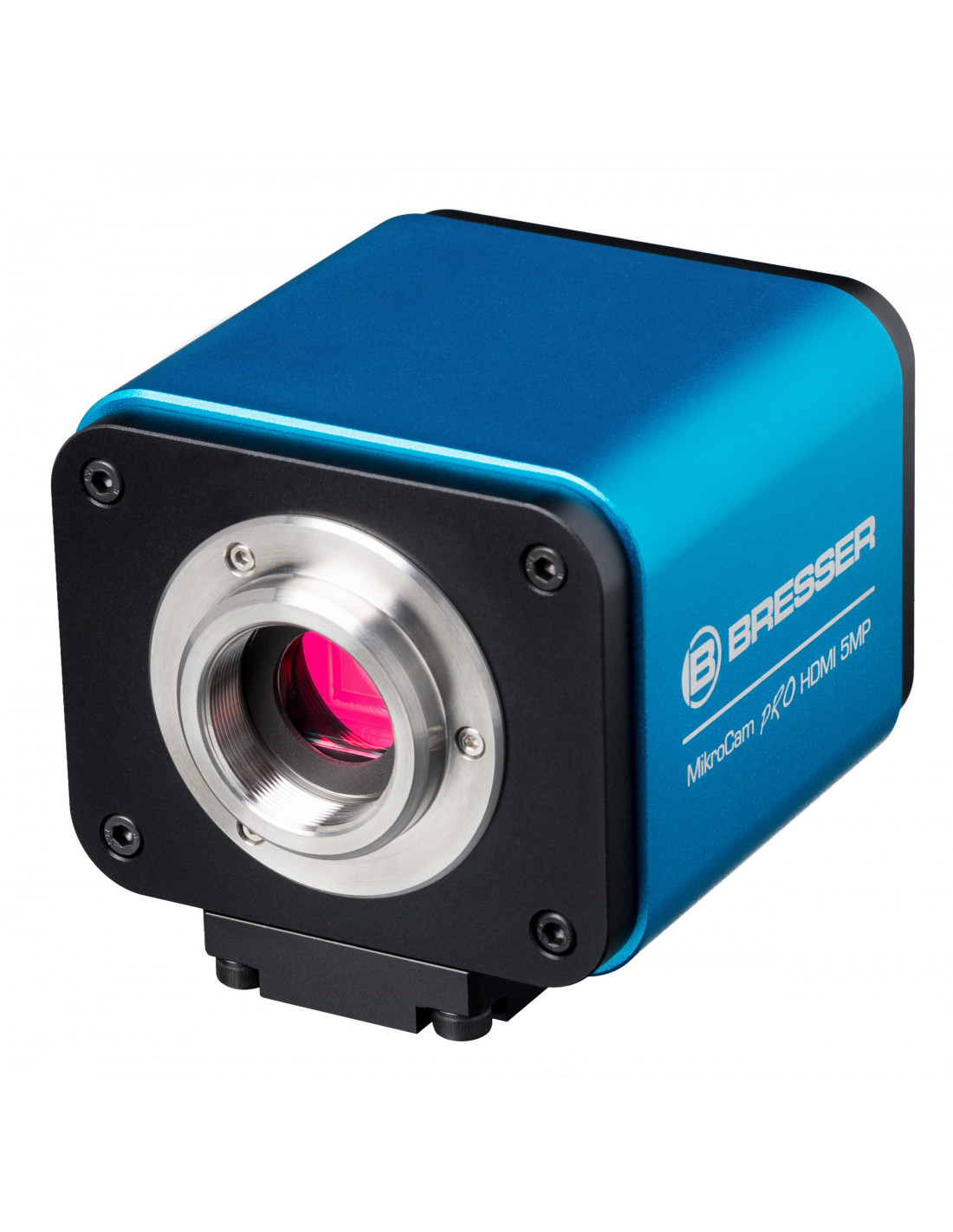

MikroCam PRO HDMI camera 5MP

The BRESSER MikroCam Pro HDMI delivers excellent image quality with ease of use. The microscopic image is transferred in Full HD resolution and without delay to a HDMI monitor or TV screen. An optional 11'' HDMI screen is available under item code 5914110 and can be mounted on the camera directly. It gives brilliant images with high contrast.
_x000D_
_x000D_ Microscope images and video can now be stored on a SD card with high resolution (up to 5 MP). The Sony Sensor gives excellent image quality.
_x000D_
_x000D_ The camera can be controlled with the included USB mouse directly through the on screen display. The on screen functionality now includes a measuring function as well, so the MikroCam Pro HDMI 5MP upgrades your existing trinokular microscope to a fully equipped digital measuring microscope.
_x000D_
_x000D_ With the WiFi module, the camera can also supply the images in a wireless network. Due to this, a permanent connection to a PC via USB is not provided. But the professional software MikroCamLabII is still included with the camera for further image analysis after transferring the stored on SD card.
_x000D_
_x000D_ Software included in the following languages (for further image analysis - no direct PC connection via USB provided)_x000D_

_x000D_
• English
_x000D_
• German
_x000D_
• French
_x000D_
• Polish
_x000D_
• Russian
_x000D_
• Turkish
_x000D_
• Indonesian
_x000D_
• Japanese
_x000D_
• Chinese (simplified)
_x000D_
• Chinesisch (traditional)
_x000D_

_x000D_ The software includes numerous functions for image processing_x000D_

_x000D_
• measurement function* (with live image): distance, angle, surface area (polygon, circle, ellipsoid)
_x000D_
• Image Stacking from video files
_x000D_
• HDR (high dynamic range)
_x000D_
• fluorescence microscopy: fluorophore data for common dyes can be found in the software
_x000D_
• Batch save
_x000D_

_x000D_ *for the use of the included measurement functionality a object micrometer slide is necessary, e.g. BRESSER item no. 5916720 (1/10mm and 1/100mm) or 5916710 (1/100mm).
_x000D_
_x000D_ FEATURES_x000D_

_x000D_
• HDMI-connection on a monitor or TV
_x000D_
• brilliant full HD images via HDMI (60 frames / sec) or WiFi (up to 25 frames / sec)
_x000D_
• measure specimens via on screen display - no PC necessary
_x000D_
• WDR (wide dynamic range) function included
_x000D_

_x000D_ SYSTEM REQUIREMENTS_x000D_

_x000D_
• Windows 10 or 11
_x000D_
• Intel i3, i5, i7 or i9 CPU from the 6nd generation or
_x000D_
• AMD Ryzen CPU
_x000D_
• Optical Disk Drive or internet connection for software download
_x000D_
• USB 2.0
_x000D_

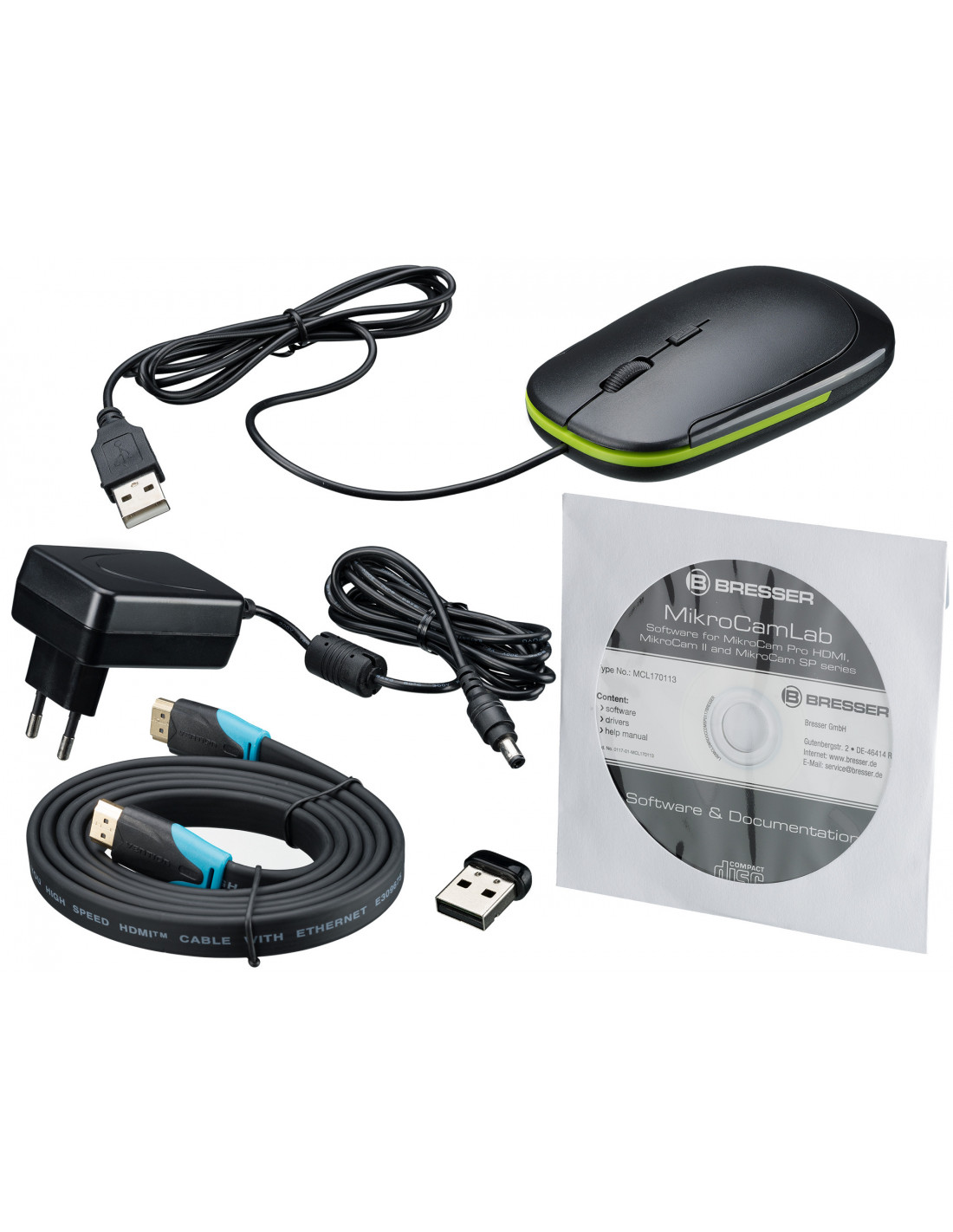

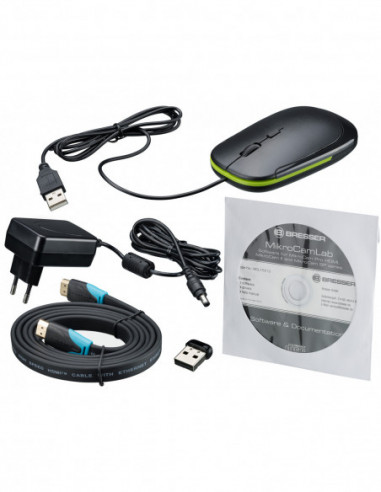

_x000D_ SCOPE OF DELIVERY_x000D_

_x000D_
• MikroCam Pro HDMI with C-Mount
_x000D_
• AC adapter
_x000D_
• Mouse
_x000D_
• HDMI cable
_x000D_
• WiFi dongle
_x000D_
• Software (CD-ROM)
_x000D_
