BRESSER MikroCam SF Full HD Microscope Camera

The BRESSER MikroCam SF cameras are perfect for capturing high-quality photos and videos through a microscope. They make documenting and sharing your observations with others easy. Thanks to the high frame rate of the MikroCam SF series, you can record smooth and fluid videos. The built-in Sony sensors deliver excellent image quality, vibrant colours, and impressive dynamic range.
_x000D_
_x000D_ The included software supports multiple languages, including German, English, French, Spanish, Italian, Polish, and Turkish.
_x000D_
_x000D_ The MikroCamLabII software offers a wide range of features. Essential settings like exposure time and sensitivity can be adjusted automatically or manually.
_x000D_
_x000D_ One of the standout features is focus stacking, which increases depth of field, as well as tools for creating mosaics and panoramas. Both functions can be used with a pre-recorded image series or directly in live view. With live focus stacking (EDF), the MikroCamLabII software can produce razor-sharp images in just minutes. As you adjust the focus on your microscope, the software automatically builds a perfectly sharp final image—no extra steps needed. This allows you to achieve stunning, high-quality results in no time.
_x000D_
_x000D_ The built-in measurement function* helps you determine dimensions or overlay a scale. With just a few clicks, you can measure distances, angles, or areas. Advanced tools even allow for precise measurements of circles (including area and radius) and complex polygons.
_x000D_ Measurements can be performed on both captured images and live view. The MikroCamLabII software also includes powerful algorithms for automated image analysis, such as particle counting and surface evaluation.
_x000D_

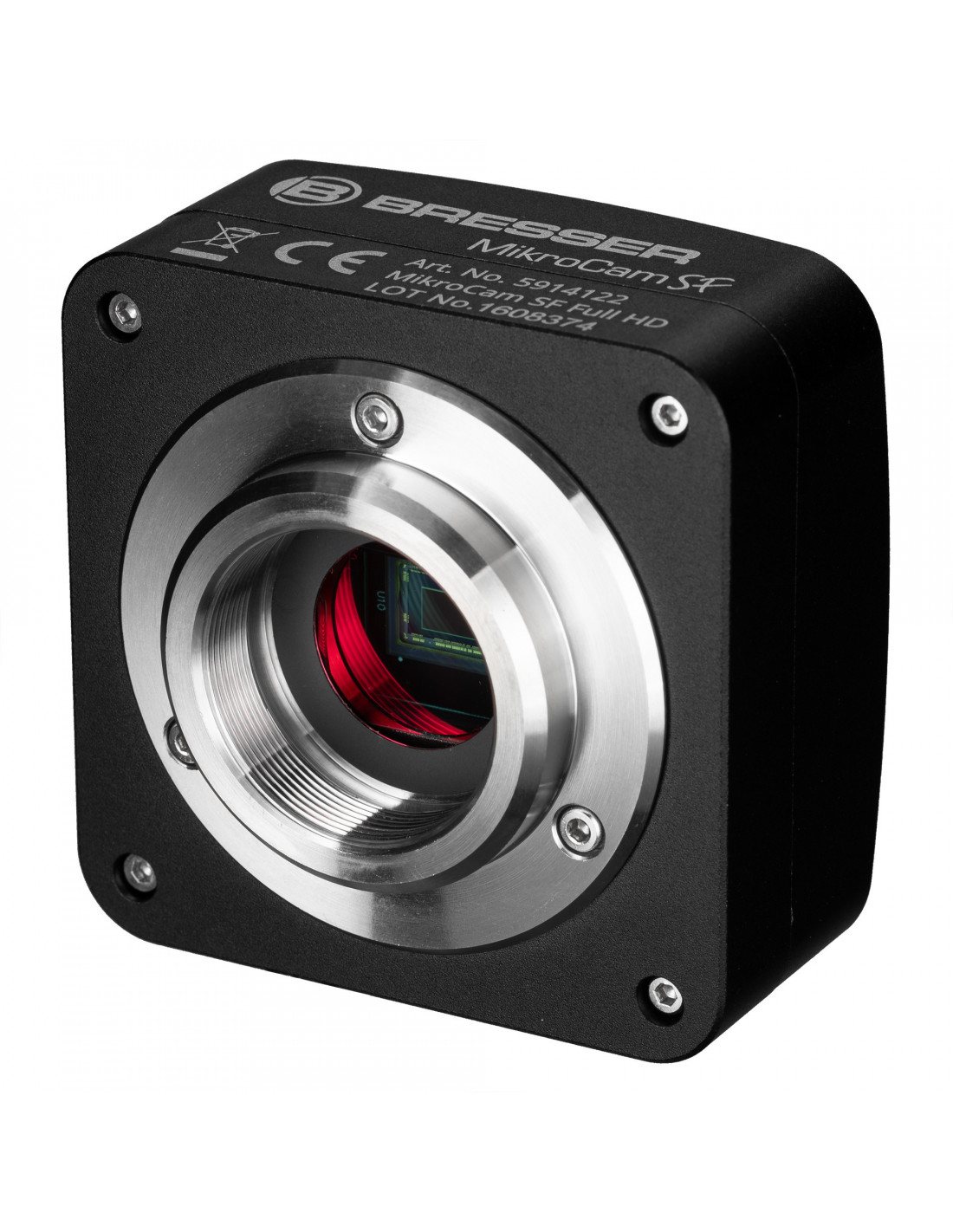

_x000D_ The camera body features a C-mount thread, making it compatible with microscopes from a variety of manufacturers. If you're unsure which MikroCam model is best suited for your microscope, we're happy to help.
_x000D_

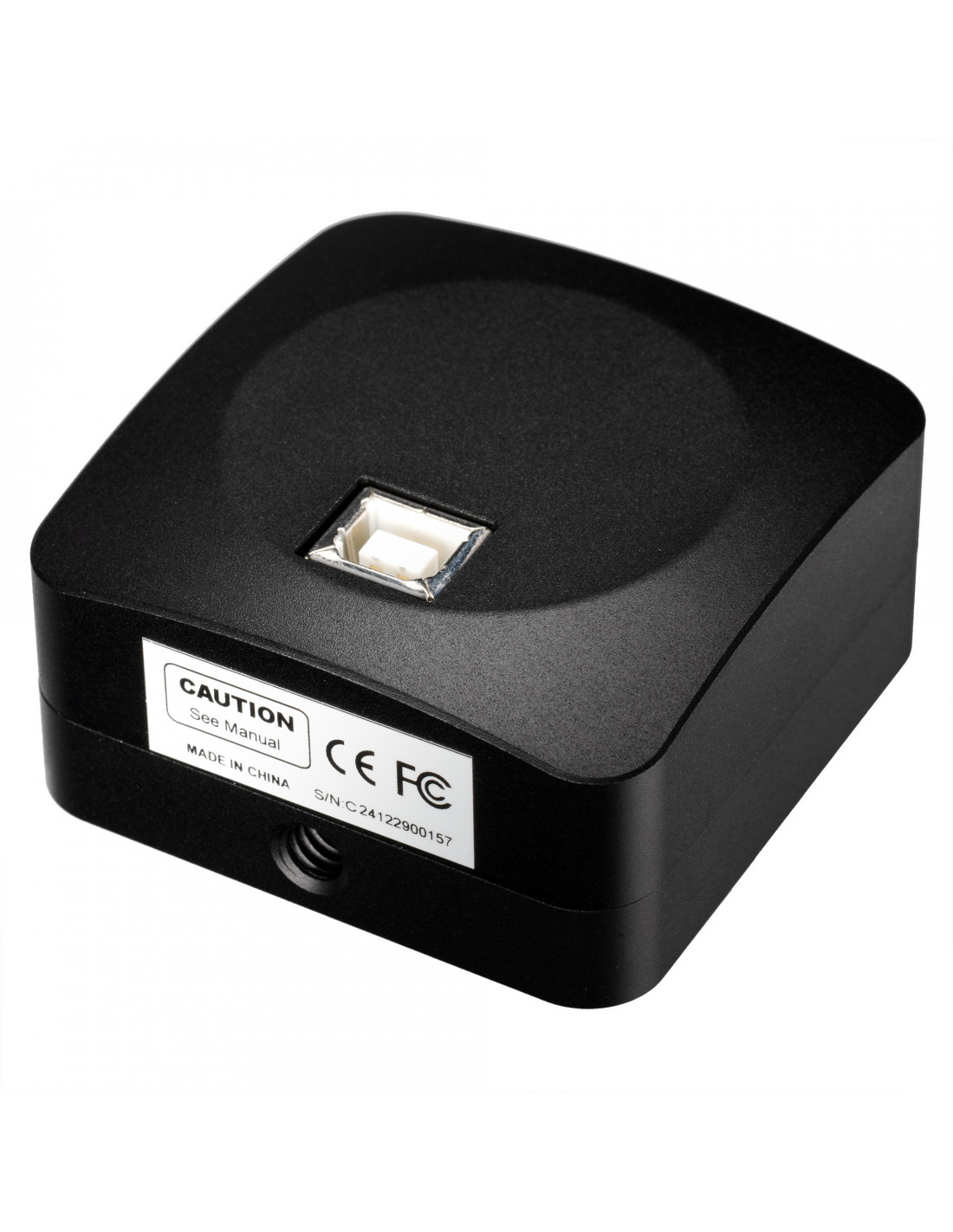

_x000D_ For devices with a 23.2 mm mount, an optional 0.5x reduction lens is available (Art. No. 5914015 (fixed), Art. No. 5914005 (variable)). For specialised applications, such as use with a C-mount lens, the camera can also be mounted using the built-in 1/4" tripod thread.
_x000D_
_x000D_ *To calibrate the measurement function, a suitable measuring tool is required, such as Art. No. 5916710 or 5916720.
_x000D_
_x000D_
_x000D_ FEATURES
_x000D_
_x000D_

_x000D_
• 1920x1080 pixel sensor (Full HD), 5.57 x 3.13 mm (1/2.8")
_x000D_
• Frame rate: up to 30 fps
_x000D_
• Durable, high-quality metal housing
_x000D_
• Advanced software features, including measurement tools, focus stacking (for combining multiple images to increase depth of field), and mosaic mode (for capturing larger fields of view)
_x000D_
• Photo and video recording, including time-lapse mode
_x000D_
• Compatible with microscopes from all manufacturers
_x000D_

_x000D_
_x000D_
_x000D_ SYSTEM REQUIREMENTS
_x000D_
_x000D_

_x000D_
• Windows 10 or 11
_x000D_
• Intel i3, i5, i7, or i9 processor (6th generation or newer) or
  _x000D_ AMD FX or Ryzen processor (1st generation or newer)
_x000D_
• Internet connection required for software download
_x000D_
• Minimum USB 2.0
_x000D_

_x000D_
_x000D_

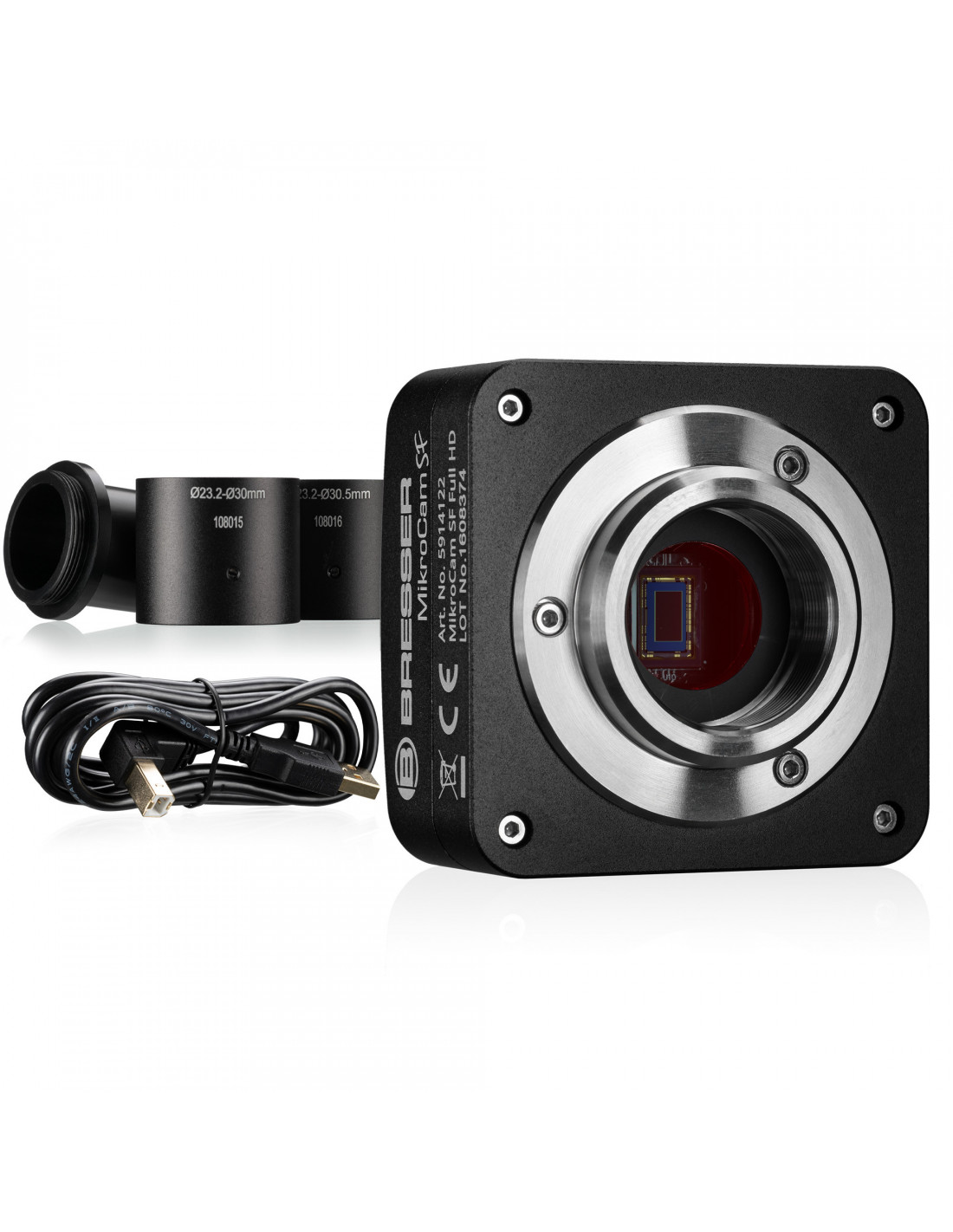

_x000D_ SCOPE OF DELIVERY
_x000D_
_x000D_

_x000D_

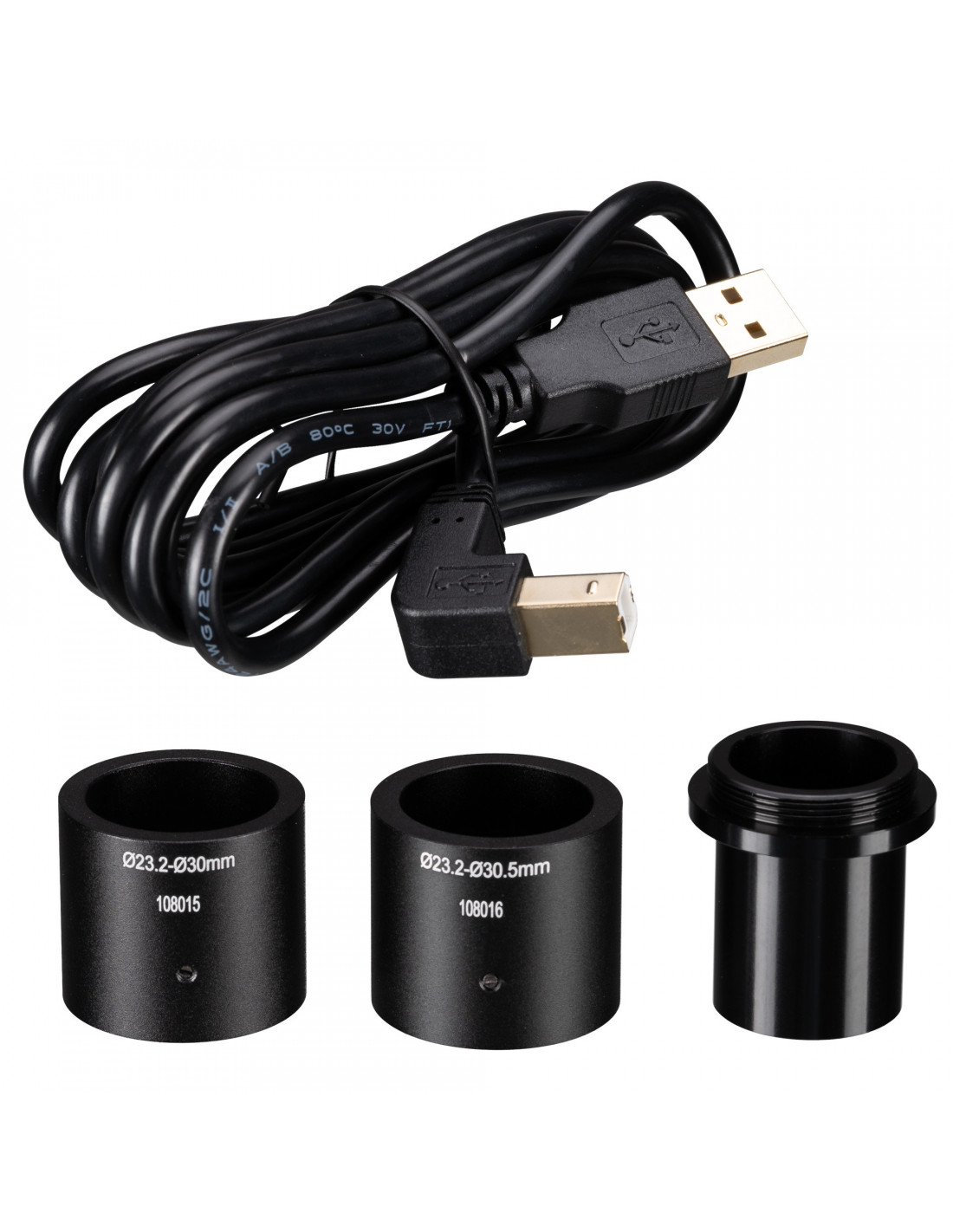

• Camera head
_x000D_
• USB 2.0 cable (approx. 1.8 m)
_x000D_
• Plug adapter for 23.2 mm, 30 mm, and 30.5 mm eyepiece tubes
_x000D_
• CamLabLite software (download link), available in the following languages: German, English, French, Spanish, Catalan, Italian, Turkish, Russian, Polish, Portuguese, Indonesian, Chinese, and Bulgarian
_x000D_

_x000D_ _x000D_
