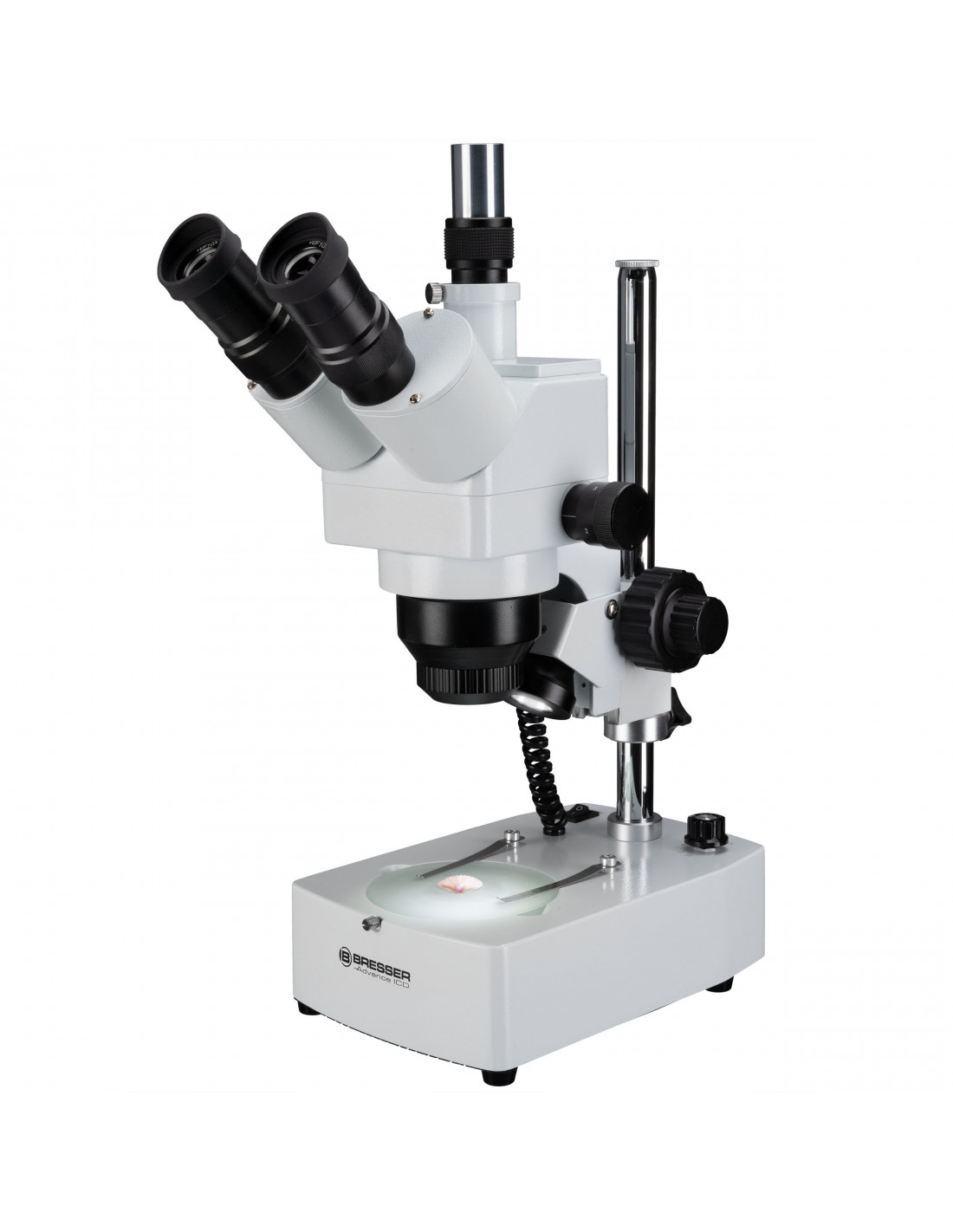

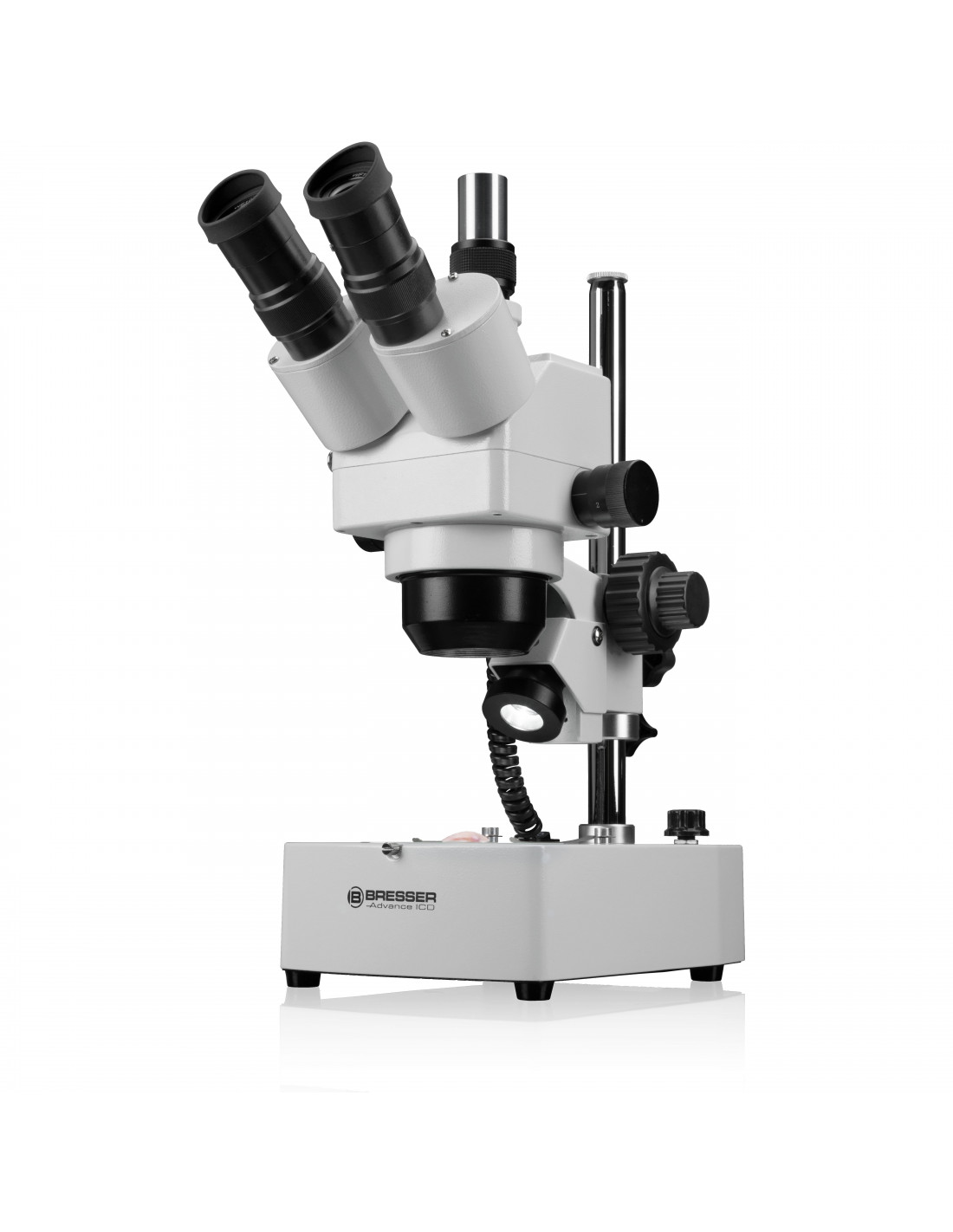

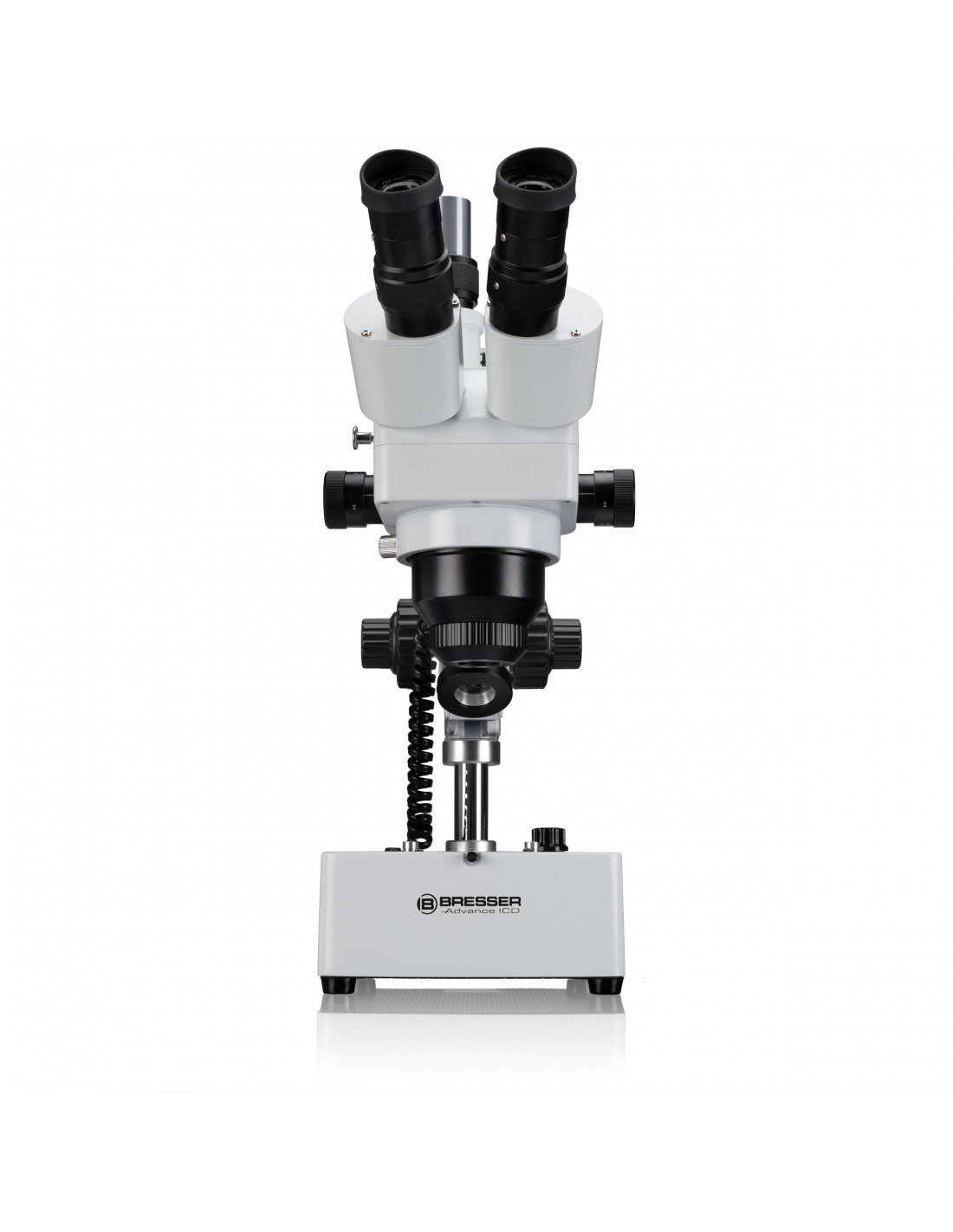

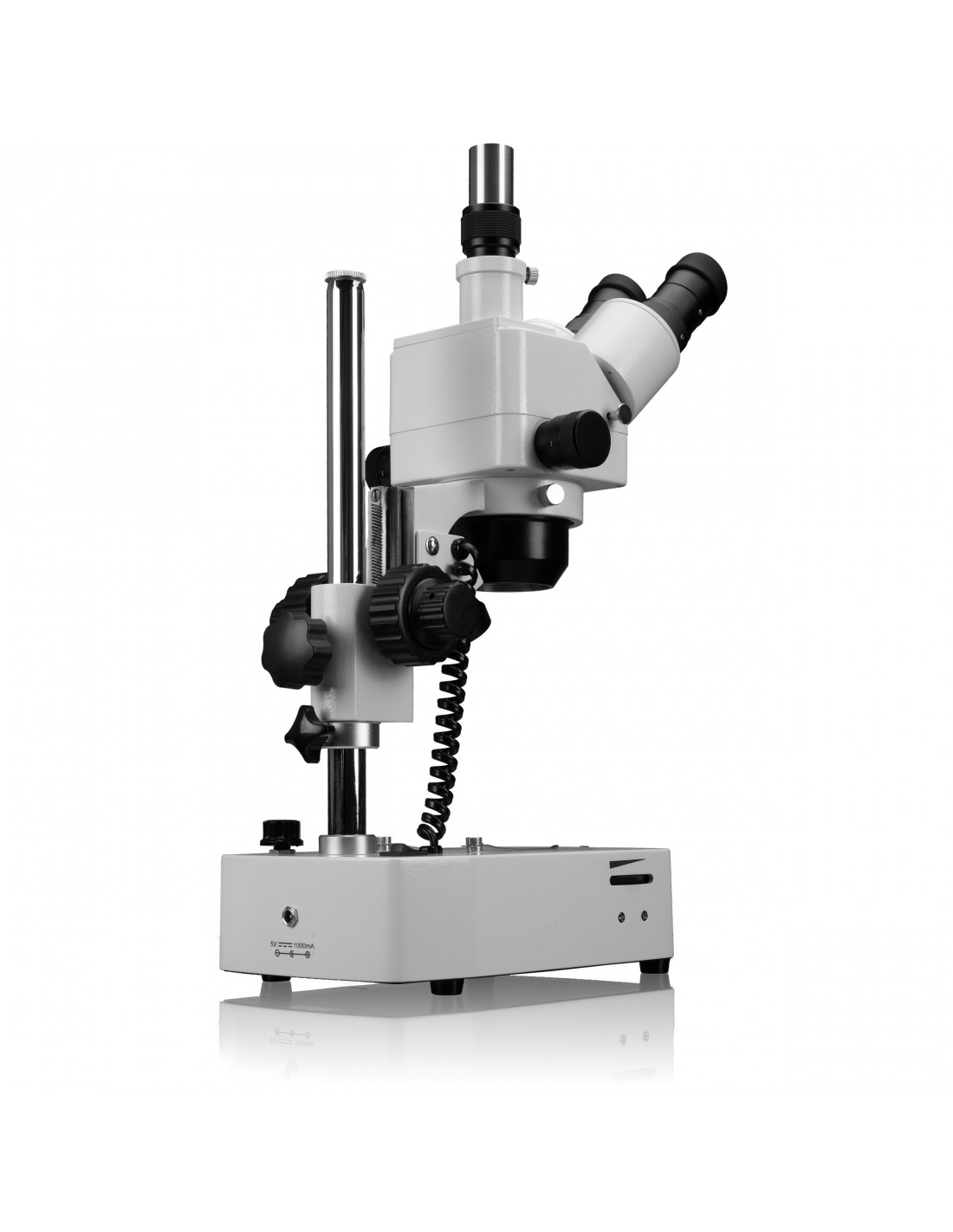

BRESSER Advance ICD 10x-160x Zoom Stereo Microscope

The zoom stereo microscope BRESSER Advance ICD is suitable for a wide variety of objects. Because of the Greenough design with two tilted objectives, you can view the sample in 3D. The three-dimensional view is also very helpful when working under the microscope, e.g. when soldering, dissecting or preparing a sample.
_x000D_
_x000D_ The precise zoom enables you to view your sample in a wide range of magnifications from 1x to 4x (zoom ratio 4.0). When zooming, only slight refocussing is necessary. To do this, the Advance ICD microscope is equipped with a very precise, coaxial coarse and fine focus. The fine focus is especially helpful when using high magnifications or for imaging. When doing focus stacking with our MikroCam cameras (optional) the fine focus is also a big help.
_x000D_
_x000D_ The interpupillary distance of the eyepiece pair is adjustable. Both eyepiece holders are equipped with diopter adjustment, which allows users with bad eyesight to compensate up to 8 dpt. difference between left and right eye. The 10x wide field eyepieces have field number (FN) 22 and are equipped with soft rubber eyecups. The microscope head can be moved on the long rod of the stand, which allows you to observe big samples up to a size of 22 cm.
_x000D_ The angle of the bright LED reflected light illumination can be adjusted as necessary. The extra bright and even LED transmitted light provides a flat background when viewing transparent samples. The switch allows you to select reflected light, transmitted light or a combination of both to match your requirements. Brightness is adjustable with the dimmer. The bright light does not heat up, which allows you to observe also living specimens over a longer period of time. The long lasting LED is powered by a 5V AC adapter (EU/UK). The power cable comes with a USB plug.
_x000D_
_x000D_ Fully equipped, the Advance ICD covers an exceptionally wide range of magnifications and is therefore suitable for a variety of tasks. Besides the included 2x lens there is also a selection of other auxiliary objectives available. With these, you are able to adjust magnification, working distance and depth of focus according to your needs.
_x000D_
_x000D_ Magnifications in basic setting (no optional accessories):
_x000D_ 10x eyepieces: 10x – 40x
_x000D_ 10x eyepieces plus 2x auxiliary lens: 20x – 80x
_x000D_ 20x eyepieces: 20x – 80x
_x000D_ 20x eyepieces plus 2x auxiliary lens: 80x – 160x
_x000D_
_x000D_ (other magnifications are possible when using other auxiliary lenses and/or eyepieces)
_x000D_
_x000D_ The third tube is designed to permanently attach a camera. The image of the left eyepiece is diverted to the camera port with a lever/switch. We supply a selection of camera adapters for DSLR, mirrorless cameras and c-mount microscope cameras. This enables you to attach virtually any camera body as long as you have a model with interchangeable lens.
_x000D_
_x000D_
_x000D_ APPLICATION RANGE
_x000D_
_x000D_

_x000D_
• Quality control in industry
_x000D_
• Materials science
_x000D_
• Laboratory

_x000D_
• Botany, gardening, farming
_x000D_
• Hydrology, aquaculture, fishkeeping
_x000D_
• Insects, Entomology, pest control
_x000D_
• Plant physiology, raw food materials, medicinal herbs
_x000D_
• Schools, teaching
_x000D_

_x000D_
_x000D_ FEATURES
_x000D_
_x000D_

_x000D_
• Trinocular head with 2 eyepieces and camera port with switch
_x000D_
• Compatible with BRESSER MikroCam cameras and others
_x000D_
• 1x-4x stereo-zoom head
_x000D_
• 2x auxiliary lens
_x000D_
• Diopter adjustment on both eyepiece holders
_x000D_
• Adjustable interpupillary distance (52 – 72 mm)
_x000D_
• Bright LED light (reflected / transmitted)
_x000D_
• 2 different object plates for best contrast
_x000D_
• View samples of up to 22 cm height
_x000D_
• AC adapter Euro/UK (5V / 1000 mA) with USB
_x000D_
• Heavy build with metal stand
_x000D_
• Includes 2 pairs of widefield eyepieces
_x000D_

_x000D_
_x000D_ SCOPE OF DELIVERY
_x000D_
_x000D_

_x000D_
• Microscope
_x000D_
• 2 pairs of eyepieces (WF 10x / WF 20x)
_x000D_
• 2x auxiliar lens (1 pcs)
_x000D_
• 1 pair of rubber eyecups
_x000D_
• Object plate 94 mm (black / white)
_x000D_
• Glass object plate 94 mm (matte)
_x000D_
• AC adapter Euro/UK (5V / 1000 mA)
_x000D_
• Dust cover
_x000D_
• Printed manual
