BRESSER MikroCamII 9MP 4K 1 039 039 Microscope Camera

Capture 4K video with the BRESSER MikroCamII 9MP 4K microscope camera. The video can be up to 30 fps depending on the PC used. The camera uses a global shutter, which captures moving objects without distortion. The big image sensor (14.13 x 7.45mm) captures a big field of view. The high light sensitivity of the Sony® IMX305 CMOS-sensor produces excellent images even when using darkfield or phase contrast.
_x000D_
_x000D_ The BRESSER MikroCamLabII software includes a variety of useful functions, e.g. measuring in live mode (optional calibration slide needed), mosaic/stitching, focus stacking (for extended depth of field). All camera parameters (exposure time, gain, white balance) can be set manually.
_x000D_
_x000D_ Mosaic and focus stacking can be done in live mode, which gives instant results even for unexperienced users. The method is also much faster than the normal procedure where a set of images is rendered afterwards. To use the mosaic function in live mode, a crosstable / mechanical desk is highly recommended to move the sample.
_x000D_
_x000D_ The big camera sensor is not compatible with all microscope models. It might lead  to vignetting (dark edges). To compensate this, a 1.0x optical adapter (item code 5914001) is recommended.
_x000D_
_x000D_ This camera will not work with the ETD-201 stereo microscope as the microscope will illuminate only a part of the sensor. For this microscope, we recommend the model MikroCamII 12MP item code 5914912.
_x000D_
_x000D_ SPECIFICATIONS_x000D_

_x000D_
• modern Sony® IMX305 sensor 14,13mm x 7,45 mm (1'')
_x000D_
• 8,85 MP resolution (4096x2160 pixels)
_x000D_
• software included, which contains measuring, focus stacking, mosaic / stitching for results with bigger fields or extended focus depth
_x000D_
• capture images and video, incl. slow motion and timelapse
_x000D_
• 4K video with up to 30 fps
_x000D_
• big field of view
_x000D_
• Precisely machined metal housing
_x000D_
• compatible with numerous microscope models
_x000D_
• with c-mount connector, which is widely used.Compatible  with c-mount lenses.
_x000D_
• 1/4" connector, for photo tripods, clamps etc.
_x000D_
• Highspeed USB 3.0 port
_x000D_

_x000D_ SYSTEMANFORDERUNGEN_x000D_

_x000D_
• Windows 10 oder 11
_x000D_
• Intel i3, i5, i7 oder i9 Prozessor ab 6. Generation bzw.
_x000D_
• AMD Ryzen Prozessor
_x000D_
• Optisches Laufwerk oder Internetverbindung für Softwaredownload
_x000D_
• USB 3.0, 3.1
_x000D_

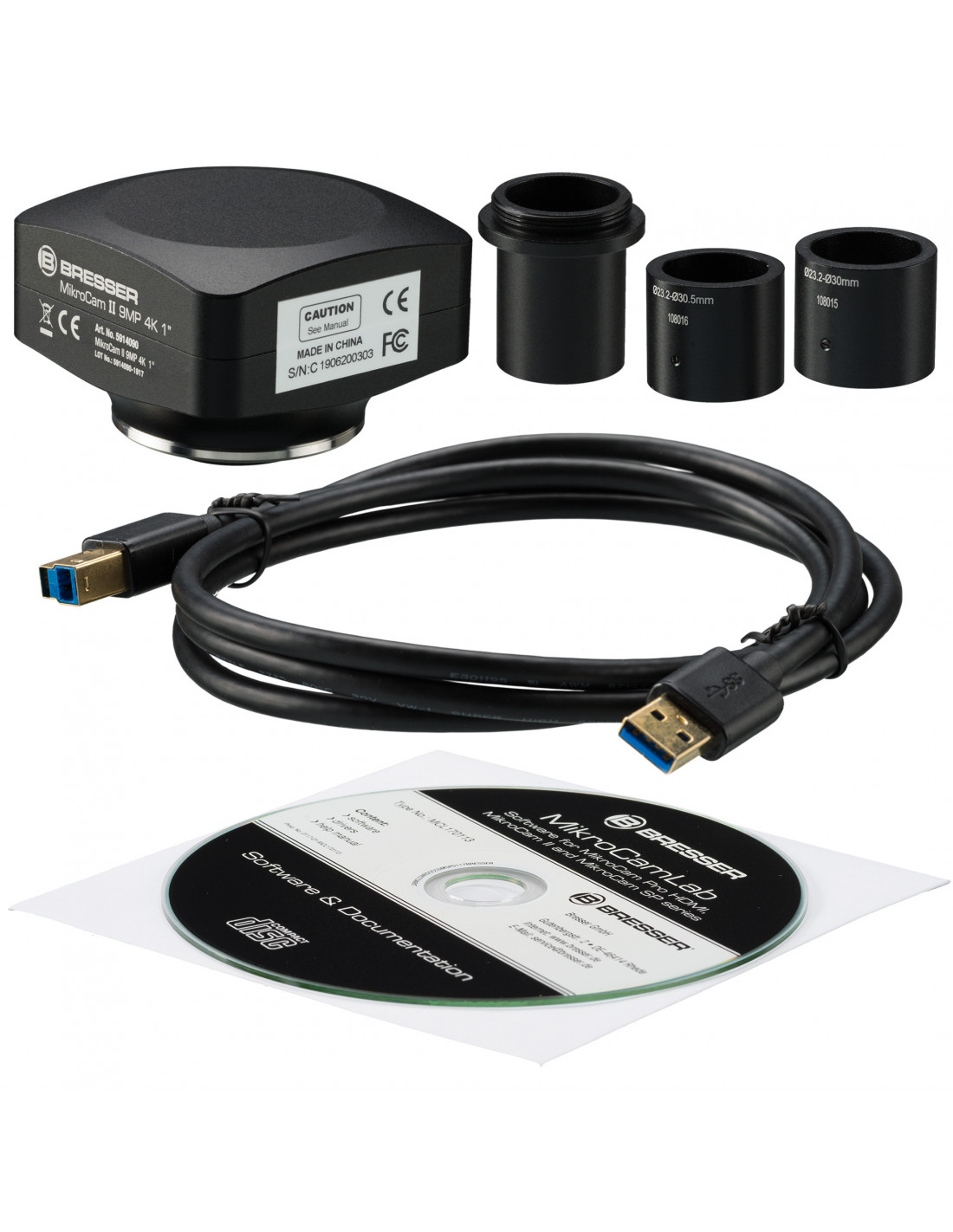

_x000D_ SCOPE OF DELIVERY_x000D_

_x000D_
• camera body
_x000D_
• USB 3.0 cable
_x000D_
• 3 adapters: 23.2mm  30.0 mm and 30.5 mm
_x000D_
• software CD (Windows)
_x000D_

_x000D_ _x000D_
