English description below
- 300 grader C Højtemp. dyse
- 25-punkts automatisk nivellering
- X-akse, Y-akse lineær guide
- Z-akse Dobbeltskrue med høj præcision
- Stærk trådfremføringskraft op til 70N
X-akse, Y-akse lineær guide X-aksen og Y-aksen bruger lineære styreskinner i stedet for remskinner med en bevægelsesnøjagtighed på ±0,02 mm, hvilket reducerer overfladestrukturen forårsaget af maskinrystning, hvilket gør udskrivning mere stabil og udskrivningsdetaljer finere. Z-akse Dobbeltskrue med høj præcision Z-aksen anvender dobbelt skruesynkron drift for at reducere udskrivningsslingrer, hvilket giver mere stabil drift og mindre nulstillingsfejl. Stærk trådfremføringskraft op til 70N Den nye dyse anvender en direkte ekstruder med dobbeltgear i metal, et design med reduktionsforhold med et transmissionsforhold på 1:2,83, som kan opnå op til 70N trådfremføringskraft (180 % større end Aquila C2), hvilket sikrer jævnere trådfremføring, når udskrivning af forskellige filamenter, især fleksibel filament TPU. Justerbare blæsere med dobbelt køling Vindhastigheden kan justeres i henhold til materialets temperaturfølsomhed, hvilket gør trådfremføringen jævnere, modelkvaliteten bedre. In the Box Aquila D1 selvsamlet X1 Strømkabel X1 Kabelbinder X1 Nål X1 Materiale rack X1 Remove-værktøj X1 Lagerkort og kortlæser X1 Skruenøgler og skruetrækkere X1 50g Filament X1 Dyse X3 Skruesæt X1 Diagonal tang X1 Limstift X1 Fedt X1 Brugervejledning X1 Specifikationer Print Extruder Quantity: 1 Nozzle Diameter: Standard 0.4 mm, Optional 0.6 mm Maximum Extruder Temperature: ≤300℃ Print Speed: ≤180 mm/s, 100 mm/s normally Maximum Platform Temperature: ≤110℃ Filament Compatibility: Φ1.75 mm PLA, PETG, TPU 95A, ABS, HIPS Print Volume: 235*235*250 mm Layer Thickness: 0.1 mm-0.4 mm Print Precision: ±0.2 mm Mechanical & Dimension Printer Dimension: 470*440*511 (663) mm Package Dimension: 515*515*250 mm Screen: 4.3-inch Touch Screen Net Weight: 9 kg Gross Weight: 11 kg Input: AC 100-120V~6.8A; 200-240V~3.4A Output: DC 24V~14.6A Power: 350 W Electrical Connectivity: USB / SD Card Software: VoxelMaker / Cura / Simplify 3D Supported File Format: STL, OBJ, AMF Input / Output File Format: .g / .gcode Supports(OS): Win 7 / 10 / Mac OS Others* Running Noise: 50 dB Working Environment: 15-30 ℃ Language Switch: Chinese / English / Spanish / French / German / Russian Auxiliary Leveling: 25-point Leveling Z-Axis: Threaded Rod x 2 Power Loss Recovery: Yes Filament Sensor: Yes PEI Spring Steel Platform: Yes Buzzer Hint: Yes
- 300 degrees C High-temp Nozzle

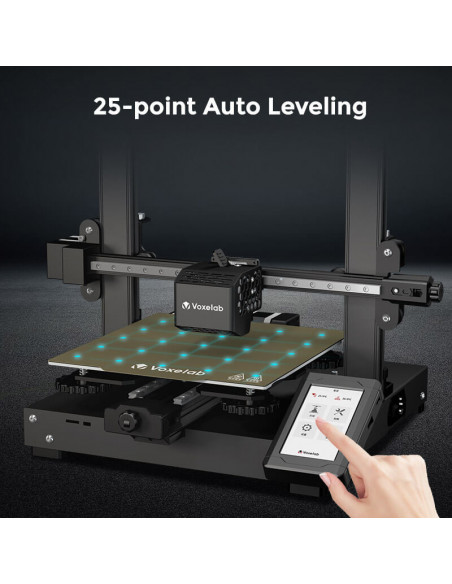

- 25-point Auto Leveling
- X-axis, Y-axis Linear Guide
- Z-axis High-precision Double Screw
- Strong Wire Feeding Force up to 70N

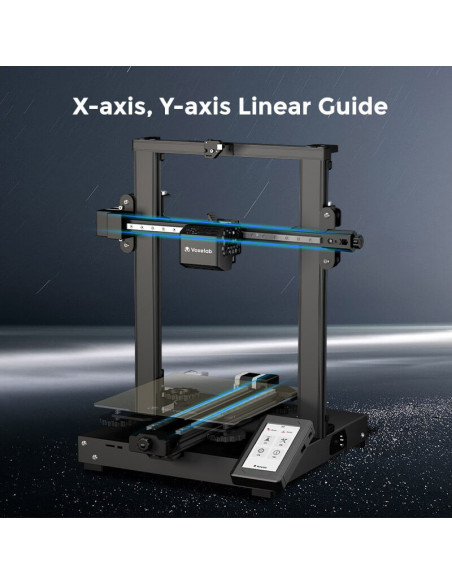

X-axis, Y-axis Linear Guide The X-axis and Y-axis use linear guide rails instead of pulley guide rails, with a motion accuracy of ±0.02mm, reducing the surface texture caused by machine shaking, making printing more stable and printing details finer. Z-axis High-precision Double Screw The Z-axis adopts double screw synchronous operation to reduce printing wobbles, bringing more stable operation and smaller zeroing error. Strong Wire Feeding Force up to 70N The new nozzle adopts an all-metal double-gear direct extruder, a reduction ratio design with a transmission ratio of 1: 2.83, which can achieve up to 70N wire feed force (180% greater than Aquila C2), ensuring smoother wire feeding when printing different filaments, especially flexible filament TPU. Dual Cooling Adjustable Fans The wind speed can be adjusted according to the temperature sensitivity of the material, making wire feeding is smoother, the model quality better. In the Box Aquila D1 self-assembled X1 Power cable X1 Cable tie X1 Needle X1 Material rack X1 Remove tool X1 Storage card and card reader X1 Wrenches and screwdrivers X1 50g Filament X1 Nozzle X3 Screw kit X1 Diagonal pliers X1 Glue stick X1 Grease X1 User manual X1 Specifications Print Extruder Quantity: 1 Nozzle Diameter: Standard 0.4 mm, Optional 0.6 mm Maximum Extruder Temperature: ≤300℃ Print Speed: ≤180 mm/s, 100 mm/s normally Maximum Platform Temperature: ≤110℃ Filament Compatibility: Φ1.75 mm PLA, PETG, TPU 95A, ABS, HIPS Print Volume: 235*235*250 mm Layer Thickness: 0.1 mm-0.4 mm Print Precision: ±0.2 mm Mechanical & Dimension Printer Dimension: 470*440*511 (663) mm Package Dimension: 515*515*250 mm Screen: 4.3-inch Touch Screen Net Weight: 9 kg Gross Weight: 11 kg Input: AC 100-120V~6.8A; 200-240V~3.4A Output: DC 24V~14.6A Power: 350 W Electrical Connectivity: USB / SD Card Software: VoxelMaker / Cura / Simplify 3D Supported File Format: STL, OBJ, AMF Input / Output File Format: .g / .gcode Supports(OS): Win 7 / 10 / Mac OS Others* Running Noise: 50 dB Working Environment: 15-30 ℃ Language Switch: Chinese / English / Spanish / French / German / Russian Auxiliary Leveling: 25-point Leveling Z-Axis: Threaded Rod x 2 Power Loss Recovery: Yes Filament Sensor: Yes PEI Spring Steel Platform: Yes Buzzer Hint: Yes
