English description below
- PCIe Playback & Monitoring Card
- Ideal for 2110 IP Broadcast Systems
- 10-Bit 1080p60 Uncompressed Video
- 10G Optical Fiber SFP+ Port
- All Popular Video Software Supported

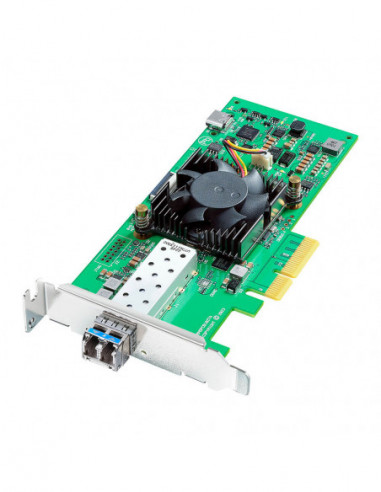

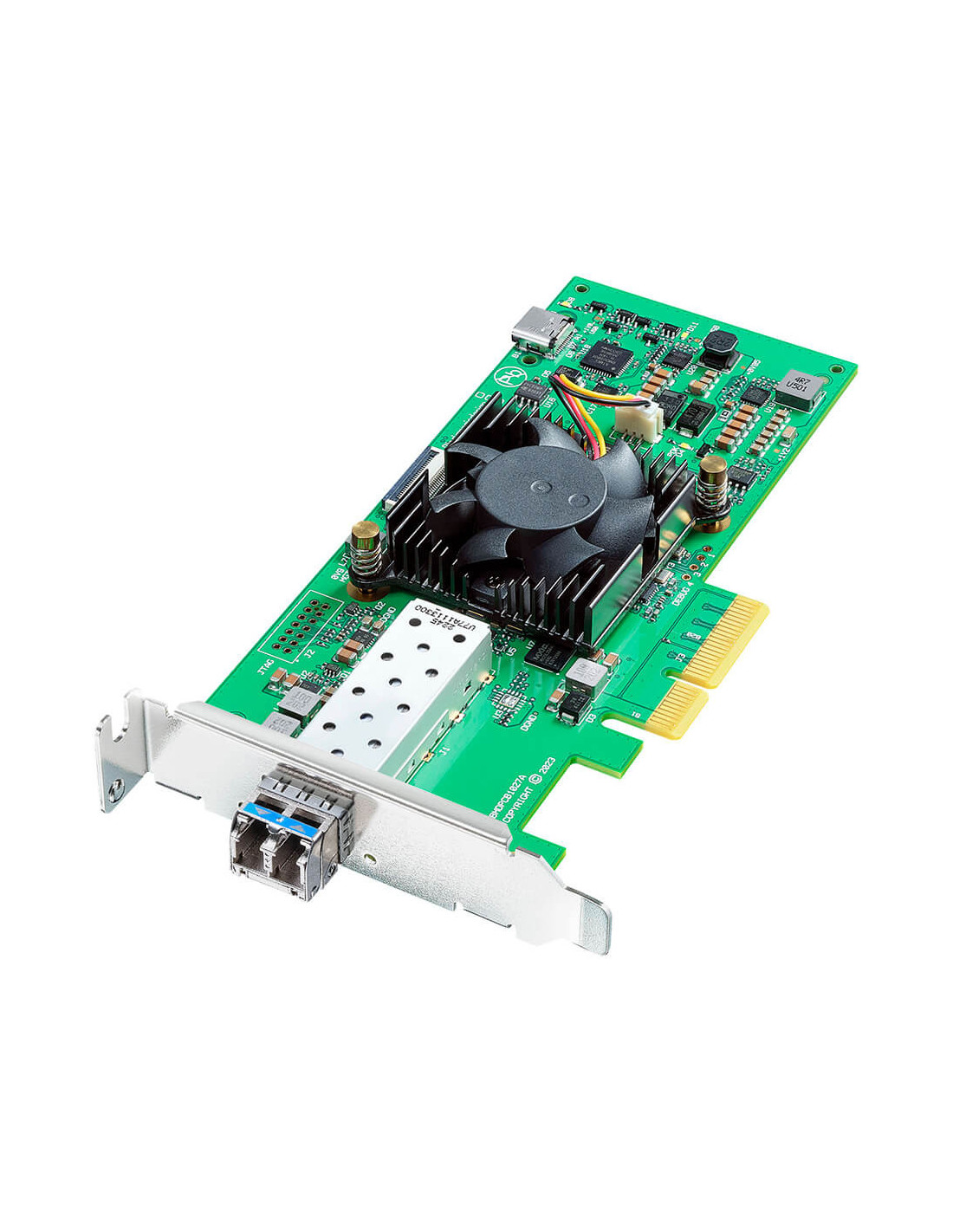

DeckLink IP cards are the easiest way to capture and play back video directly into 2110 IP based broadcast systems! They have the same DeckLink features so all your existing software will just work! DeckLink IP cards support multiple video channels plus each channel can capture and play back at the same time. This means you can build racks of servers generating broadcast graphics, virtual sets, or GPU based AI image processing, all directly integrated into 2110 IP broadcast infrastructure. You can even use DaVinci Resolve for 2110 IP based broadcast editing workstations! DeckLink IP features a high speed PCIe connection so it works on the latest Mac Pro, Windows and Linux computers. DeckLink IP HD Optical DeckLink IP features 3 channels of capture and playback to 2110 IP broadcast systems via an SFP based optical fiber Ethernet connection. It supports all 720p, 1080i and 1080p standards up to 1080p60. Specifications SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 Audio Sampling Television standard sample rate of 48 kHz and 24 bit. Color Precision 8, 10, 12-bit RGB 4:4:4 in all modes up to 1080p30 and 8, 10-bit YUV 4:2:2 in all modes. Color Space REC 601, REC 709, REC 2020 IP Video Compliance SMPTE 2110-20 (Uncompressed Video) IGMP v2 SMPTE 2110-21 (Traffic Shaping) Sender: Narrow Receiver: Narrow, Wide Synchronous, Asynchronous SMPTE 2110-30 (PCM) Audio Conformance level: Level C SMPTE 2110-40 (Ancillary Data) Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata. Precision Time Protocol IEEE 1588-2008 (PTP v2) ST 2059-1 ST 2059-2 NMOS IS-04 Discovery and Registration v1.3.2 Peer-to-peer via mDNS/DNS-SD NMOS IS-05 Connection Management v1.1.2 NMOS BCP-002-01 Natural Grouping NMOS BCP-004-01 Receiver capabilities Processing Colorspace Conversion Hardware based real time. Real Time Effects DaVinci Resolve, Final Cut Pro internal effects. Adobe Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects. Physical Installation PCI Express low profile.
- PCIe Playback & Monitoring Card
- Ideal for 2110 IP Broadcast Systems
- 10-Bit 1080p60 Uncompressed Video
- 10G Optical Fiber SFP+ Port
- All Popular Video Software Supported
DeckLink IP cards are the easiest way to capture and play back video directly into 2110 IP based broadcast systems! They have the same DeckLink features so all your existing software will just work! DeckLink IP cards support multiple video channels plus each channel can capture and play back at the same time. This means you can build racks of servers generating broadcast graphics, virtual sets, or GPU based AI image processing, all directly integrated into 2110 IP broadcast infrastructure. You can even use DaVinci Resolve for 2110 IP based broadcast editing workstations! DeckLink IP features a high speed PCIe connection so it works on the latest Mac Pro, Windows and Linux computers. DeckLink IP HD Optical DeckLink IP features 3 channels of capture and playback to 2110 IP broadcast systems via an SFP based optical fiber Ethernet connection. It supports all 720p, 1080i and 1080p standards up to 1080p60. Specifications SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 Audio Sampling Television standard sample rate of 48 kHz and 24 bit. Color Precision 8, 10, 12-bit RGB 4:4:4 in all modes up to 1080p30 and 8, 10-bit YUV 4:2:2 in all modes. Color Space REC 601, REC 709, REC 2020 IP Video Compliance SMPTE 2110-20 (Uncompressed Video) IGMP v2 SMPTE 2110-21 (Traffic Shaping) Sender: Narrow Receiver: Narrow, Wide Synchronous, Asynchronous SMPTE 2110-30 (PCM) Audio Conformance level: Level C SMPTE 2110-40 (Ancillary Data) Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata. Precision Time Protocol IEEE 1588-2008 (PTP v2) ST 2059-1 ST 2059-2 NMOS IS-04 Discovery and Registration v1.3.2 Peer-to-peer via mDNS/DNS-SD NMOS IS-05 Connection Management v1.1.2 NMOS BCP-002-01 Natural Grouping NMOS BCP-004-01 Receiver capabilities Processing Colorspace Conversion Hardware based real time. Real Time Effects DaVinci Resolve, Final Cut Pro internal effects. Adobe Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects. Physical Installation PCI Express low profile.
