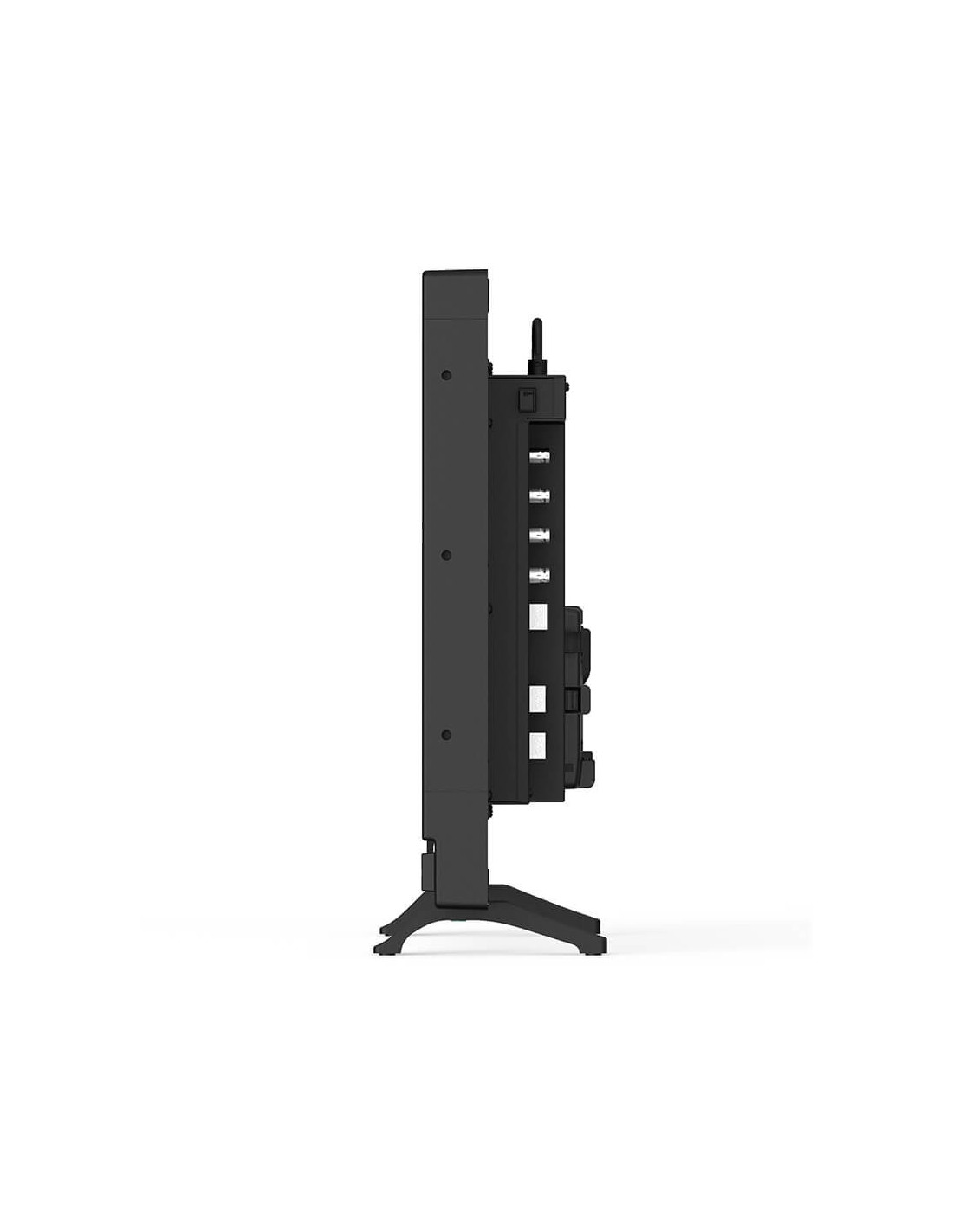

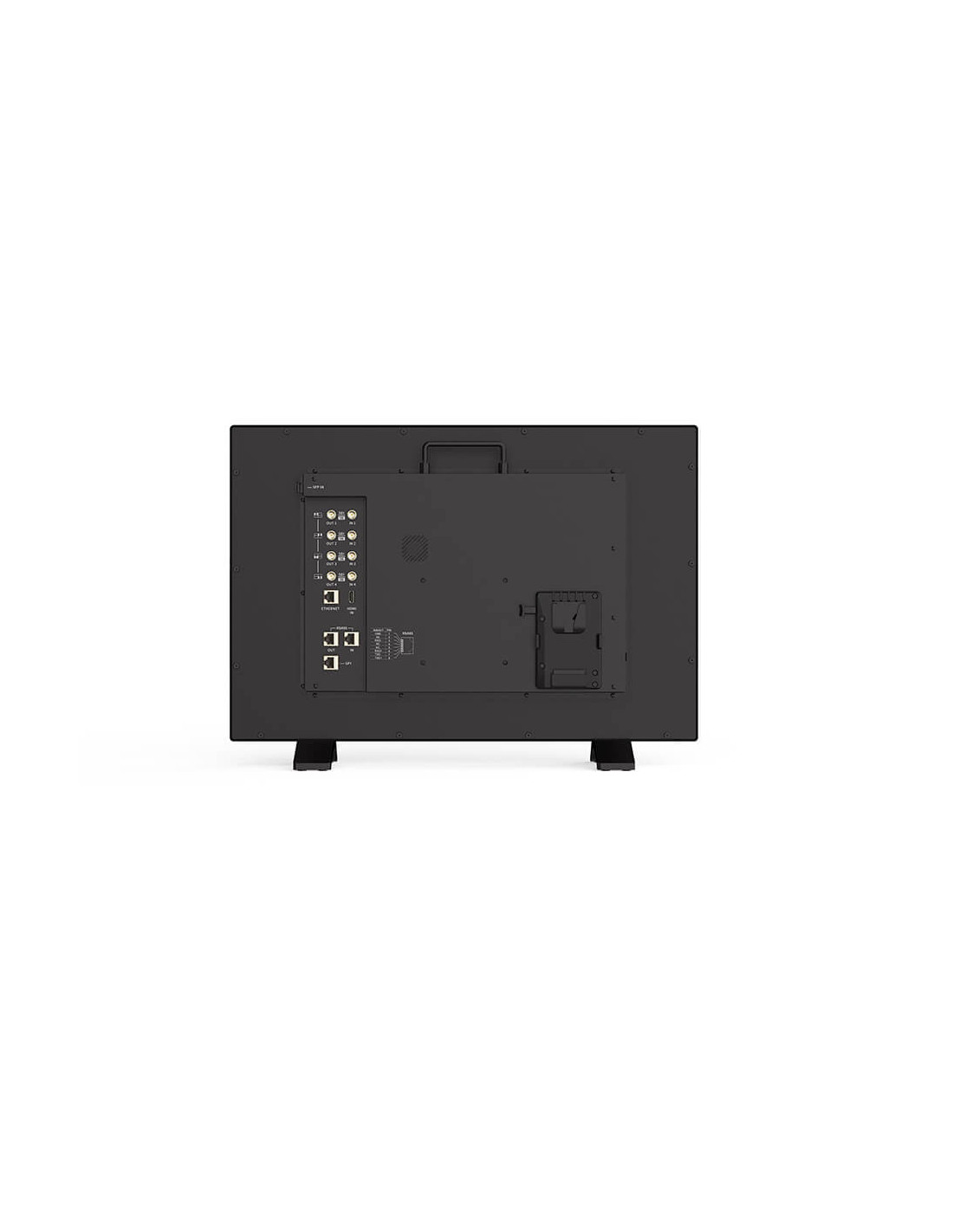

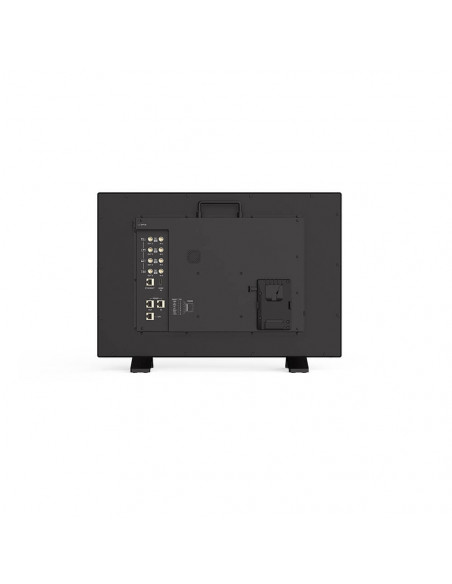

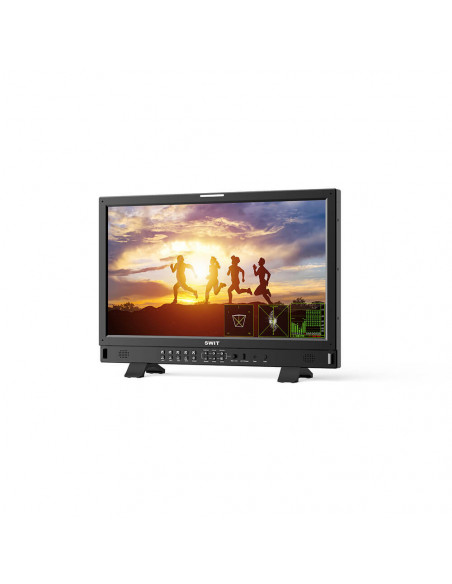

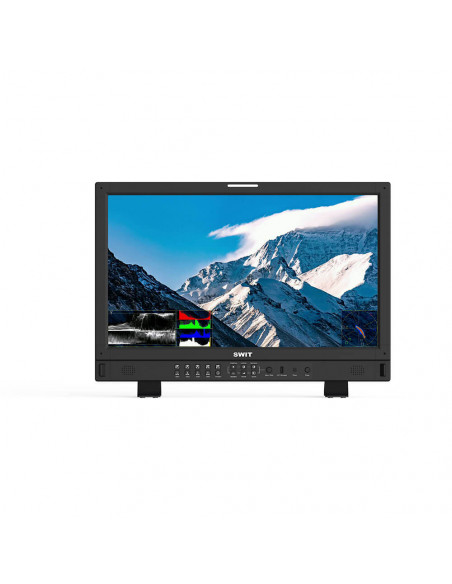

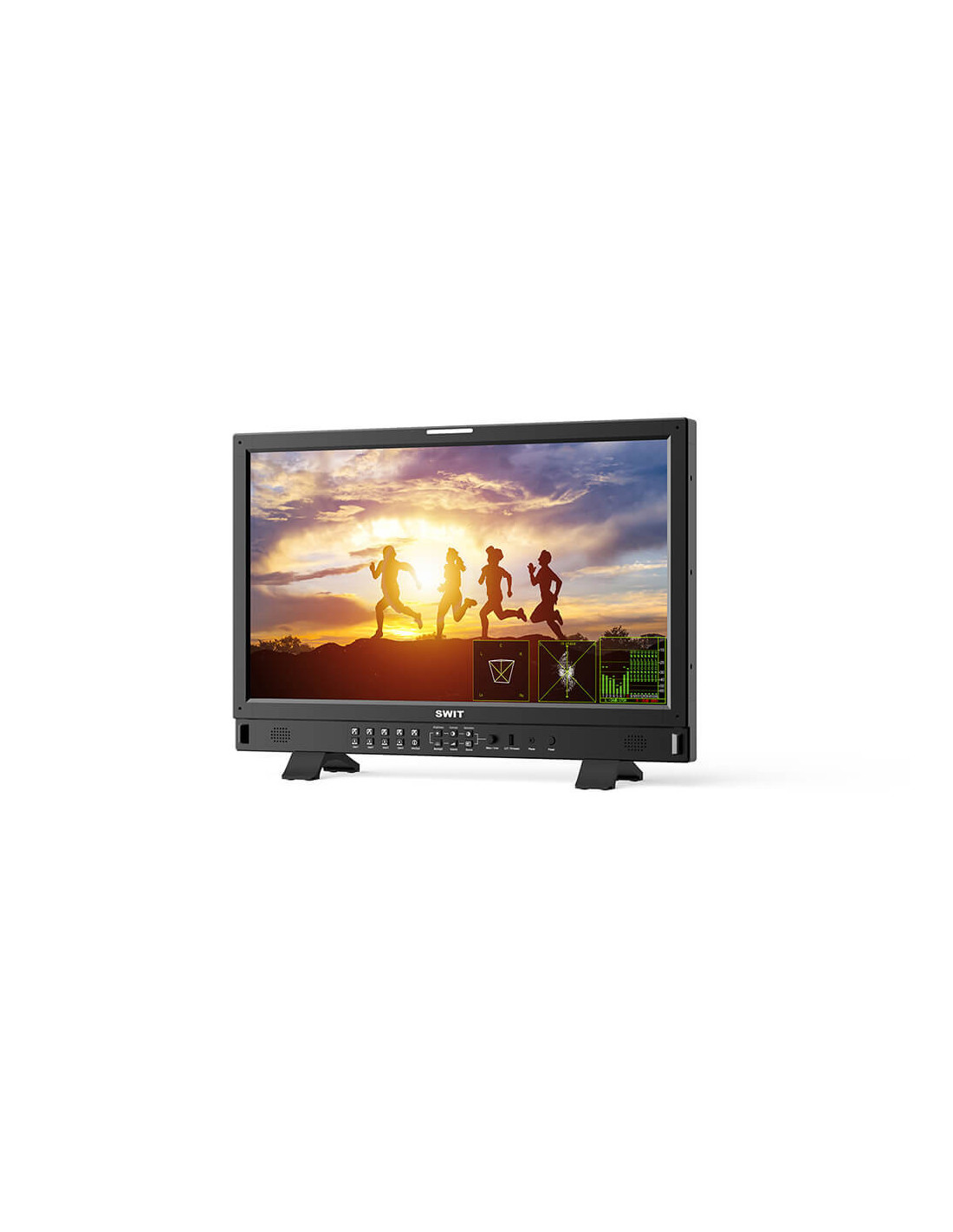

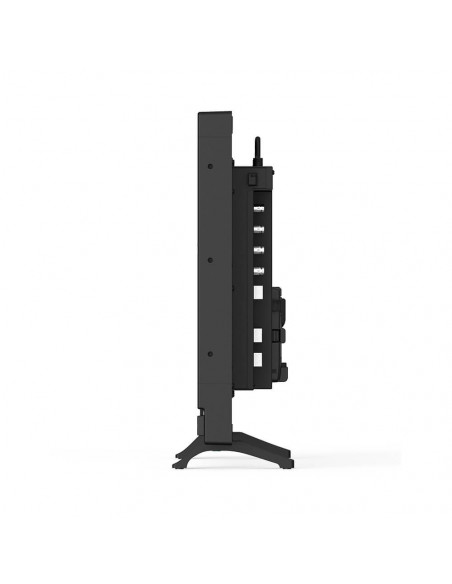

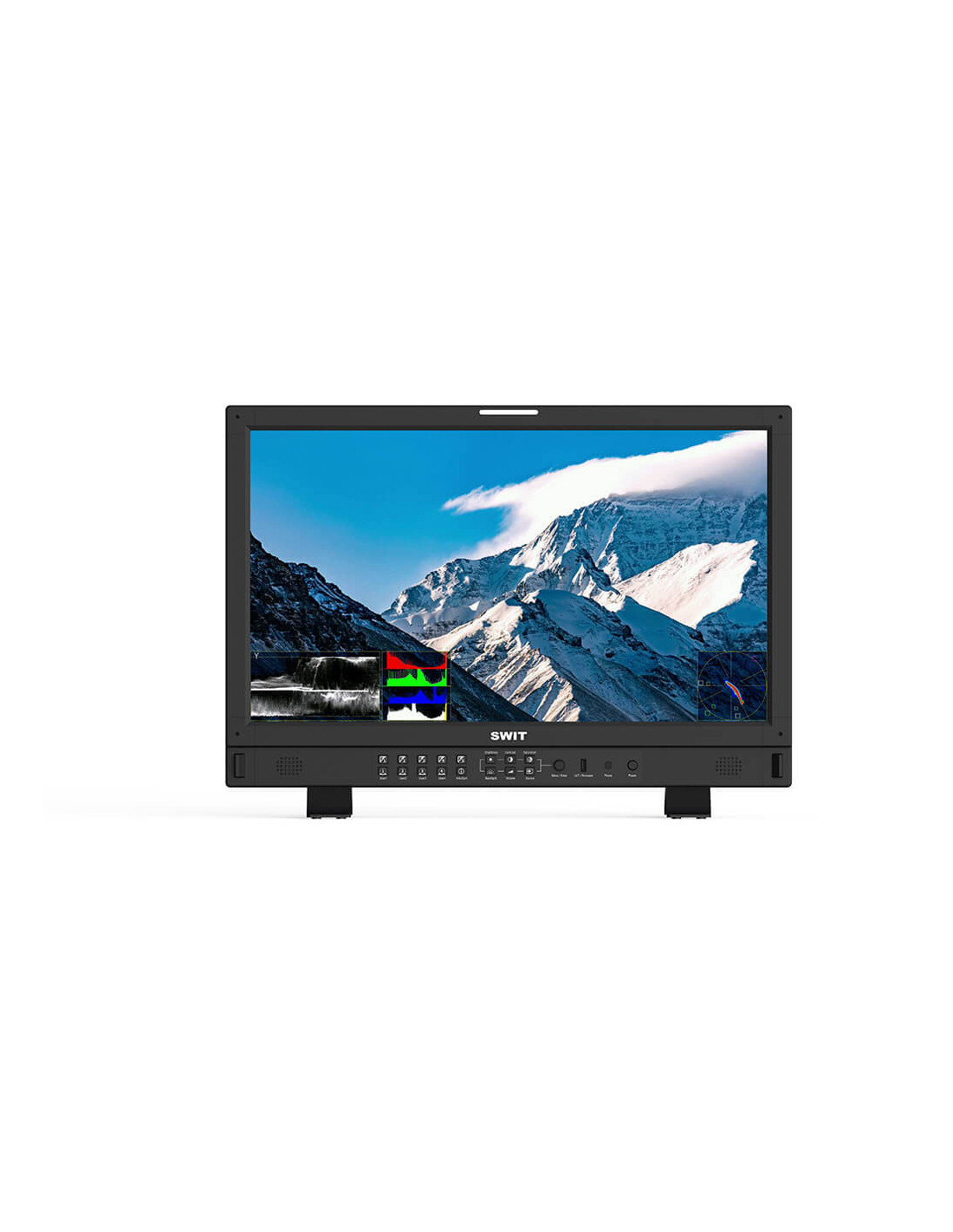

SWIT BM-U245 Monitor 23.8" 8K 4x12GSDI UHD HDR

English description below

• 23.8-inch LCD Panel, 3840×2160 resolution
• 12GSDI 4-in 4-out, 8K input ready, HDMI2.0 input
• 12GSDI via SFP Fiber input (Optional)
• ST2110 IP via SFP Fiber input (Optional)
• 3DLUT Auto Self-calibration without PC

BM-U245 adopts a 23.8-inch 10bit LCD panel, UHD 3840×2160 resolution, 300nits LED backlight, 1000:1 contrast, 94.1% DCI-P3 color gamut. The viewing angle is H178° / V178°.　 12GSDI 4-in 4-out, supports: Single link 4K; Quad link 4K and Quad link 8K HDMI 2.0 (4K60P) 12GSDI via SFP Fiber (Optional) ST2110 IP via SFP Fiber (Optional) * The Quadlink 4K/8K supports both Quad mode and 2SI interleave mode; * The SFP optical fiber adaptor is optional purchased. Supports Single link 4K input including 12GSDI, HDMI2.0 or 12GSDI via SFP, and Quad link 4x 3GSDI 4K or Quad link 4x 12GSDI 8K inputs. You can also input 4x independent 4K videos to multiview, supports 12G/6G/3G/HD-SDI and HDMI 2.0/1.4/1.3 mixed formats input, and waveform, vector, audio meters, EOTF, color gamut selection for each input. For more information, see the downloadable pdf under the product media tab below.

• 23.8-inch LCD Panel, 3840×2160 resolution
• 12GSDI 4-in 4-out, 8K input ready, HDMI2.0 input
• 12GSDI via SFP Fiber input (Optional)
• ST2110 IP via SFP Fiber input (Optional)
• 3DLUT Auto Self-calibration without PC

BM-U245 adopts a 23.8-inch 10bit LCD panel, UHD 3840×2160 resolution, 300nits LED backlight, 1000:1 contrast, 94.1% DCI-P3 color gamut. The viewing angle is H178° / V178°.　 12GSDI 4-in 4-out, supports: Single link 4K; Quad link 4K and Quad link 8K HDMI 2.0 (4K60P) 12GSDI via SFP Fiber (Optional) ST2110 IP via SFP Fiber (Optional) * The Quadlink 4K/8K supports both Quad mode and 2SI interleave mode; * The SFP optical fiber adaptor is optional purchased. Supports Single link 4K input including 12GSDI, HDMI2.0 or 12GSDI via SFP, and Quad link 4x 3GSDI 4K or Quad link 4x 12GSDI 8K inputs. You can also input 4x independent 4K videos to multiview, supports 12G/6G/3G/HD-SDI and HDMI 2.0/1.4/1.3 mixed formats input, and waveform, vector, audio meters, EOTF, color gamut selection for each input. For more information, see the downloadable pdf under the product media tab below.
