English description below
- 24” 1920×1200 non-glaring LCD
- 10-bit LCD, 12-bit internal process
- 100% DCI-P3 Color Gamut
- 3G/HD/SD-SDI and HDMI input
- Multi-camera logs to Rec.709

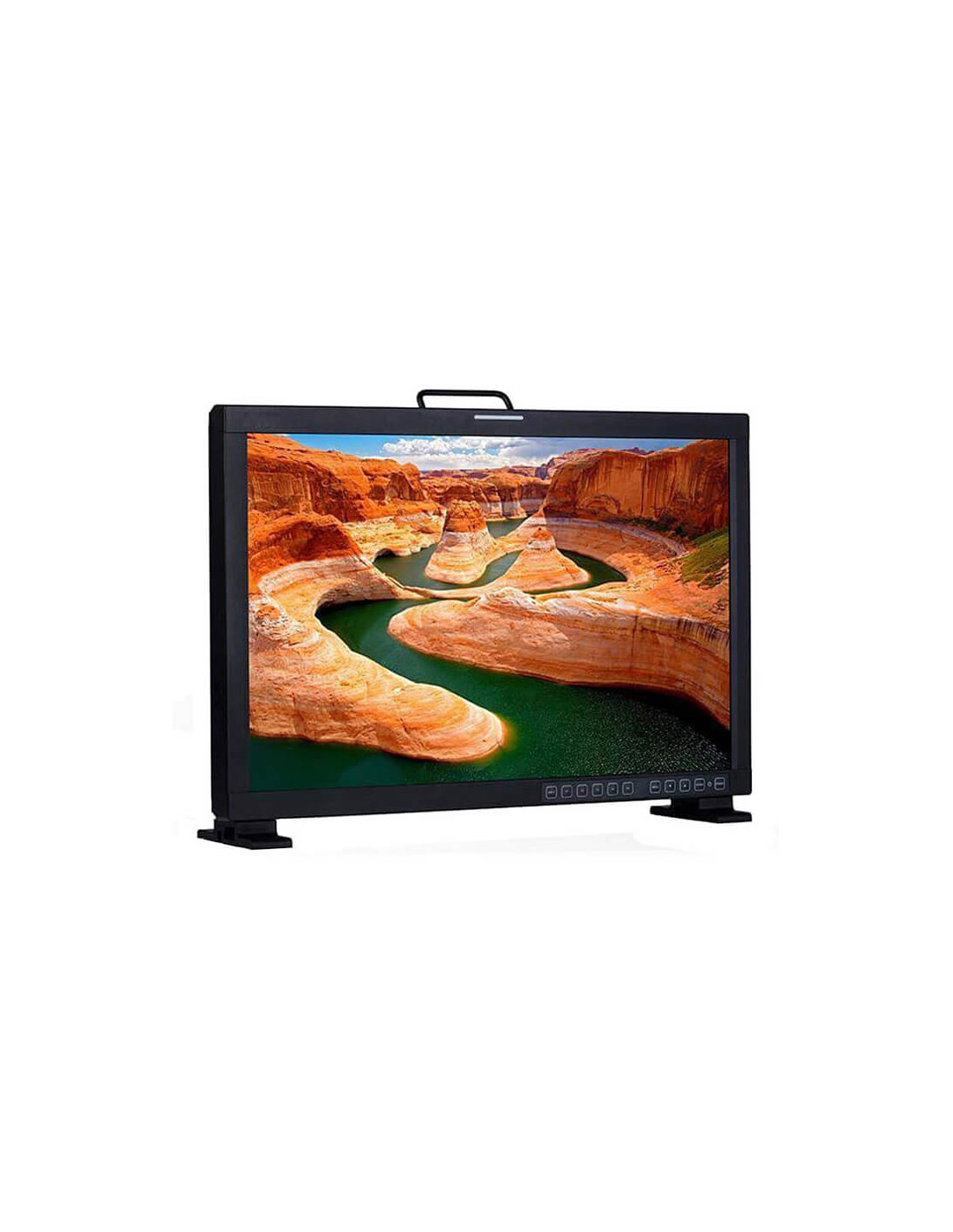

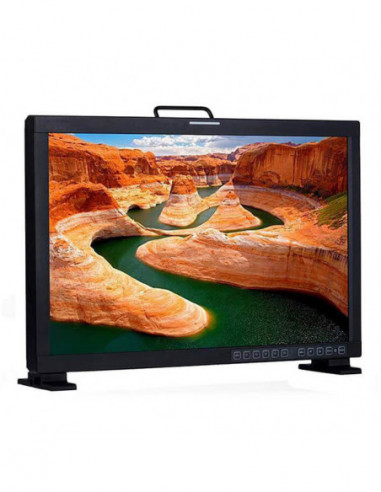

24-inch 10-bit FHD LCD 100% DCI-P3 Color Gamut The FM-24DCI monitor adopts a 24-inch 10-bit LCD panel with LED backlight, 100% DCI-P3 wide color gamut for post-production. The native resolution is Full HD 1920×1200, contrast 1000:1, and viewing angle is Horizontal: 178° / Vertical: 178°. Input/Output Interfaces 3G-SDI, HDMI FM-24DCI monitor supports： 3G/HD/SD-SDI input × 2 3G/HD/SD-SDI loop output × 2 HDMI 1.3 input × 1 Ethernet RJ45 × 1 SDI 1/2 PIP and PBP FM-24DCI supports 2x SDI Pic-in-Pic or Pic-by-Pic display mode. Under Pic-in-Pic mode, the sub input window can be set to bottom-left or bottom-right, and size adjustable. Built-in De-log 3DLUTs DIT user 3DLUT cube upload FM-24DCI provides multiple De-log 3DLUTs to convert log mode to REC709 for all major cameras, includes. ARRI LOG R709 RED RLF RG3 SONY SL2 LC709A SONY SL3C L709A Pana V-Log V709 Canon CinCL1 WDR Canon CinCL2 WDR BMD CC FILM V BMD PC FILM V2 And supports 4x user 3DLUT cubes or calibrated 3DLUT cube upload. Waveform / Vector scope / Audio meters FM-24DCI supports Waveform (LUMA), Vector scope (75% or 100%), and 16-ch embedded audio meters display. The patterns can be switched on/off individually, display position selectable. Anamorphic de-squeeze Enables de-squeeze the image from a camera utilizing anamorphic lens, Aspect Formats: 16x9, 4x3, x1.3 Anamorphic De-Squeeze x2.0 Anamorphic De-Squeeze x2.0 MAG Anamorphic De-Squeeze Webserver IP Remote Control FM-24DCI supports webserver remote control by Ethernet LAN connection. Use computer web browser to open the monitor control panel, and select input sources, adjust picture parameters, set up video / audio functions and assign function keys, etc, without install any APP. Power Input and Output FM-24DCI provides a V-mount battery plate, and supports 12-17V 4-pin XLR input and 100-240V AC input. FM-24DCI also provide 2x USB 5V/1A output and 1x 2-pin LEMO socket to output battery power. Specifications LCD Performance Size 24 inches Display area 518.4×324mm Resolution 1920×1080 Aspect ratio 16:10 Brightness 250cd/m2 Contrast 1000:1 Color 1.073G colors, 10 bit Viewing angle Horizontal: 178°; Vertical: 178° Input BNC ×2 3G/HD/SD-SDI input HDMI ×1 HDMI 1.3 input RJ45 ×1 10M/100M Ethernet input Output BNC ×2 3G/HD/SD-SDI loop output USB ×2 5V / 1A power output 2-pin LEMO ×1 Battery power output Video Format SDI 1080p (60 / 59.94 / 50) 1080i (60 / 59.94 / 50) 1080p (30 / 29.97 / 25 / 24 / 23.98) 1035i (60 / 59.94) 1080psf (30 / 29.97 / 25 / 24 / 23.98) 720p (60 / 59.94 / 50) 480i (59.94) 576i (50) HDMI 480i/ 576i / 480p / 576p 1080i (60 / 59.94 / 50) 720p (60 / 59.94 / 50) 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) General Input voltage DC 12V-17V 5A, AC 100-240V, 50/60Hz Power consumption 100W Working temperature 0°C～+50°C Working humidity 10%～90% Storage temperature -15°C～+60°C Storage humidity 10%～90% Dimensions 569.9×380.7×90.5mm Net weight (main body) 9.05kg
