English description below
- 720pcs Surface mounted LEDs
- 2:1 size, 100W, 3300Lux @ 1meter
- Half-peak 65° wide beam angle
- 5600K daylight color temperature
- 0-100% flick-free dimming

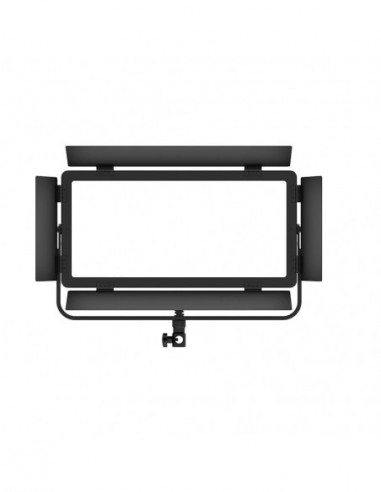

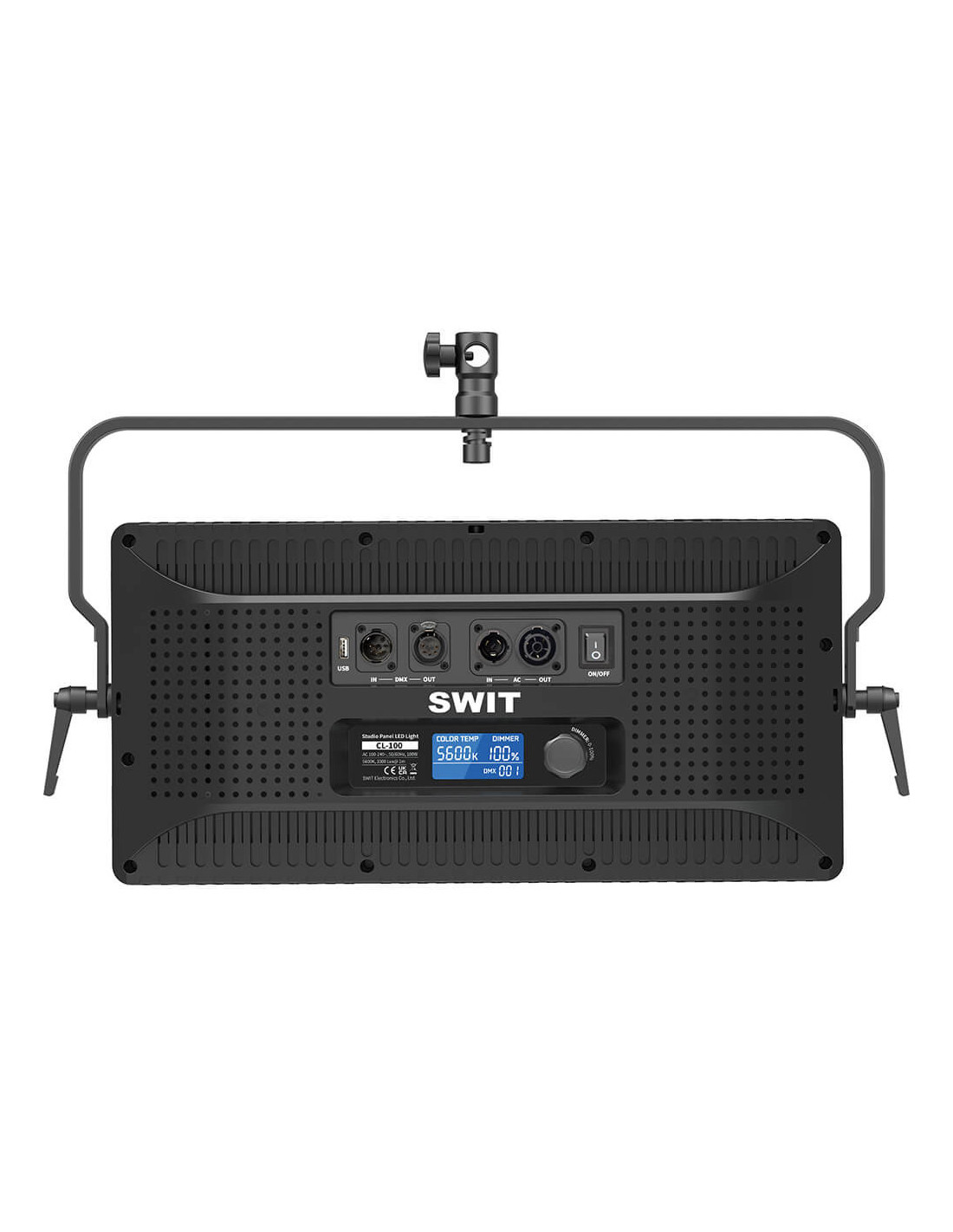

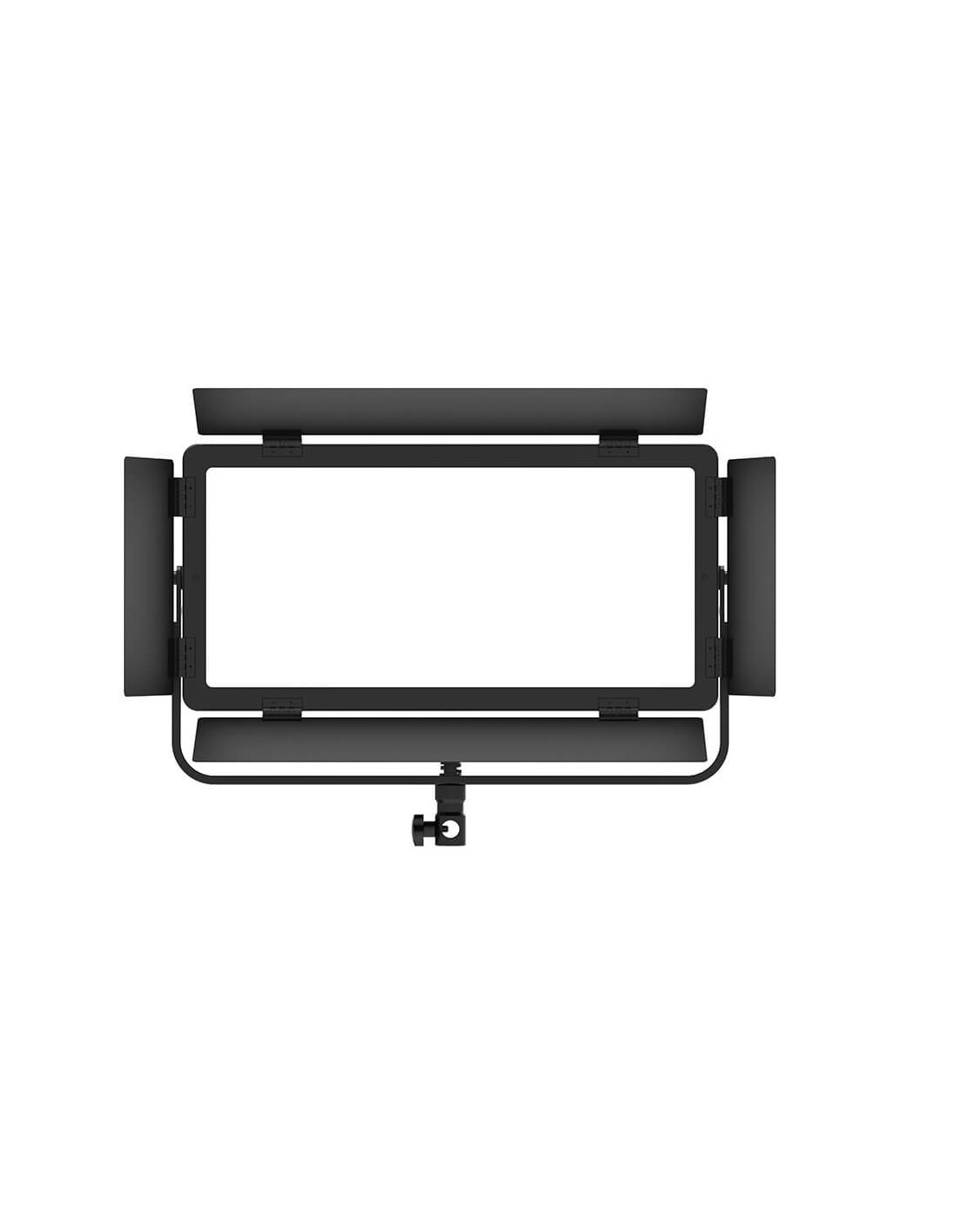

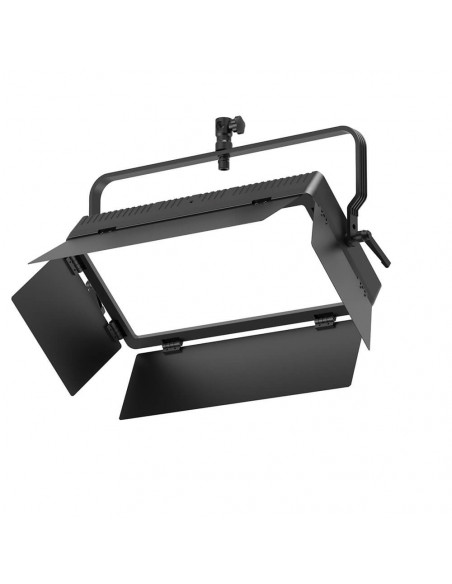

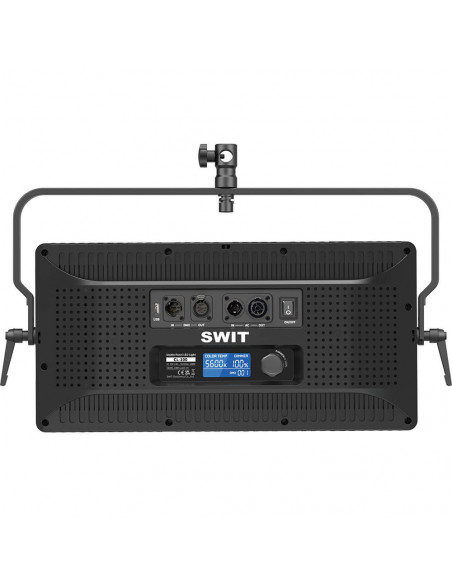

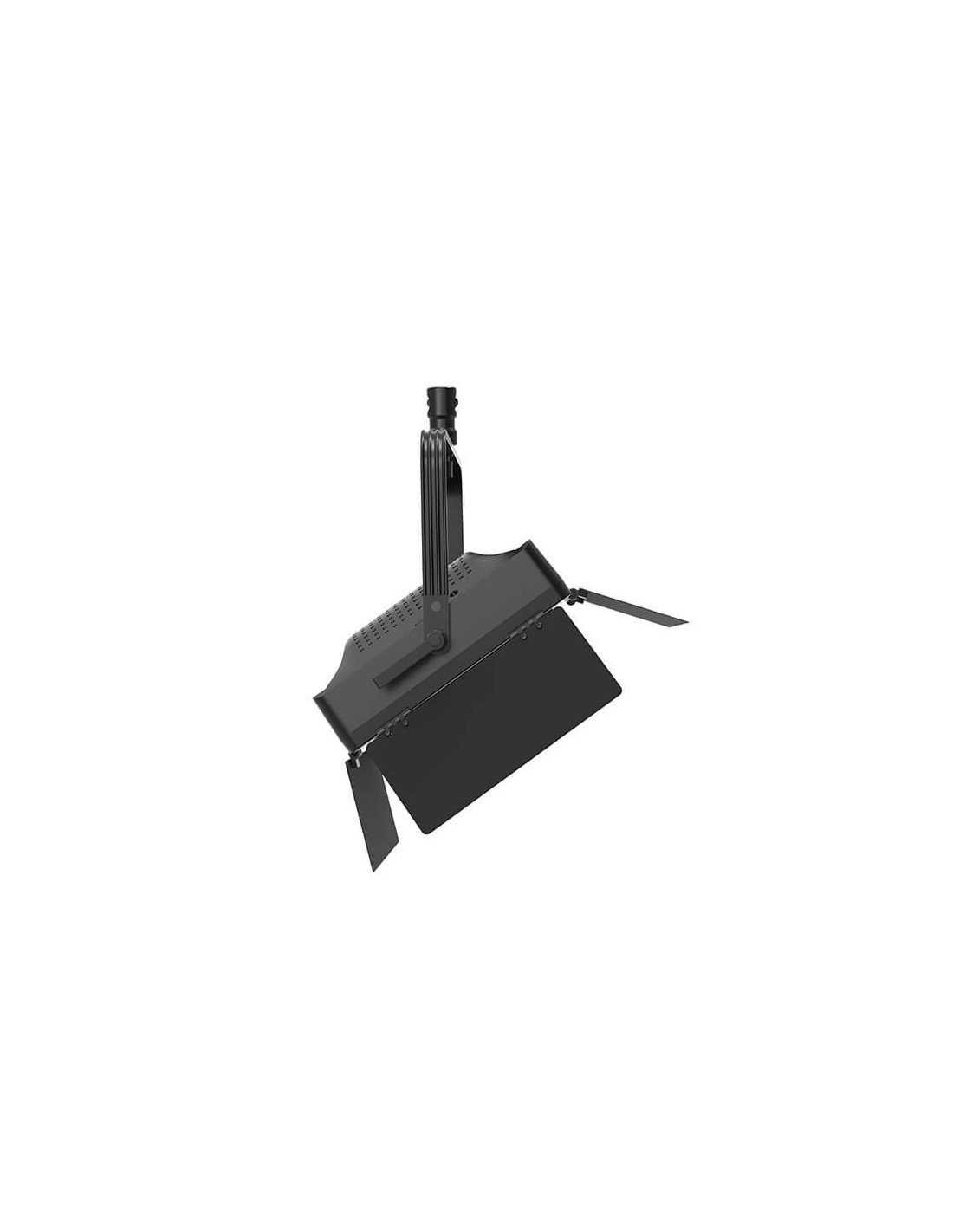

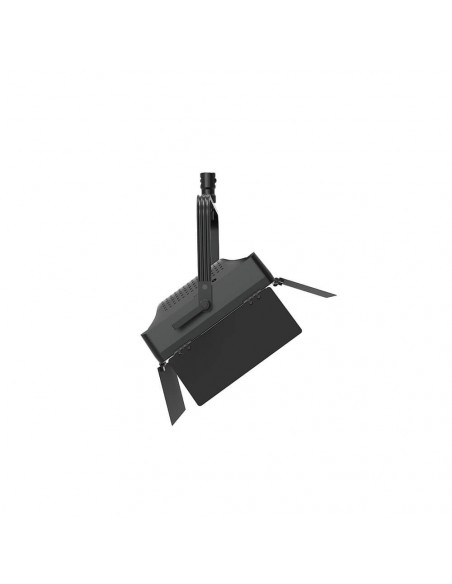

CL-100 is a 100W 2:1 SMD LED panel light of daylight color temperature, with DMX control, high CRI/TLCI and accurate color performance, for broadcast studio, mobile studio, live streaming studio install applications. CL-100 has 720pcs long life SMD LEDs, outputs 100W power, feeds 3300Lux luminance at 1 meter distance (center), supports 0 to 100% PWM digital dimming, smoothly and non-flickering. The SMD LEDs featured high uniformity of illuminance, soft and bright, an ideal light source for Broadcast studios, green keyer, live streaming etc. The CL-100 SMD LEDs have wider beam angle comparing to the traditional DIP LED bulbs. It will generate an equally spread area light from center to edge, instead of a glaring light spot that suddenly declined from center to edge. The wider angle equally spread light produces a nature light environment in studio. CL-100 adopts 4-step MacAdam Ellipse SMD-LEDs, outputs accruate 5600K color temperature for daylight studio application. CRI (Color Rendering Index) is a measure of the ability of a light source to reveal the colors of various objects faithfully in comparison with a natural light source. And TLCI (Television Lighting Consistency Index) is special for the color reveal ability by camera sensor. Max value 100. The normal LED light has 80-85 CRI or TLCI, while CL-100 offers the super high CRI at 97 and TLCI at 99, and will not lose the object original colors. CL-100 provides 5-pin XLR DMX512 in and out, with a 5V USB-A socket to power wireless DMX receiver. For convenient studio installation, the CL-100 provides PowerCON True 1 AC in and loop out sockets, which will loop through more than 25x CL-100 lights under 220V AC voltage, and 13x CL-100 lights under 110V voltage. CL-100 provides a 40° metal honeycomb plate for optional purchase. The honeycomb can be used together with barndoors. Honeycomb Part number: LA-G100 Delivers with Safety Rope and PowerCON TRUE1 AC cable. Specifications LED: 720pcs SMD LEDs Illuminance: 3300Lux @ 1m Beam angle: 65° half peak Color Temperature: 5600K CRI: 97 TLCI: 99 Power: 100W USB: 5V USB-A power out DMX: DMX512, 5pin XLR IN & OUT AC Power: PowerCON TRUE1 AC 100-240V 50/60Hz input & output Dimension: 480×240×87mm Lighting area 435×195mm: Weight: 3.2kg
- 720pcs Surface mounted LEDs
- 2:1 size, 100W, 3300Lux @ 1meter
- Half-peak 65° wide beam angle
- 5600K daylight color temperature
- 0-100% flick-free dimming
CL-100 is a 100W 2:1 SMD LED panel light of daylight color temperature, with DMX control, high CRI/TLCI and accurate color performance, for broadcast studio, mobile studio, live streaming studio install applications. CL-100 has 720pcs long life SMD LEDs, outputs 100W power, feeds 3300Lux luminance at 1 meter distance (center), supports 0 to 100% PWM digital dimming, smoothly and non-flickering. The SMD LEDs featured high uniformity of illuminance, soft and bright, an ideal light source for Broadcast studios, green keyer, live streaming etc. The CL-100 SMD LEDs have wider beam angle comparing to the traditional DIP LED bulbs. It will generate an equally spread area light from center to edge, instead of a glaring light spot that suddenly declined from center to edge. The wider angle equally spread light produces a nature light environment in studio. CL-100 adopts 4-step MacAdam Ellipse SMD-LEDs, outputs accruate 5600K color temperature for daylight studio application. CRI (Color Rendering Index) is a measure of the ability of a light source to reveal the colors of various objects faithfully in comparison with a natural light source. And TLCI (Television Lighting Consistency Index) is special for the color reveal ability by camera sensor. Max value 100. The normal LED light has 80-85 CRI or TLCI, while CL-100 offers the super high CRI at 97 and TLCI at 99, and will not lose the object original colors. CL-100 provides 5-pin XLR DMX512 in and out, with a 5V USB-A socket to power wireless DMX receiver. For convenient studio installation, the CL-100 provides PowerCON True 1 AC in and loop out sockets, which will loop through more than 25x CL-100 lights under 220V AC voltage, and 13x CL-100 lights under 110V voltage. CL-100 provides a 40° metal honeycomb plate for optional purchase. The honeycomb can be used together with barndoors. Honeycomb Part number: LA-G100 Delivers with Safety Rope and PowerCON TRUE1 AC cable. Specifications LED: 720pcs SMD LEDs Illuminance: 3300Lux @ 1m Beam angle: 65° half peak Color Temperature: 5600K CRI: 97 TLCI: 99 Power: 100W USB: 5V USB-A power out DMX: DMX512, 5pin XLR IN & OUT AC Power: PowerCON TRUE1 AC 100-240V 50/60Hz input & output Dimension: 480×240×87mm Lighting area 435×195mm: Weight: 3.2kg
