- Adjustable beam angle from 15° (spot) to 60° (flood)
- Integrated 4-leaf barndoor
- Flicker-free dimming of 0 - 100 %
- Colour temperature, dimmer and beam angle remote controllable via DMX512
- High colour reproduction with CRI 95 and TLCI 97

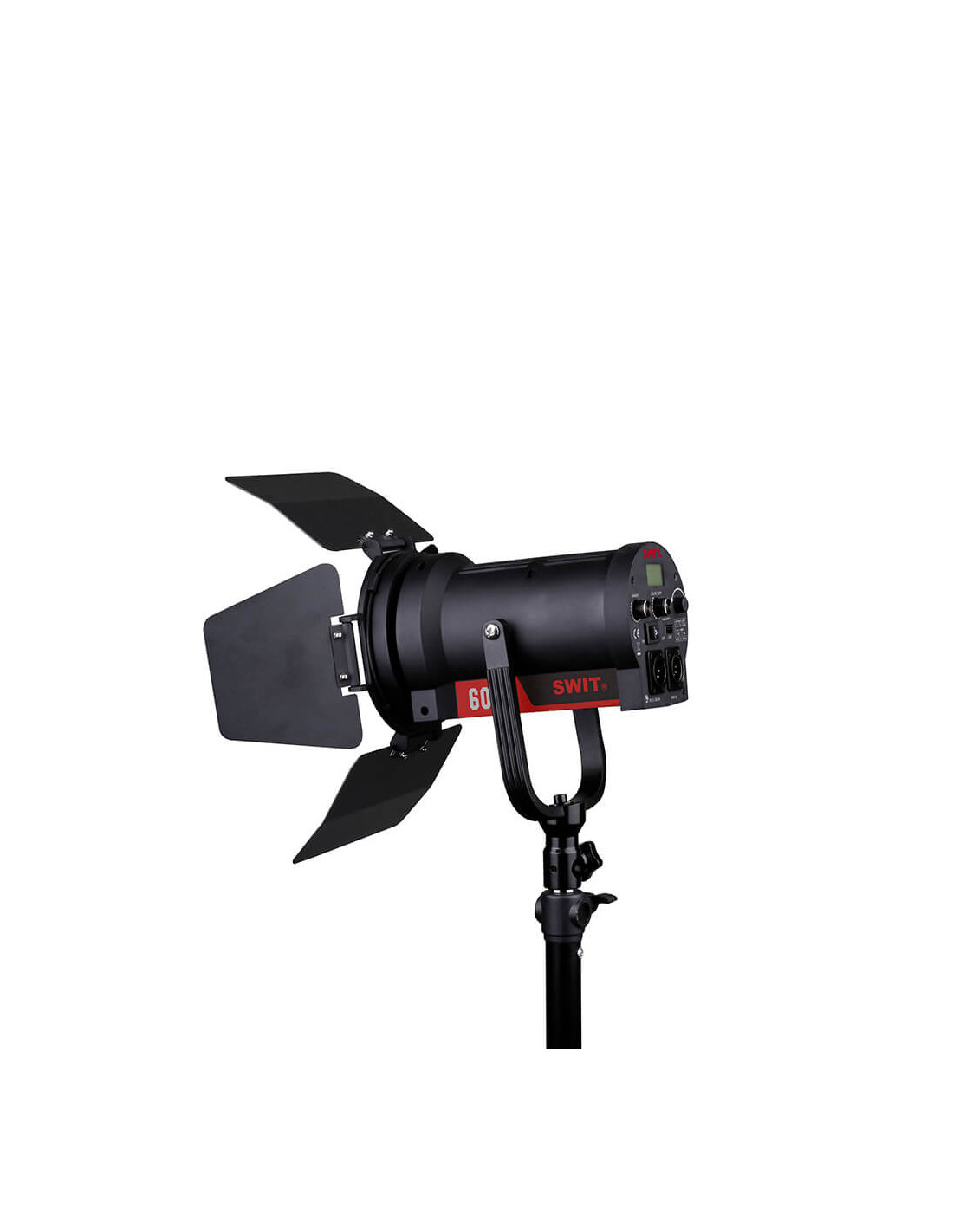

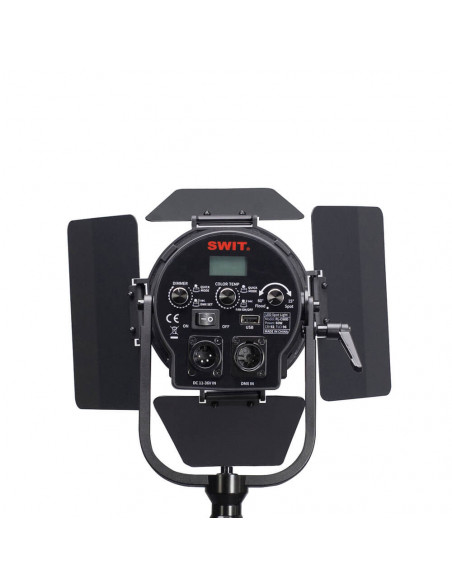

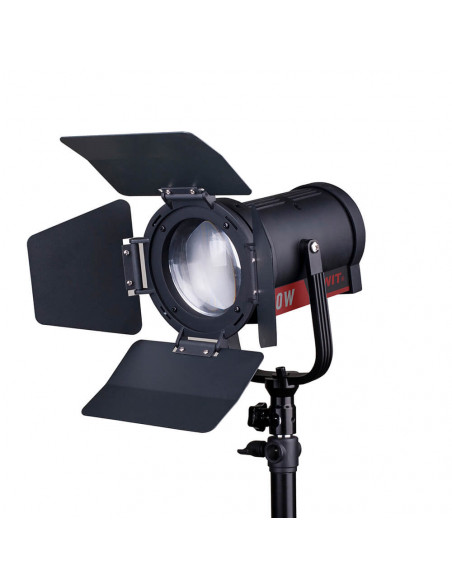

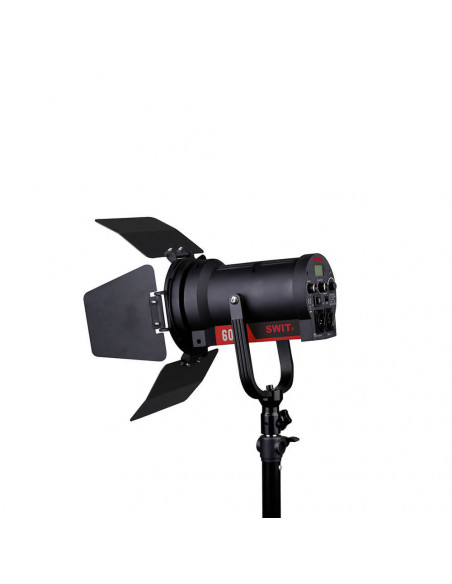

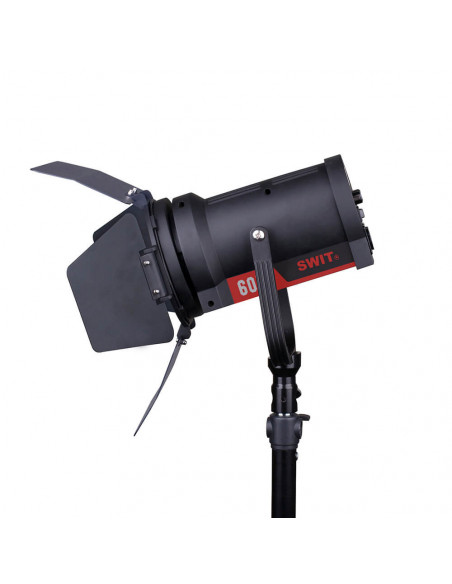

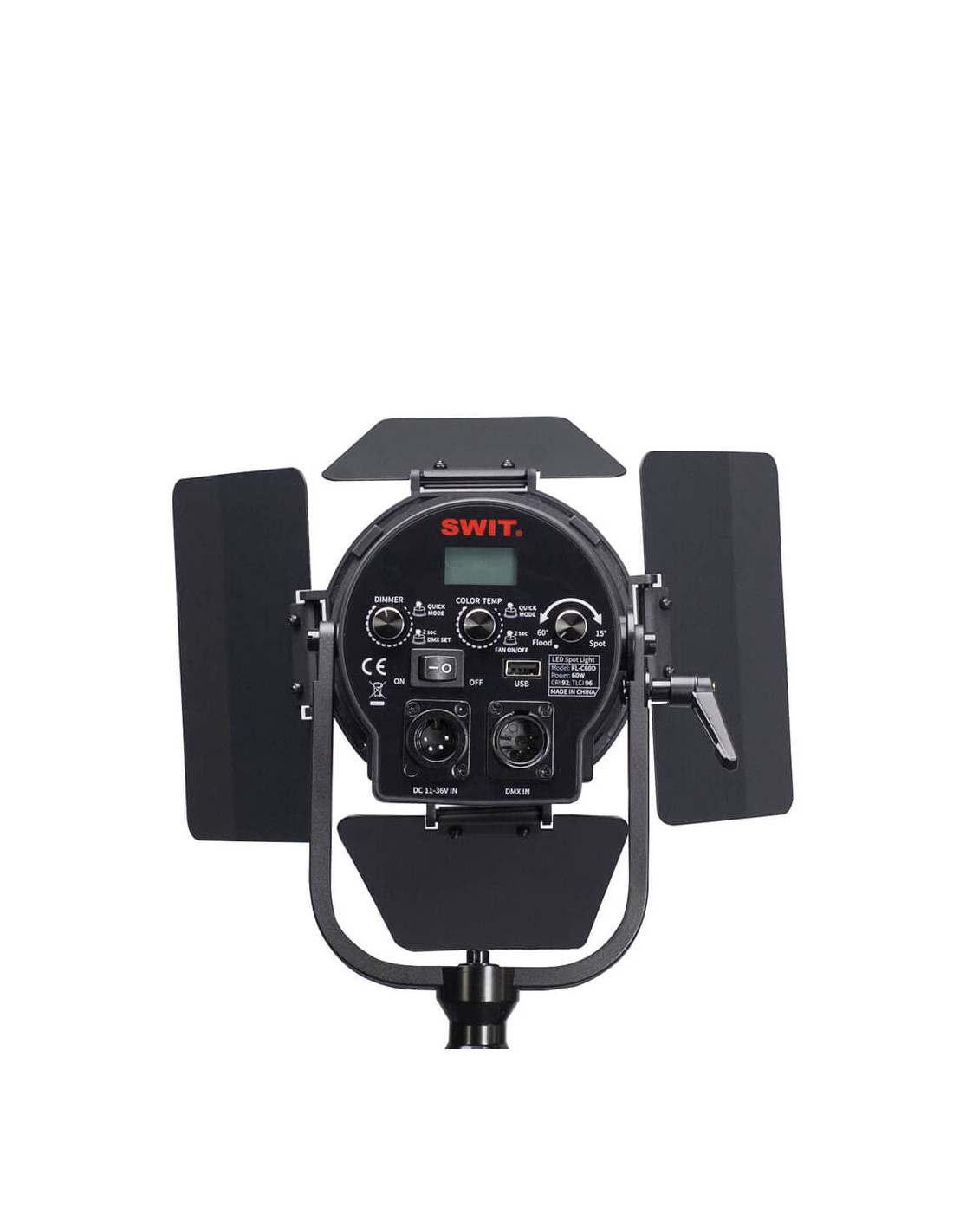

• Adjustable beam angle from 15° (spot) to 60° (flood) • Integrated 4-leaf barndoor • Flicker-free dimming of 0 - 100 % • Colour temperature, dimmer and beam angle remote controllable via DMX512 • High colour reproduction with CRI 95 and TLCI 97 • Protection against overheating • U-shaped suspension for flexible alignment of the spotlight The FL-C60D is a portable bi-colour COB (chip on board) LED spotlight with a power of 60 W and an adjustable colour temperature from 2,700 to 8,000 Kelvin. The spotlight can be switched between spot and flood mode, achieving a beam angle from 15° (spot) to 60° (flood) with a maximum brightness of 25,000 lux in spot mode and 4,000 lux in flood mode (at 1 m). The flicker-free dimming from 0 to 100 % allows the FL-C60D to be used even for slow-motion shots. The spotlight has a DMX input via 5-pin XLR (DMX512), which allows remote control of colour temperature, dimmer and beam angle. An USB-A port with an output voltage of 5 V DC is also available for use with the wireless DMX receiver LA-WR8-R by Swit. The U-shaped suspension of the FL-C60D allows flexible alignment of the spotlight. To prevent overheating, fans are installed, which can also be switched off for silent mode when shooting quietly. The spotlight is powered either by the supplied AC adapter with 4-pin XLR, the supplied DC power cable with D-Tap to 4-pin XLR or a separately available V-mount battery. What´s in the box: 1x AC adapter with 4-pin XLR 1x V-mount battery plate S-7200S with stand clamp 1x DC power cable 2-pin D-Tap to 4-pin XLR Technical Specifications: Light Source: LED Beam Angle: 15° - 60° (spot - flood) Colour Temperature: 2,700 - 8,000 K Maximum Brightness (at 1 m): 25,000 lux (spot), 4,000 lux (flood) Dimming: 0 - 100 %, flicker-free Colour Rendering Index (CRI): 95 Television Lighting Consistency Index (TLCI): 97 Cooling: Fans (can be switched off for Silent Mode) Suspension: U-shaped Data Links: 1x DMX512 IN via 5-pin XLR 1x Power supply DC IN via V-mount battery 1x Power supply DC IN via 4-pin XLR 1x USB via USB-A (5 V / 600 mA for optional wireless DMX receiver LA-WR8-R) General: Dimensions (W x H x D): 111 x 120 x 235 mm (4.37 x 4.72 x 9.25 in) Weight: 2.1 kg (4.63 lbs) Operating Voltage: 11 - 36 V DC (via 4-pin XLR) Power Consumption: approx. 60 W
