English description below
- 180pcs RGB + 300pcs White SMD-LEDs
- No fan, No noise
- Built-in 20x Rosco and 20x LEE Gels
- On-board V-mount or Gold mount battery plate

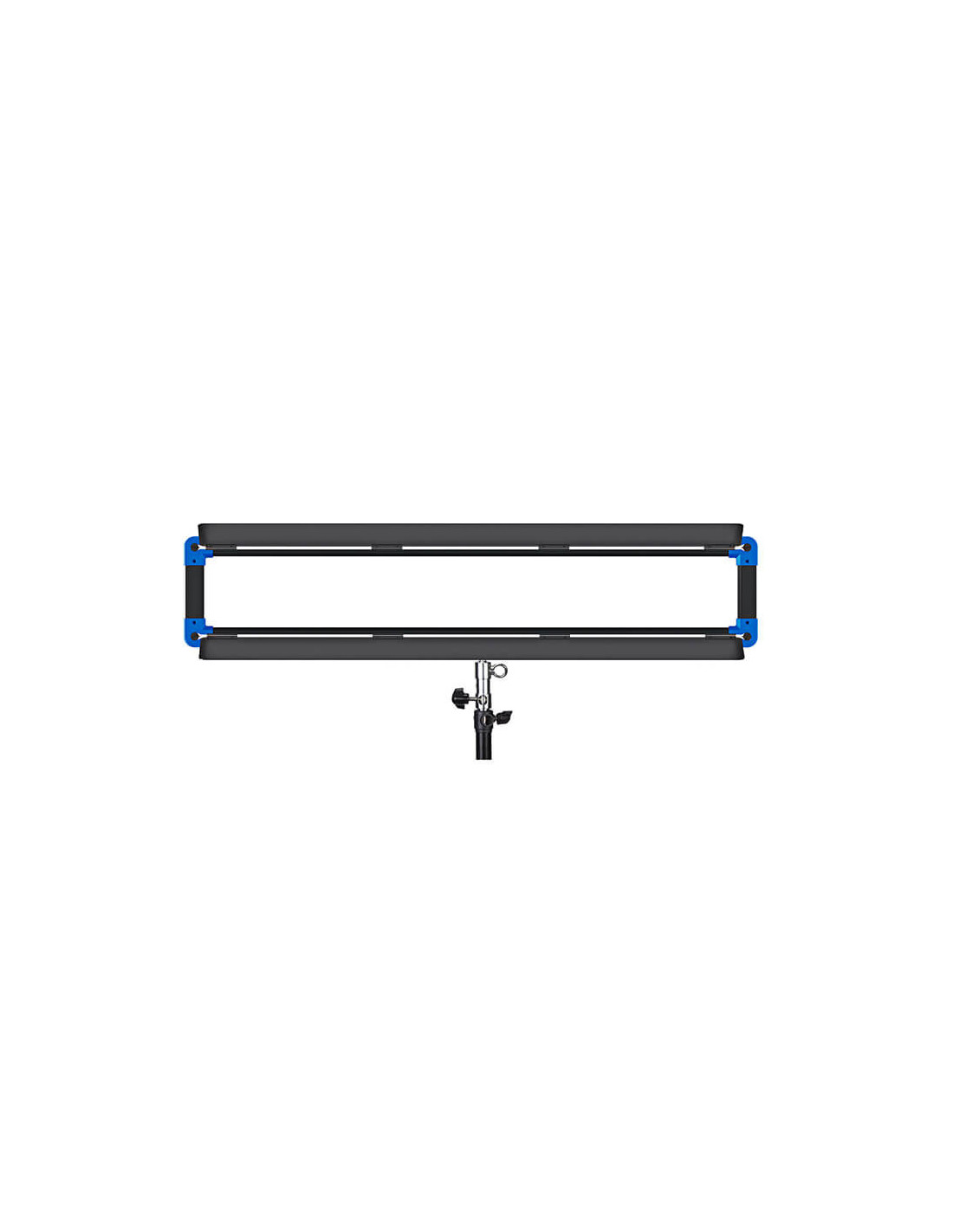

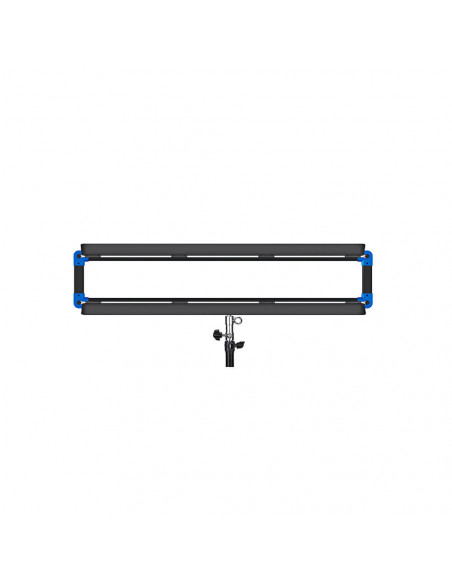

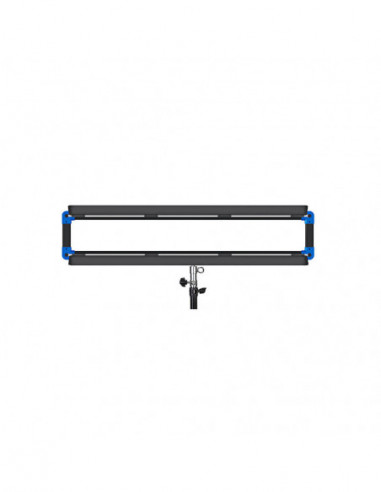

- With 2-leaf metal barn doors

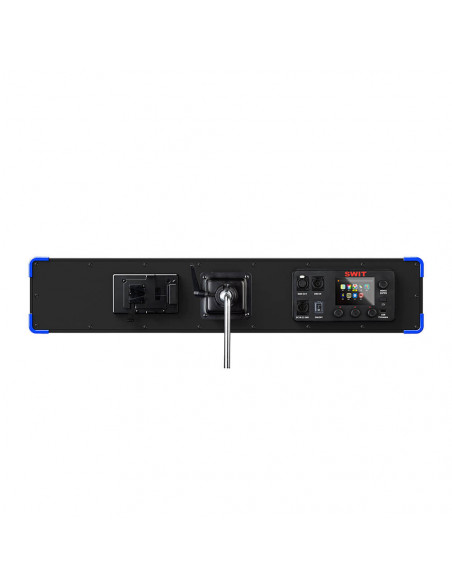

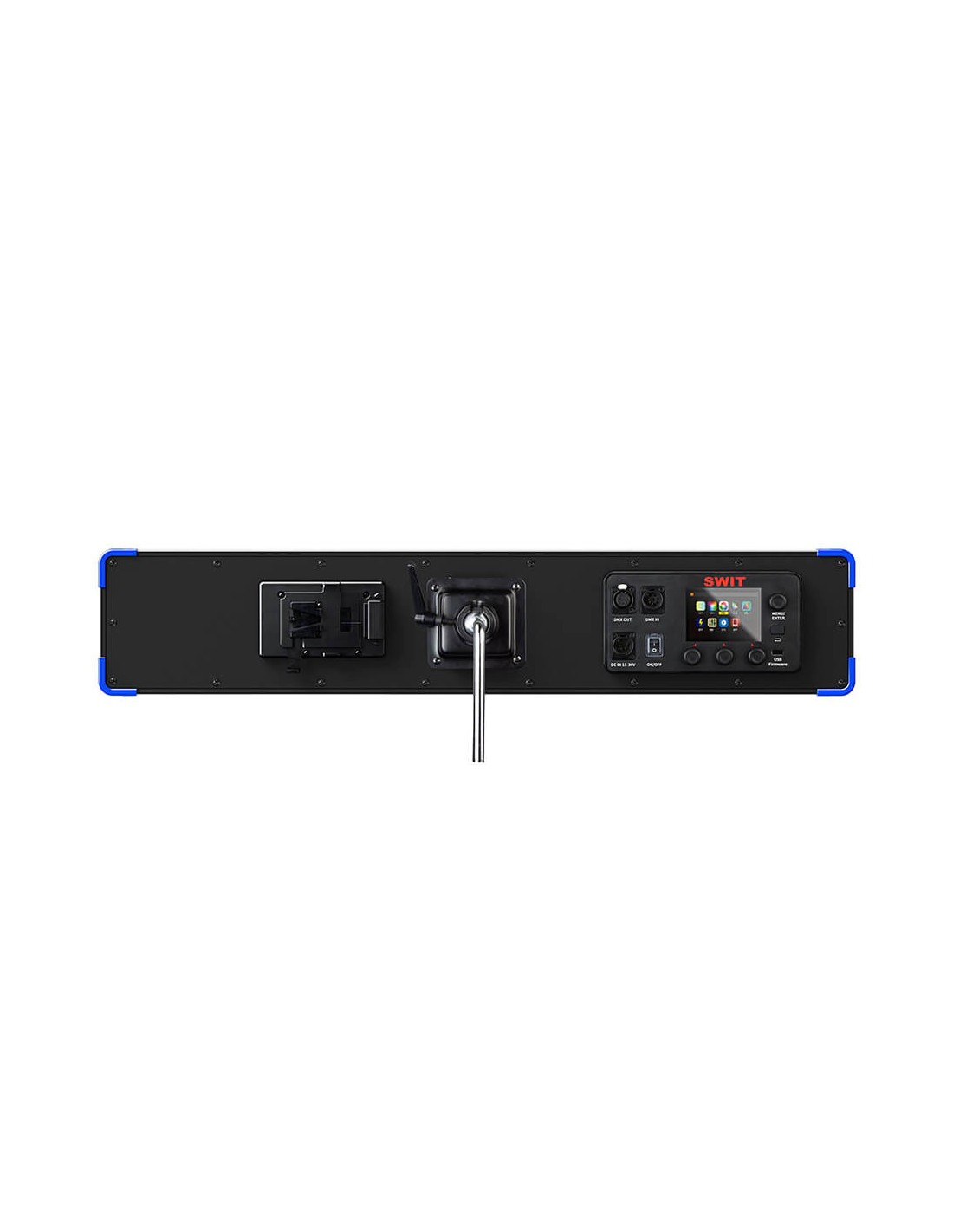

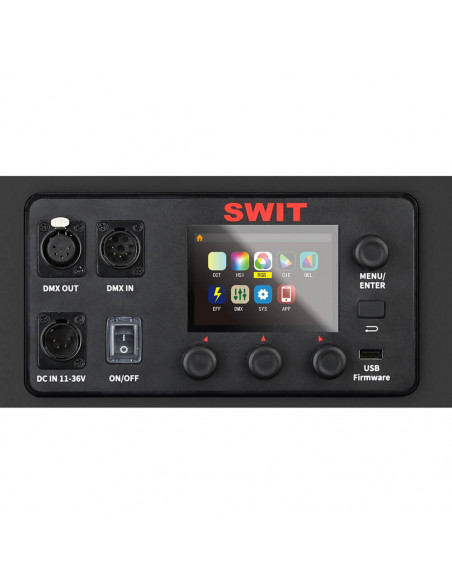

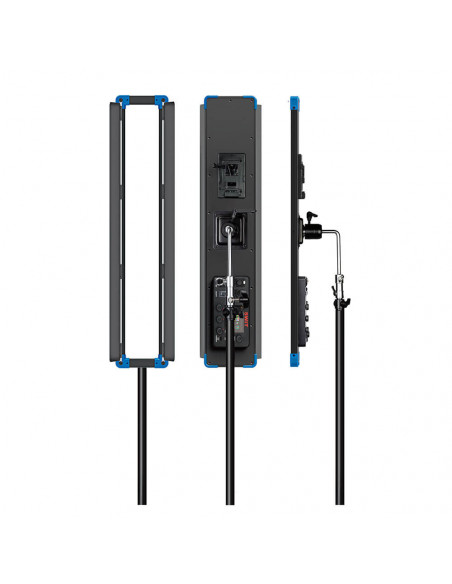

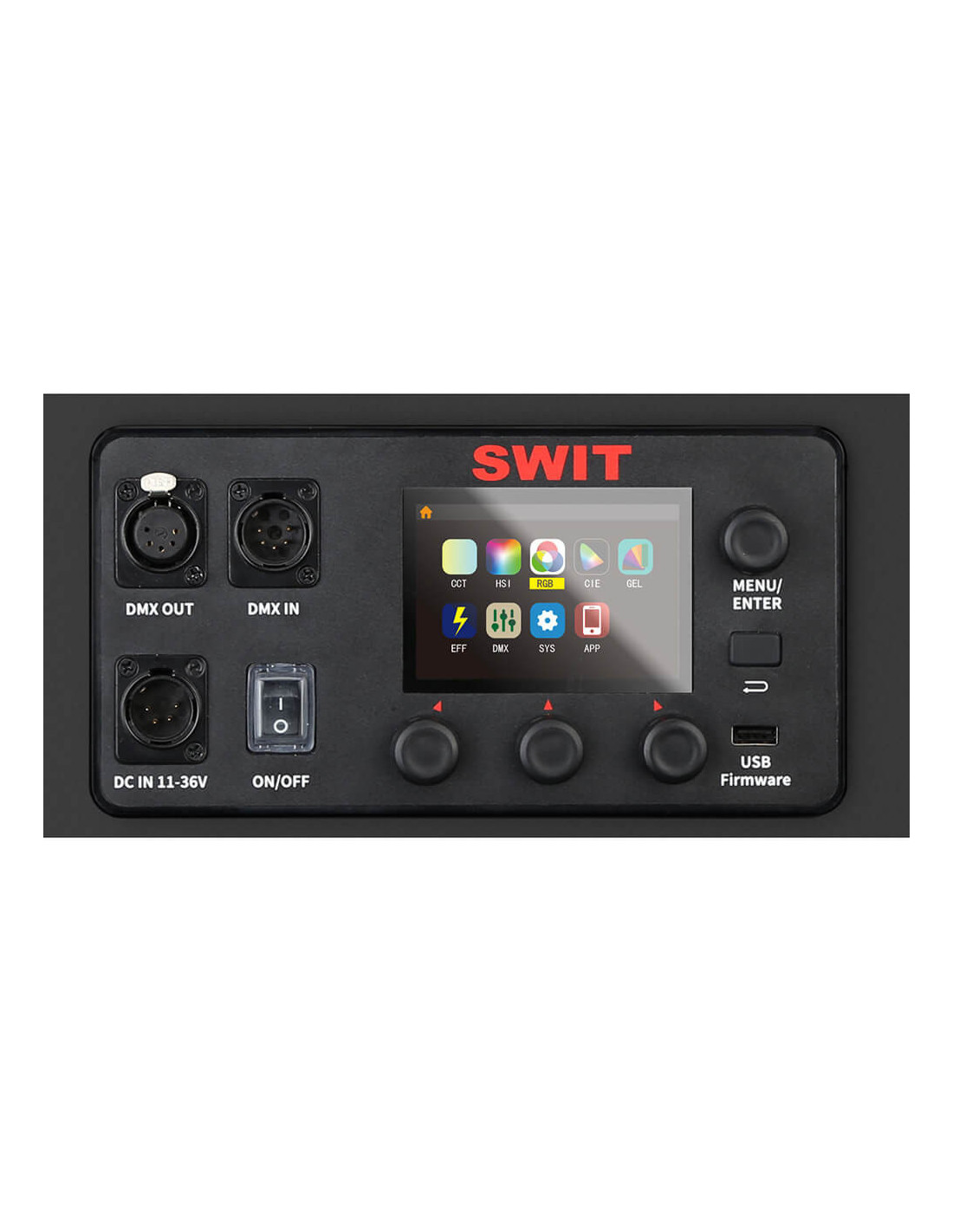

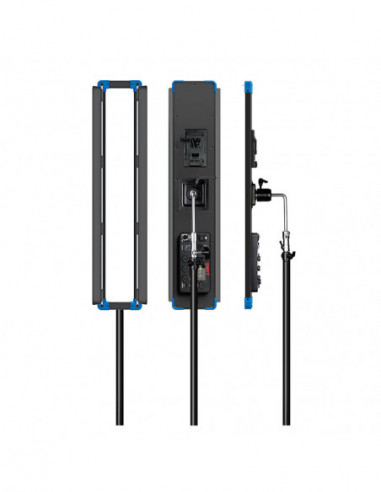

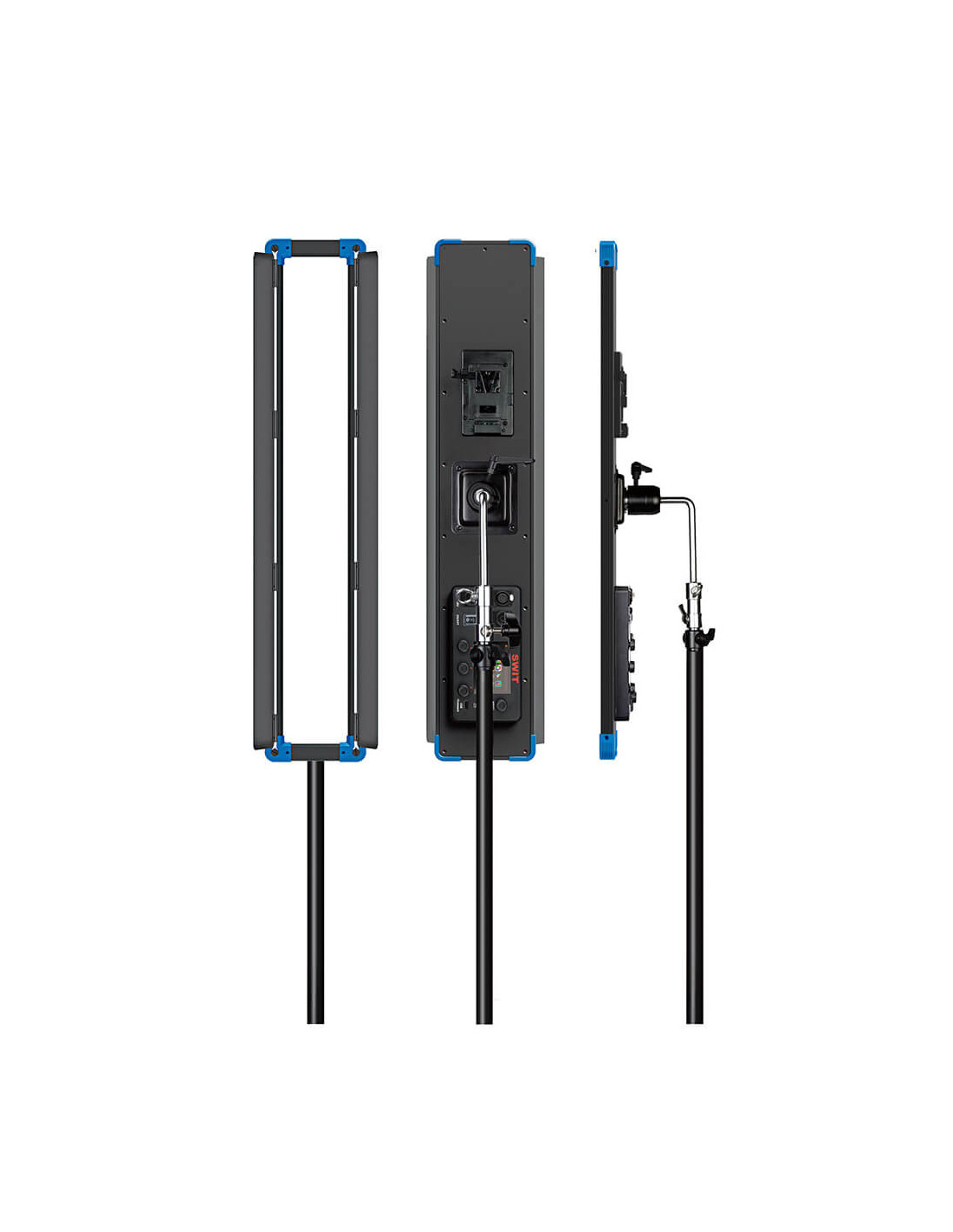

With SWIT unique Edge Mounted SMD and 90° high efficient light guide tech, the VANGO-100L has a ultra slim size to only 21mm thickness, and diffused to soft light to paint the entire environment. The regular RGB panels are high bright in CCT mode, but much lower in RGB color mode. That’ s because in a regular RGB light, the RGB color LED and White LED have fixed rates to share the total power of the light, and when output color lights, the RGB LEDs use only 1/3 power. By SWIT unique Time Division Drive tech, full power of the light can be assigned to RGB color LEDs, and greatly increased the intensity of color light. The 100W VANGO-100L color light intensity equals to a regular 300W RGB color light intensity. VANGO-100L rear control panel supports 5-pin DMX in & out, 4-pin XLR DC 11-36V in, and V-mount battery plate (Gold mount for option), and a large color LCD with menu and hot keys for convenient color picking. The USB-A port is for firmware update or user color profile upload, and to power wireless DMX receiver. Download “SWIT Console” APP on IOS App Store or Google PLAY, to connect and control VANGO lights via Bluetooth. The single light package includes: 1x VANGO-100L light with barndoor 1x Swanneck ball head connector 1x AC-DC adaptor 1x Carrying bag Specifications LED: 180pcs RGB + 300pcs W SMD LEDs Illuminance: 1800Lux @ 1m Beam angle: 65° Color Temperature: 2800K～10000K, G/M±1.00 CRI: 96 TLCI: 93 Power: 100W DMX: DMX512, 5pin XLR IN & OUT USB: USB-A power out & firmware update Input voltage: 4pin XLR, DC 11V～34V IN Dimension: 839×163×21mm Lighting area: 780×104mm weight: Net 5.7kg with barndoor; With package 10kg
- 180pcs RGB + 300pcs White SMD-LEDs
- No fan, No noise
- Built-in 20x Rosco and 20x LEE Gels
- On-board V-mount or Gold mount battery plate
- With 2-leaf metal barn doors
With SWIT unique Edge Mounted SMD and 90° high efficient light guide tech, the VANGO-100L has a ultra slim size to only 21mm thickness, and diffused to soft light to paint the entire environment. The regular RGB panels are high bright in CCT mode, but much lower in RGB color mode. That’ s because in a regular RGB light, the RGB color LED and White LED have fixed rates to share the total power of the light, and when output color lights, the RGB LEDs use only 1/3 power. By SWIT unique Time Division Drive tech, full power of the light can be assigned to RGB color LEDs, and greatly increased the intensity of color light. The 100W VANGO-100L color light intensity equals to a regular 300W RGB color light intensity. VANGO-100L rear control panel supports 5-pin DMX in & out, 4-pin XLR DC 11-36V in, and V-mount battery plate (Gold mount for option), and a large color LCD with menu and hot keys for convenient color picking. The USB-A port is for firmware update or user color profile upload, and to power wireless DMX receiver. Download “SWIT Console” APP on IOS App Store or Google PLAY, to connect and control VANGO lights via Bluetooth. The single light package includes: 1x VANGO-100L light with barndoor 1x Swanneck ball head connector 1x AC-DC adaptor 1x Carrying bag Specifications LED: 180pcs RGB + 300pcs W SMD LEDs Illuminance: 1800Lux @ 1m Beam angle: 65° Color Temperature: 2800K～10000K, G/M±1.00 CRI: 96 TLCI: 93 Power: 100W DMX: DMX512, 5pin XLR IN & OUT USB: USB-A power out & firmware update Input voltage: 4pin XLR, DC 11V～34V IN Dimension: 839×163×21mm Lighting area: 780×104mm weight: Net 5.7kg with barndoor; With package 10kg
