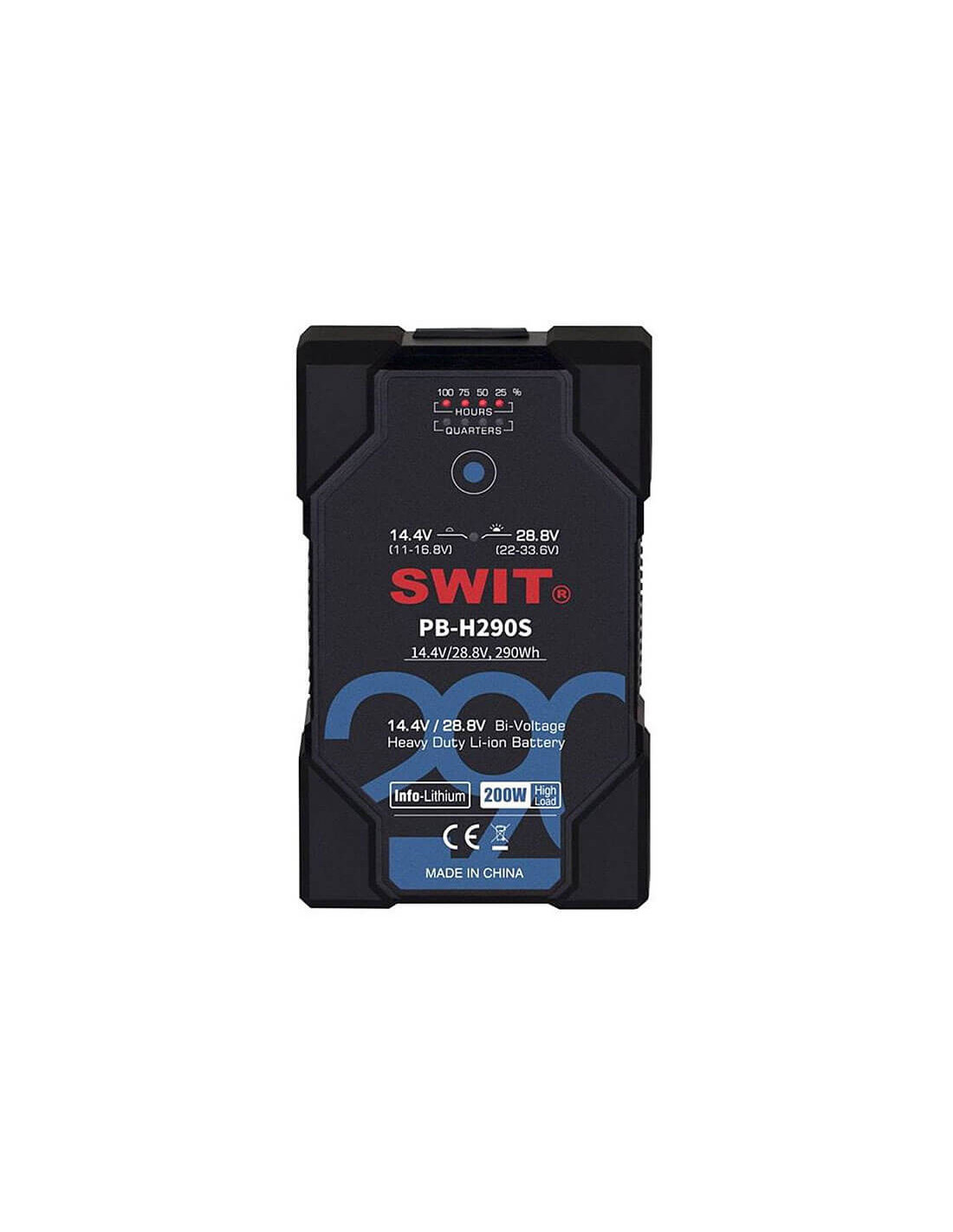

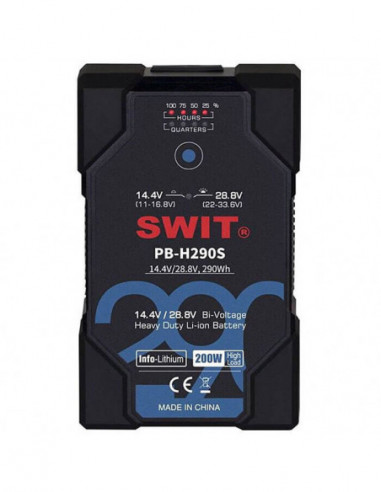

SWIT PB-H290S 290Wh V-lock Bi-Voltage

English description below
Swit PB-R290S 290Wh Heavy Duty Digital Battery Pack The Swit PB-R290S is a 290Wh V-mount battery, for Cine and ENG cameras, with latest designed dual housing heavy duty structure, drop-proof. The battery supports high load, fast charging and digital power info display, which is an ideal power solution for field applications. PB-R290S has innovative dual housing structure: the inner cell cage and outer anti-shock housing with rubber covers. The new structure makes the battery quite strong, anti-shock, protects the battery from drop-off accident. Consists of 24pcs high class 18650 battery cells, and reaches 290Wh / 20.1Ah high capacity. Can run approx 11 hours for normal ENG cameras, and approx 3.5 hours for ARRI ALEXA. Normal Li-ion batteries offer 100W/8A output and suitable for most ENG cameras, but the Cine Cameras such as ALEXA require around 85W high draw which is too heavy for the normal Li-ion batteries: the battery life will be reduced if long time full draw powering. Moreover, if there’re monitor, lighting work together, and total power will be above 100W, and the normal batteries cannot draw completely. Using PB-R290S high-load battery, you can get MAX 200W/16A constant power output, which can drive more high power cameras, lightings and other equipments easily, and won’t reduce battery life during long time high power output. A D-tap DC output socket is equipped on the top of the battery pack, to power the other on-camera equipments together. The Max output current of D-tap is 10A. Specifications:  Nominal Voltage 14.4V Capacity 290Wh/20.1Ah Max output power 200W Max output current 16A (D-tap port 10A) Max charging current 6A fast charging Mount Type V-mount Operation Temperature 0-40°C Net weight Approx 1.51kg Dimensions 162×101×69mm
