English description below
- 2-ch simultaneous charging
- Gives user 85% charge in 1 hour
- Can identify battery type and adjust charging method accordingly
- 6A fast charging for select SWIT batteries
- 3A charging for conventional V-mount batteries

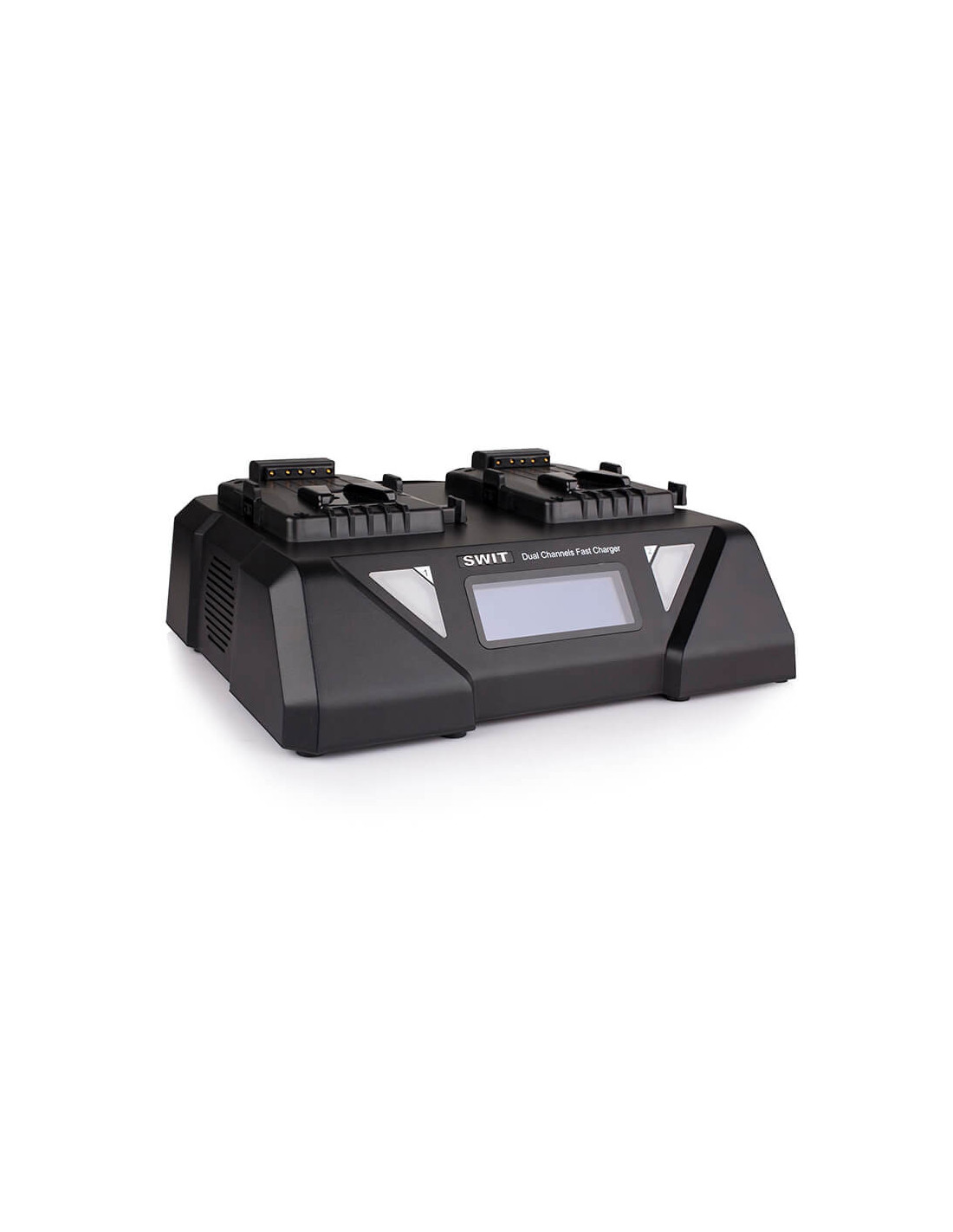

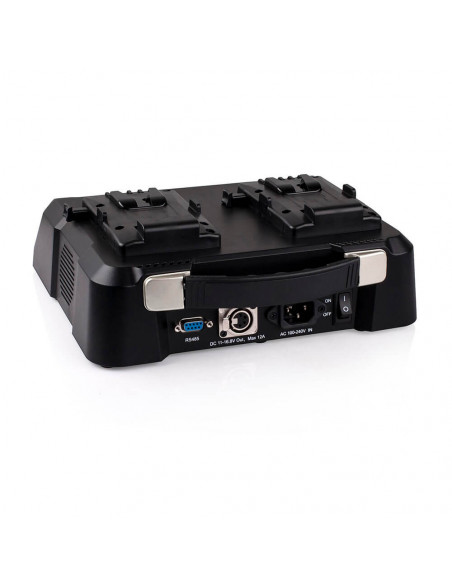

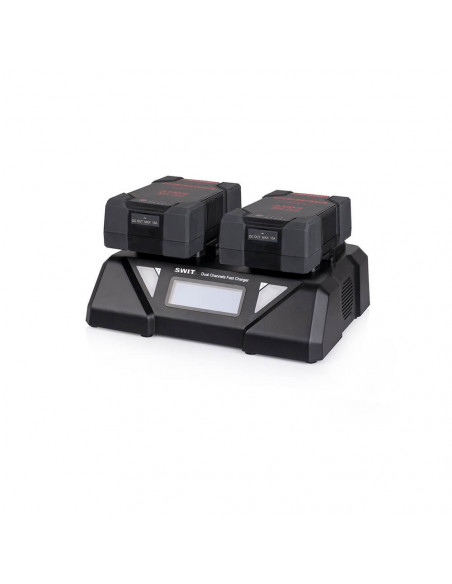

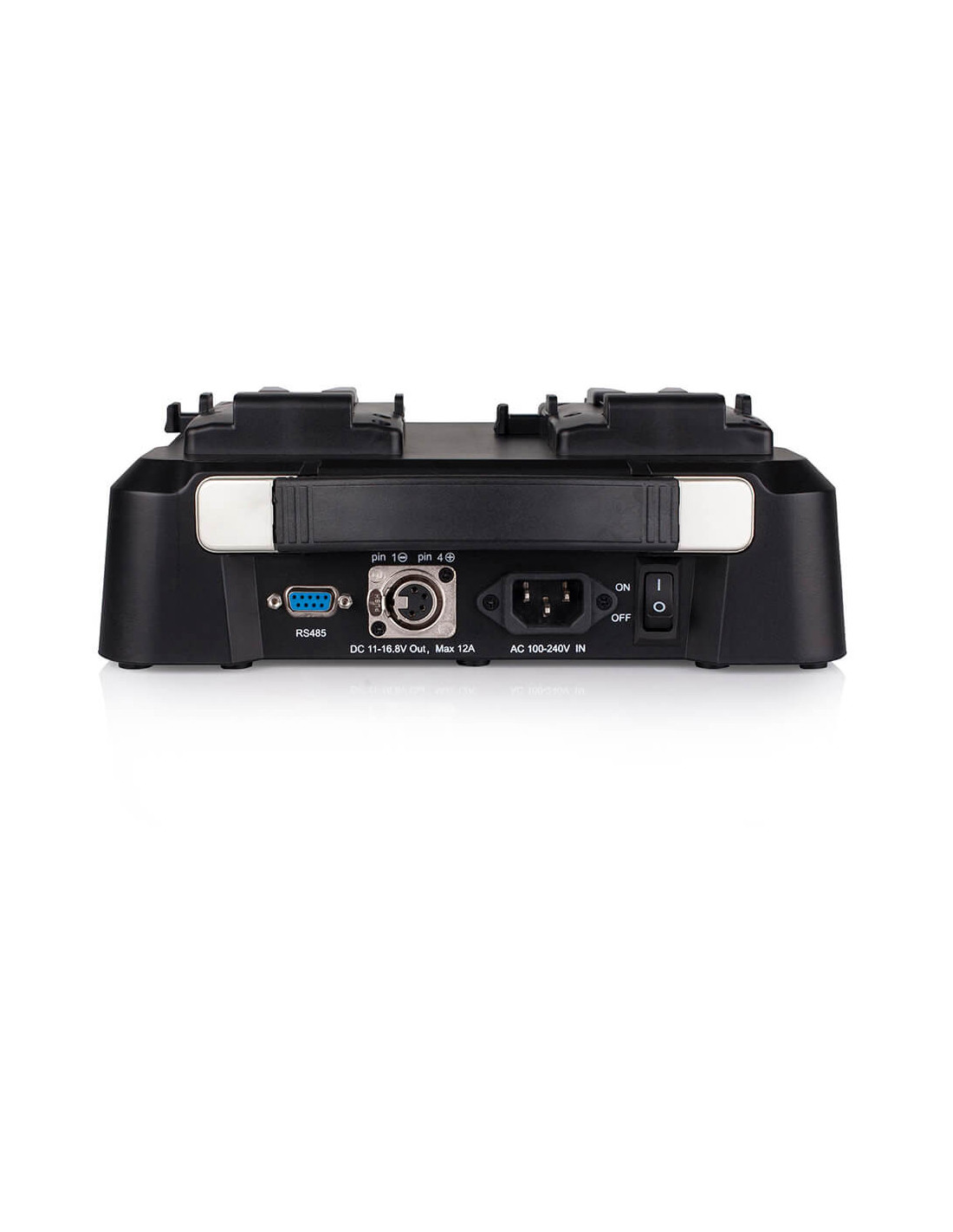

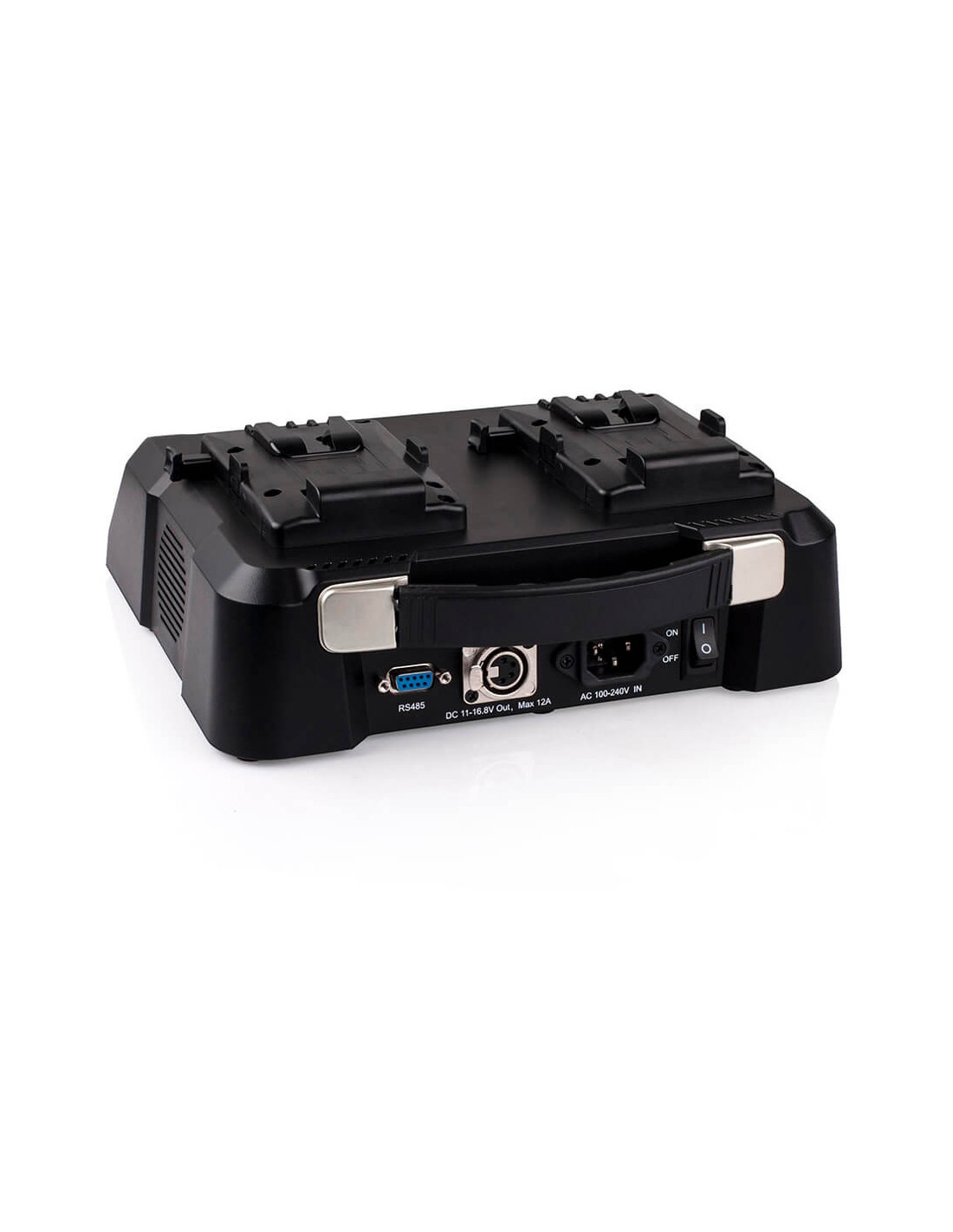

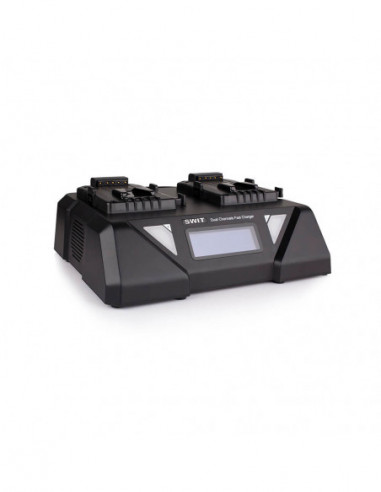

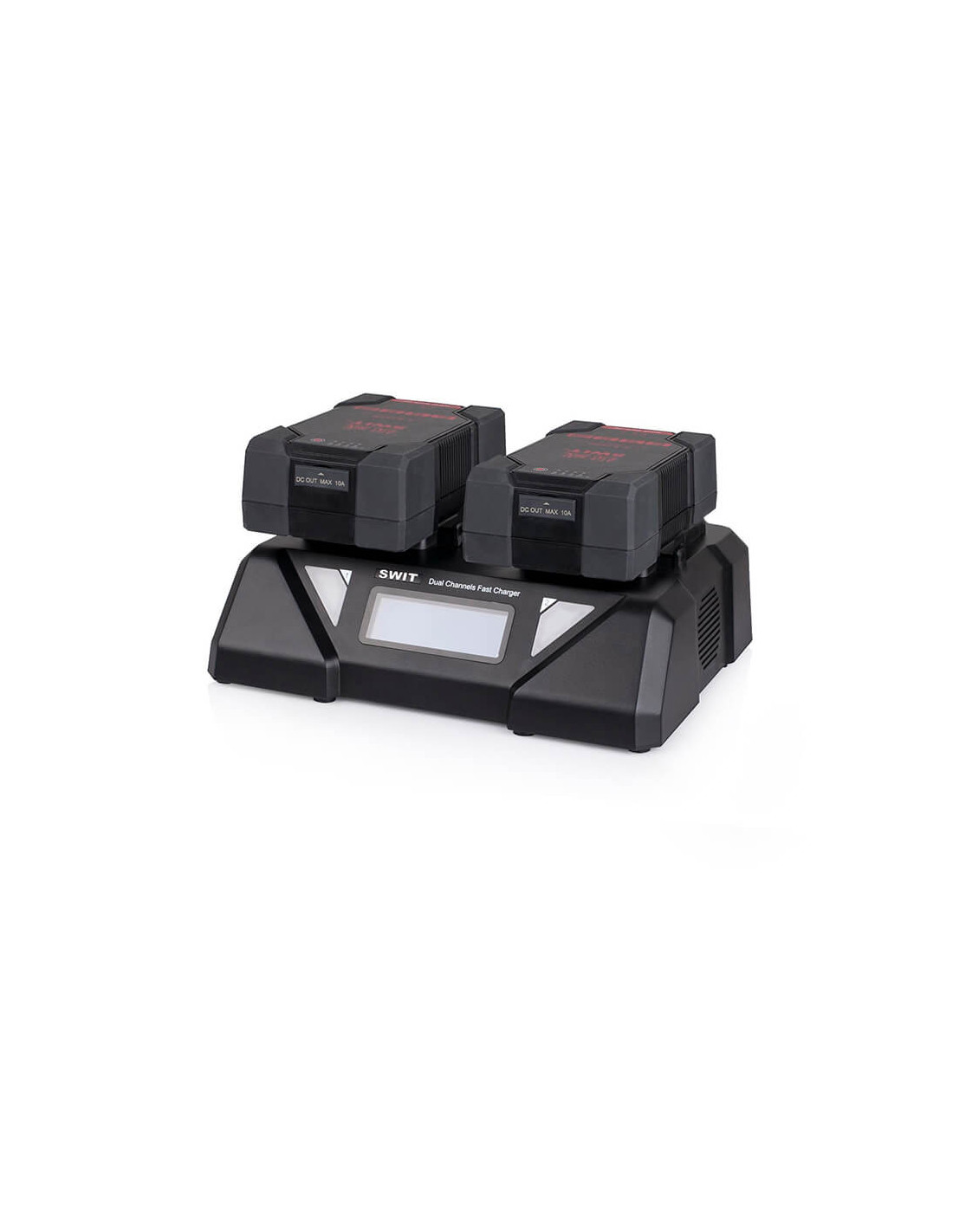

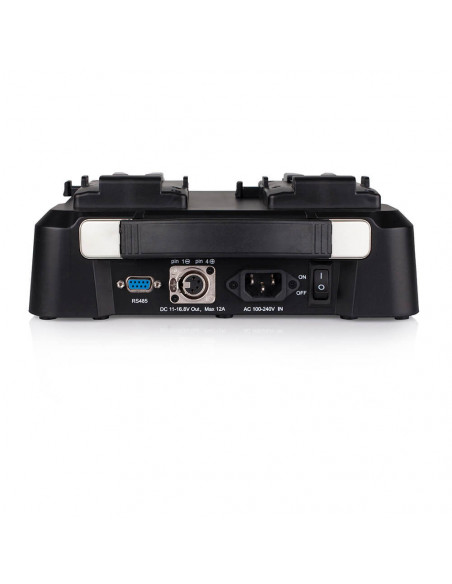

• 2-ch simultaneous charging • Gives user 85% charge in 1 hour • Can identify battery type and adjust charging method accordingly • 6A fast charging for select SWIT batteries • 3A charging for conventional V-mount batteries • Support AC to 4-pin XLR output • Support battery to 4-pin XLR output • LCD display charging/adapting info The S-3812S fast charger can charge 2 V-mount batteries simultaneously at Max 6A fast charging current when partnered with the new SWIT fast charge V-mount battery range. The charging speed is twice as fast than normal V-mount chargers. The following battery models support 6A fast charging: S-8340S, S-8360S, D-8161S. For other batteries, the charging current is 3A. AC-DC Adapting Output The S-3812S supports 1-ch AC-DC adapting output via 4-pin XLR port. With the S-7102 (4-pin XLR female to male) cable, it can supply 16.8V DC power to other equipment up to a maximum load of 200W/12A. When the adapting load is less than 100W, the S-3812S quick charger can still charge the battery simultaneously. (With 2 batteries, the charge is sequential). Battery-DC Adapting Output You can also mount batteries on to the S-3812S charger, and output DC power via 4-pin XLR port. By S-7102 (4-pin XLR female to male) cable, it can supply 16.8V DC power to the other equipments, Max load 200W/12A. LCD Charging Info Display The S-3812S has an LCD screen to display the real time charging/adapting information The S-3812S has the 3-colour LED indicators for both 2 channels: Red light slowly flashes: The battery is charging Red light fast flashes: The battery is almost fully charged Green light constant: The battery is fully charged Green light flashes: The battery is adapting output Orange light flashes: Battery or Charger has an error What´s in the box: Battery Charging/Discharging status Real time capacity and percentage Real time Voltage/Current Remaining time until fully charged Remaining time until fully discharged Battery cycle times Adapting output current and power Specification: Input: 100~240VA, 50/60Hz Power consumption: Max 260W Charging output: DC 16.8V, Max 6A×2-ch Adapting output: DC 16.8V, Max 12A Working temperature: 0°C～+40°C Working humidity: 10%～90% Dimensions: 272mm×246mm×97mm Weight: Approx. 1.85kg
