SWIT KA-A30B B-Mount Hotswap Plate for SXT/LF/65

English description below

• Dedicated for Alexa SXT/LF/65 install

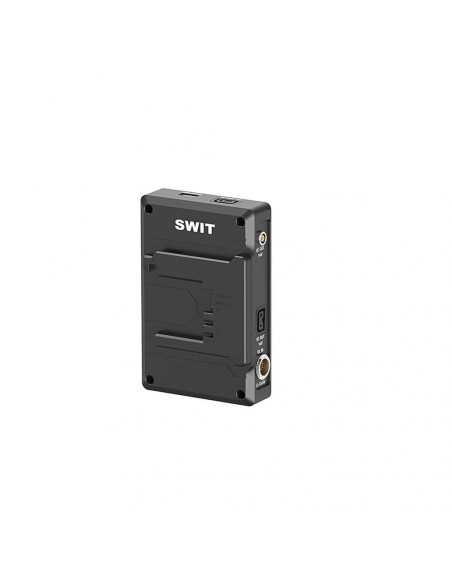

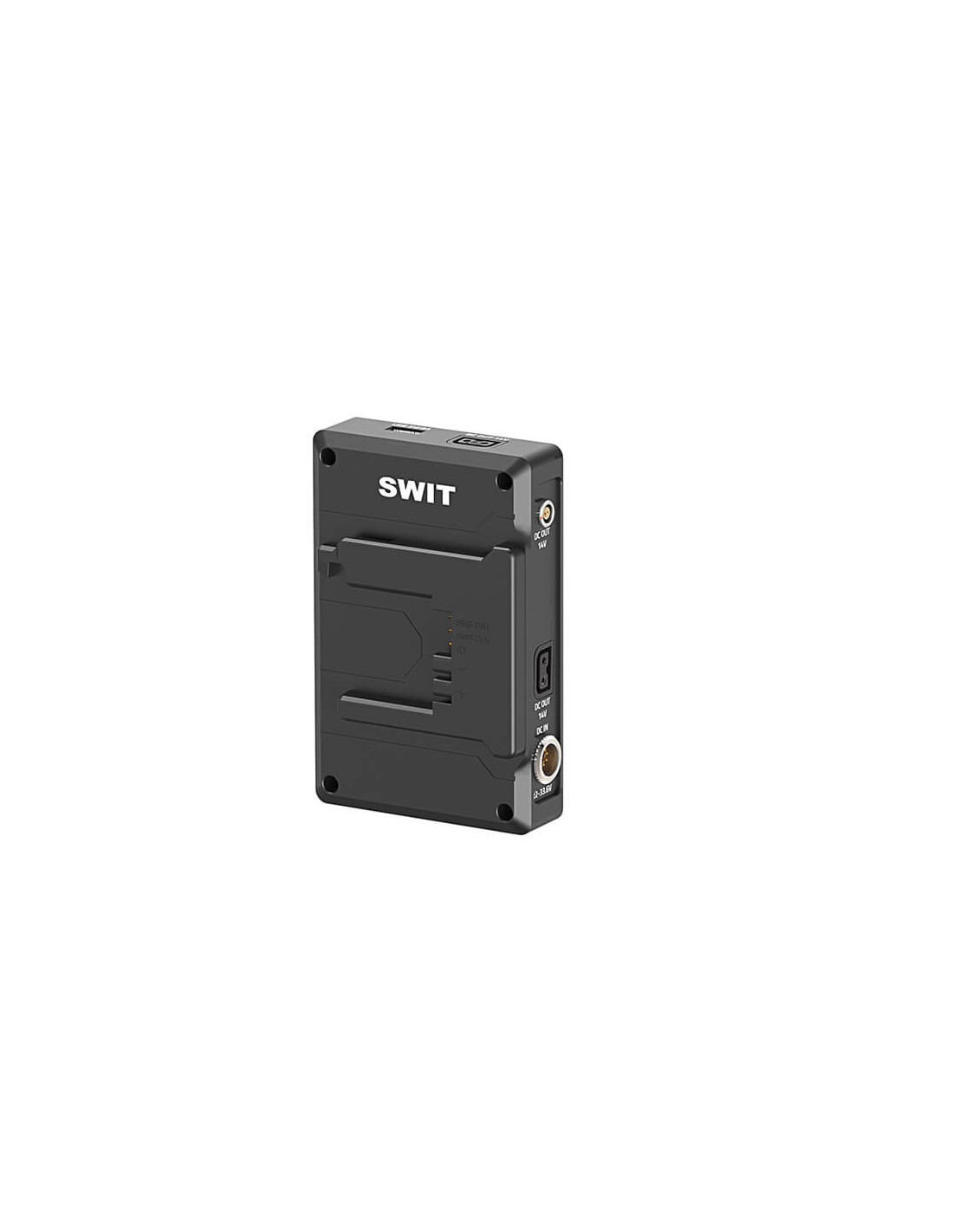

• B-mount battery attach
• 28V, 32Wh 3Ah battery cells inside
• 120 seconds countdown display
• Aluminum CNC unibody housing

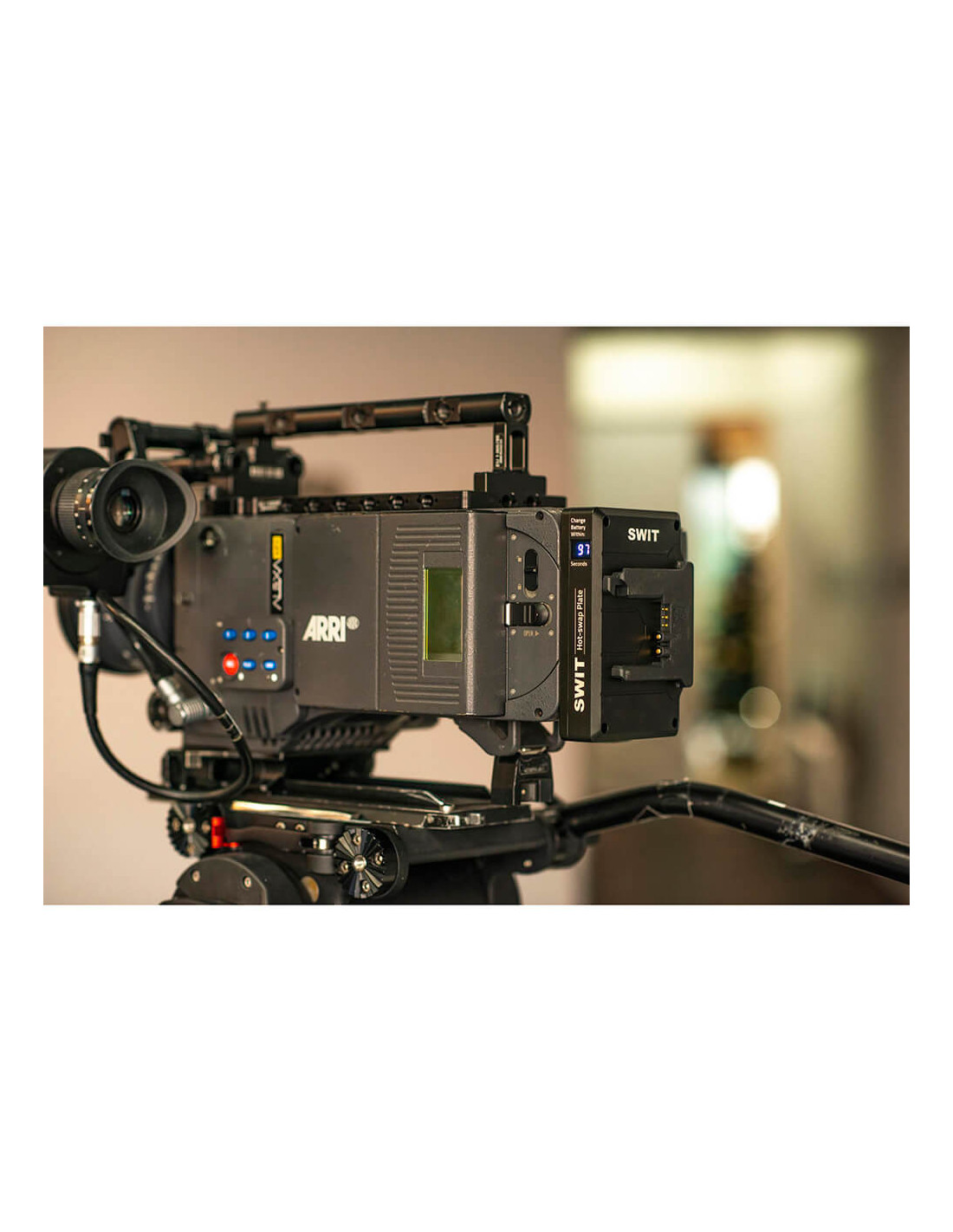

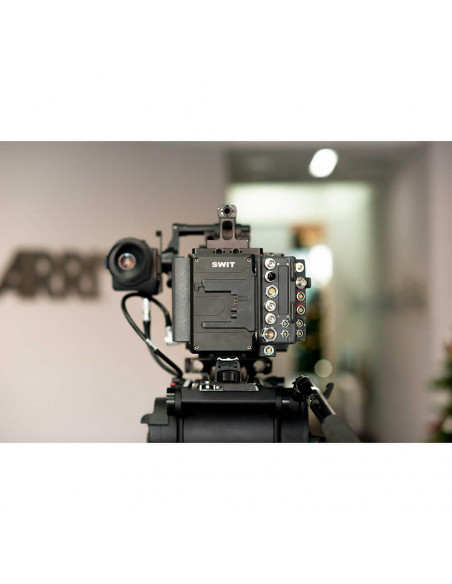

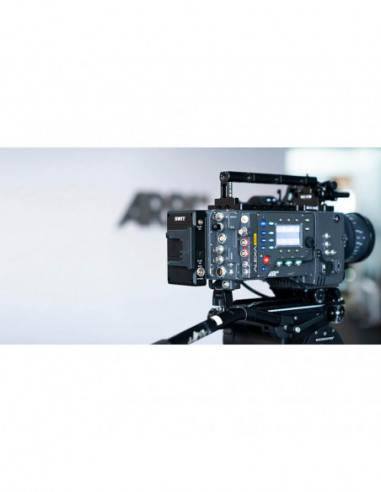

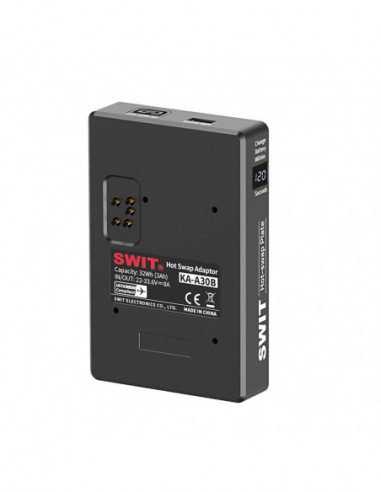

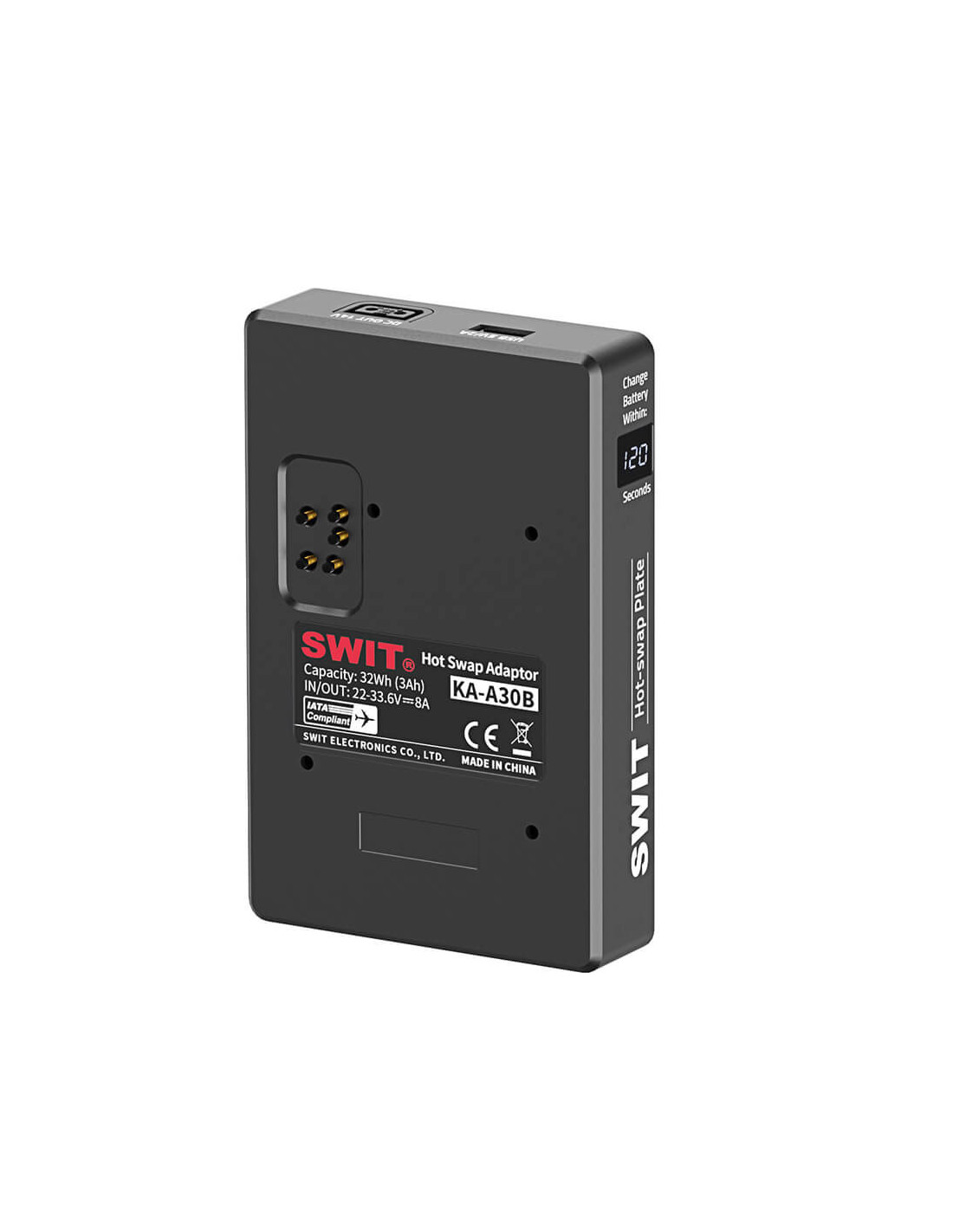

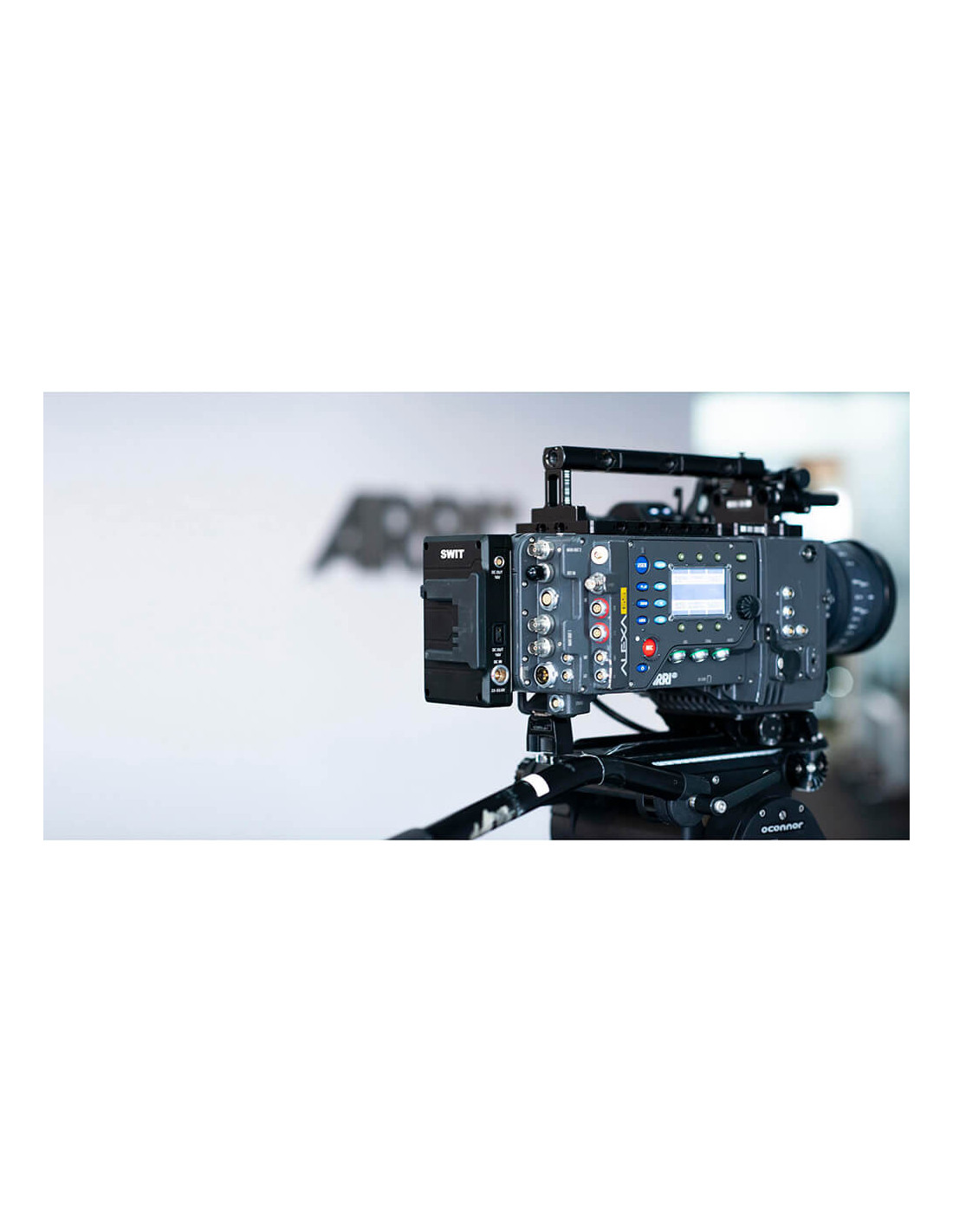

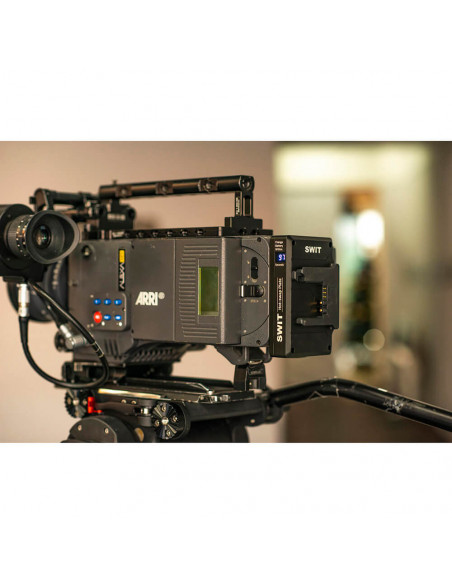

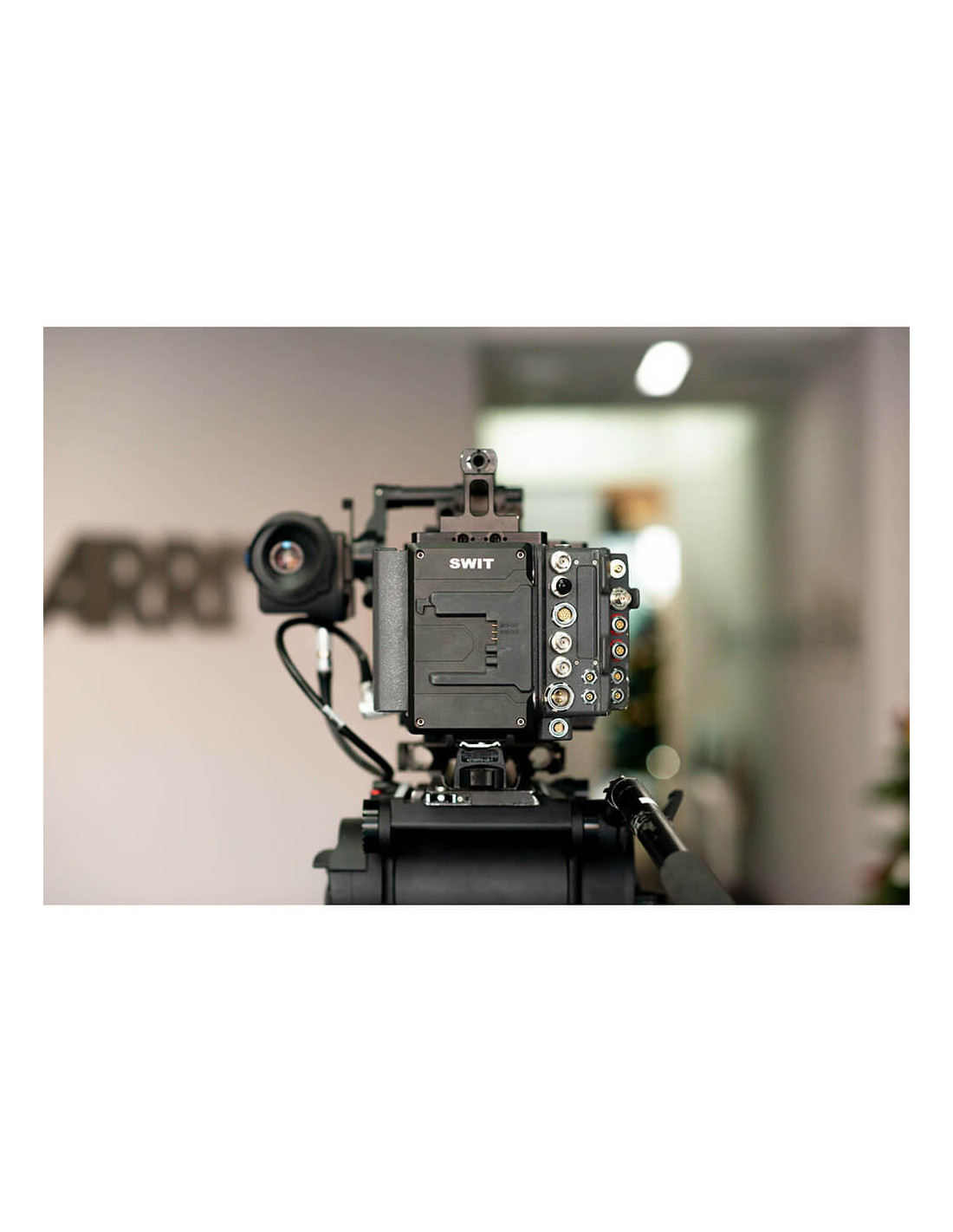

KA-A30B is a B-mount hot-swap plate for ARRI Alexa SXT / LF / 65 install. You don’ t need to switch off the camera when changing battery. Working with 28.8V B-mount battery, the KA-A30B power ALEXA SXT/LF/65 cameras at 28.8V (22-33.6V) by the rear contact pins, and when remove B-mount battery, the KA-A30B output reg. 28V to camera for hotswapping. KA-A30B has 32Wh/3Ah battery cells inside, 200W constant high load, even after 1000 cycle times, the plate can still ensure 2 minutes hot swap time for changing battery. KA-A30B provides an LCD screen to display countdown seconds when changing battery. When battery is removed, the screen will countdown from 120 seconds. You just need to put on a new battery before it count down to 0. The new battery will charge the hotswap plate as well. You can see the countdown seconds will go back to 120 after a period of time. KA-A30B provides: 2x D-tap 14V Reg. output 1x 2-pin LEMO 14V Reg. output 1x USB-A 5V/2A output 1x 8-pin 22-33.6V input (For power station hotswap)
