English description below
- KUWI 5.1-5.9GHz Wireless Technology
- DFS Comply
- 3GSDI & HDMI, with 3GSDI loop out
- 2000ft/600m (Line-of-Sight) distance
- Strong Wall-Cross Performance

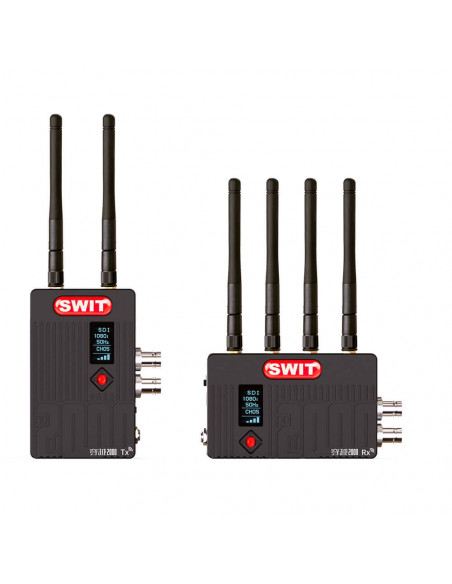

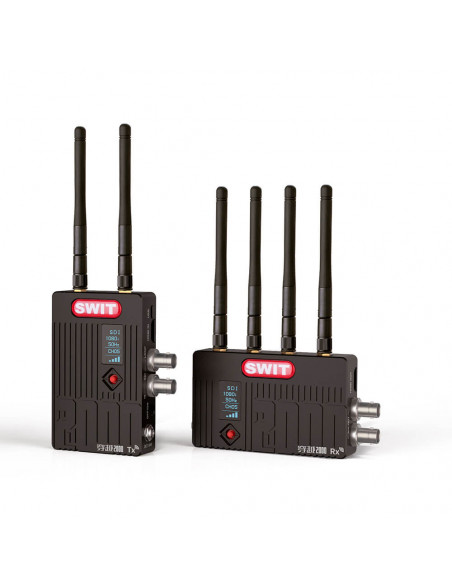

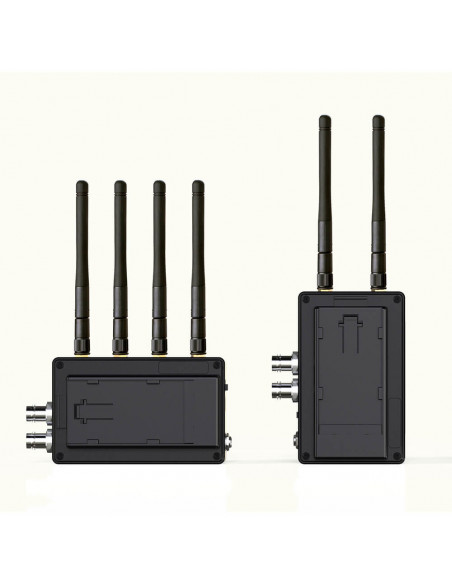

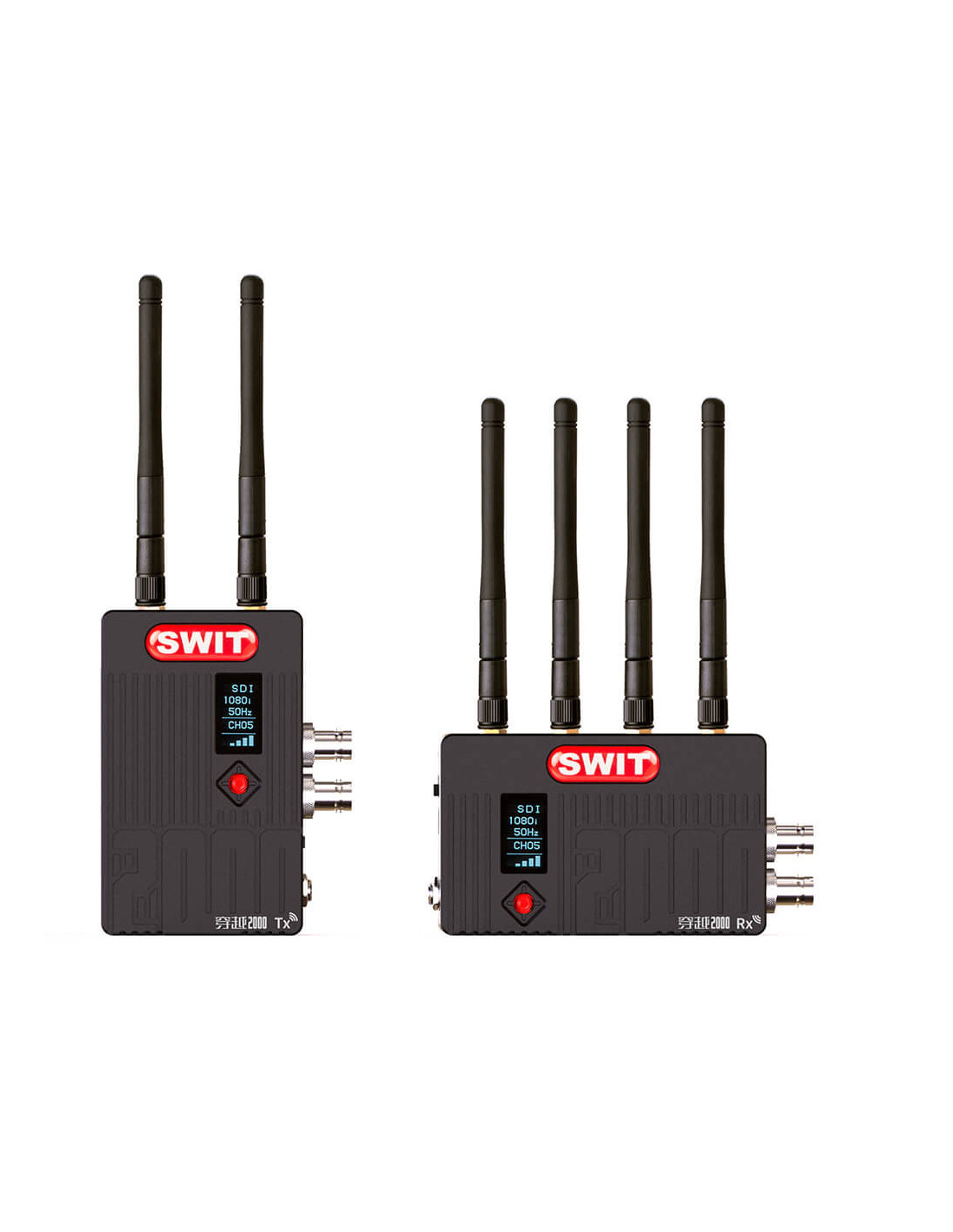

KUWI Wireless Technology SDI&HDMI 2000ft / 600m (LOS) FLOW2000 wireless system is based on SWIT latest KUWI wireless technology, 5.1-5.9GHz license free bands, DFS comply, supports 3G/HD-SDI and HDMI (Max 1080p60) to transmit 2000 feet (600 meters) Line-of-Sight distance. The system is pure hardware connection, plug and play, which is widely used in director moni- toring, drone, ropeway camera, steadicam etc. Input & Output The Transmitter (Tx) has 2 omni antennas, supports 1x 3G/HD-SDI input 1x 3G/HD-SDI loop output 1x HDMI 1.3 input The Receiver (Rx) has 4 omni antennas, supports 2x 3G/HD-SDI output 1x HDMI 1.3 output SDI & HDMI formats: 1080p60, 1080p59.94, 1080p50 1080p23.98, 1080p24; 1080p25, 1080p29.97, 1080p30; 1080psf23.98, 1080psf24 1080i60, 1080i59.94, 1080i50; 720p60, 720p59.94, 720p50 2000ft/600m Transmission Strong Wall-cross Performance FLOW2000 wireless supports 2000ft/600m (Line-of-sight) reliable wireless transmission, and featured stron- ger wall-cross performance due to both RF optimize and image quality optimize, so that will keep video trans- mission without date lost or crash comparing to regular 5GHz wireless transmitters. * Supports SDI & HDMI embedded audio (CH1&2) transmission. OLED Display & Channel Switch DFS Comply The FLOW wireless works under 5.1-5.9GHz, with built-in wireless scanner, and detect wireless condition of all fre- quencies, automatically jump to the best wireless channel to keep reliable connection and transmission, and DFS comply. You can also switch the wireless channels manually from 7 Non-DFS restricted channels. Both Tx and Rx are equipped with OLED to display signal format, wireless channel number and signal strength. Multicast and Double Encryption Support 1 transmitter to 4 receivers reliable multicast mode. The transmitter and receivers are paired and double encrypt- ed by private transmission protocol and by AES128, in order to protect the footages. Stable Connection at Worst Wireless Environmnet The FLOW series adopt professional KUWI 5GHz wireless technology, can keep connected at any complex wireless environment, such as sports stadium, concert, public plaza where full of people, electronic devices or wifi routers. Reclock & Color Reproduction To ensure the quality of black level, signal noise and color re- production of the wireless received signal, the FLOW series wireless receiving supports signal re-clock and accurate color reproduction. USB Firmware Update The FLOW series wireless provides a Micro USB port, supports OTG USB Firmware update for future more functions. Power Supply The power consumtion of Tx and Rx are less than 8W. Both Tx and Rx provide NP-F DV battery plate, and 7-34V lockable DC input. Specifications: Transmitter 3G/HD-SDI input×1, loop output ×1 HDMI 1.3 input×1 Receiver 3G/HD-SDI output×2 HDMI 1.3 output ×1 Video Formats SDI 1080p60, 1080p59.94, 1080p50 1080p23.98, 1080p24; 1080p25, 1080p29.97, 1080p30; 1080psf23.98, 1080psf24 1080i60, 1080i59.94, 1080i50; 720p60, 720p59.94, 720p50 HDMI 1080p60, 1080p59.94, 1080p50 1080p23.98, 1080p24; 1080p25, 1080p29.97, 1080p30; 1080psf23.98, 1080psf24 1080i60, 1080i59.94, 1080i50; 720p60, 720p59.94, 720p50 Frequency 5.17GHz-5.23GHz and 5.75GHz-5.83GHz RF Modules OFDM 16QAM, 64QAM, QPSK, BPSK RF Power 125mW Transmission Distance 2000 feet / 600 meters (Line of sight) Input voltage Transmitter DC 7-34V Receiver DC 7-34V Power Consumption Transmitter 8W Receiver 8W Dimension(w/o antenna) Transmitter 66×106.5×24.7 (mm) Receiver 106.5×66×24.7 (mm) Net weight Transmitter 236g Receiver 245g Working Temperature 0°C -+40°C
- KUWI 5.1-5.9GHz Wireless Technology
- DFS Comply
- 3GSDI & HDMI, with 3GSDI loop out
- 2000ft/600m (Line-of-Sight) distance
- Strong Wall-Cross Performance
• KUWI 5.1-5.9GHz Wireless Technology • DFS Comply • 3GSDI & HDMI, with 3GSDI loop out • 2000ft/600m (Line-of-Sight) distance • Strong Wall-Cross Performance • 2-ch SDI/HDMI audio transmission • OLED info and channel switching • Support 3-4 pairs working in one location • Multicast - 1 transmitter to Max 4 receivers • Wireless protocol & content double encryption • Reclock and accurate color reproduction KUWI Wireless Technology SDI&HDMI 2000ft / 600m (LOS) FLOW2000 wireless system is based on SWIT latest KUWI wireless technology, 5.1-5.9GHz license free bands, DFS comply, supports 3G/HD-SDI and HDMI (Max 1080p60) to transmit 2000 feet (600 meters) Line-of-Sight distance. The system is pure hardware connection, plug and play, which is widely used in director moni- toring, drone, ropeway camera, steadicam etc. Input & Output The Transmitter (Tx) has 2 omni antennas, supports 1x 3G/HD-SDI input 1x 3G/HD-SDI loop output 1x HDMI 1.3 input The Receiver (Rx) has 4 omni antennas, supports 2x 3G/HD-SDI output 1x HDMI 1.3 output SDI & HDMI formats: 1080p60, 1080p59.94, 1080p50 1080p23.98, 1080p24; 1080p25, 1080p29.97, 1080p30; 1080psf23.98, 1080psf24 1080i60, 1080i59.94, 1080i50; 720p60, 720p59.94, 720p50 2000ft/600m Transmission Strong Wall-cross Performance FLOW2000 wireless supports 2000ft/600m (Line-of-sight) reliable wireless transmission, and featured stron- ger wall-cross performance due to both RF optimize and image quality optimize, so that will keep video trans- mission without date lost or crash comparing to regular 5GHz wireless transmitters. * Supports SDI & HDMI embedded audio (CH1&2) transmission. OLED Display & Channel Switch DFS Comply The FLOW wireless works under 5.1-5.9GHz, with built-in wireless scanner, and detect wireless condition of all fre- quencies, automatically jump to the best wireless channel to keep reliable connection and transmission, and DFS comply. You can also switch the wireless channels manually from 7 Non-DFS restricted channels. Both Tx and Rx are equipped with OLED to display signal format, wireless channel number and signal strength. Multicast and Double Encryption Support 1 transmitter to 4 receivers reliable multicast mode. The transmitter and receivers are paired and double encrypt- ed by private transmission protocol and by AES128, in order to protect the footages. Stable Connection at Worst Wireless Environmnet The FLOW series adopt professional KUWI 5GHz wireless technology, can keep connected at any complex wireless environment, such as sports stadium, concert, public plaza where full of people, electronic devices or wifi routers. Reclock & Color Reproduction To ensure the quality of black level, signal noise and color re- production of the wireless received signal, the FLOW series wireless receiving supports signal re-clock and accurate color reproduction. USB Firmware Update The FLOW series wireless provides a Micro USB port, supports OTG USB Firmware update for future more functions. Power Supply The power consumtion of Tx and Rx are less than 8W. Both Tx and Rx provide NP-F DV battery plate, and 7-34V lockable DC input. Specifications: Transmitter 3G/HD-SDI input×1, loop output ×1 HDMI 1.3 input×1 Receiver 3G/HD-SDI output×2 HDMI 1.3 output ×1 Video Formats SDI 1080p60, 1080p59.94, 1080p50 1080p23.98, 1080p24; 1080p25, 1080p29.97, 1080p30; 1080psf23.98, 1080psf24 1080i60, 1080i59.94, 1080i50; 720p60, 720p59.94, 720p50 HDMI 1080p60, 1080p59.94, 1080p50 1080p23.98, 1080p24; 1080p25, 1080p29.97, 1080p30; 1080psf23.98, 1080psf24 1080i60, 1080i59.94, 1080i50; 720p60, 720p59.94, 720p50 Frequency 5.17GHz-5.23GHz and 5.75GHz-5.83GHz RF Modules OFDM 16QAM, 64QAM, QPSK, BPSK RF Power 125mW Transmission Distance 2000 feet / 600 meters (Line of sight) Input voltage Transmitter DC 7-34V Receiver DC 7-34V Power Consumption Transmitter 8W Receiver 8W Dimension(w/o antenna) Transmitter 66×106.5×24.7 (mm) Receiver 106.5×66×24.7 (mm) Net weight Transmitter 236g Receiver 245g Working Temperature 0°C -+40°C
