English description below
- Dual 9 IPS LCD panel;1920 x 1200 resolution, 800:1 contrast;19 4U rack mounting, ±30° rotatable
- 2K/3G/HD/SD-SDI, HDMI, CVBS monitoring
- 16-channel embedded audio meters with alert
- Select any 2 audio channels to output
- Waveform Y/Cb/Cr/R/G/B and single line

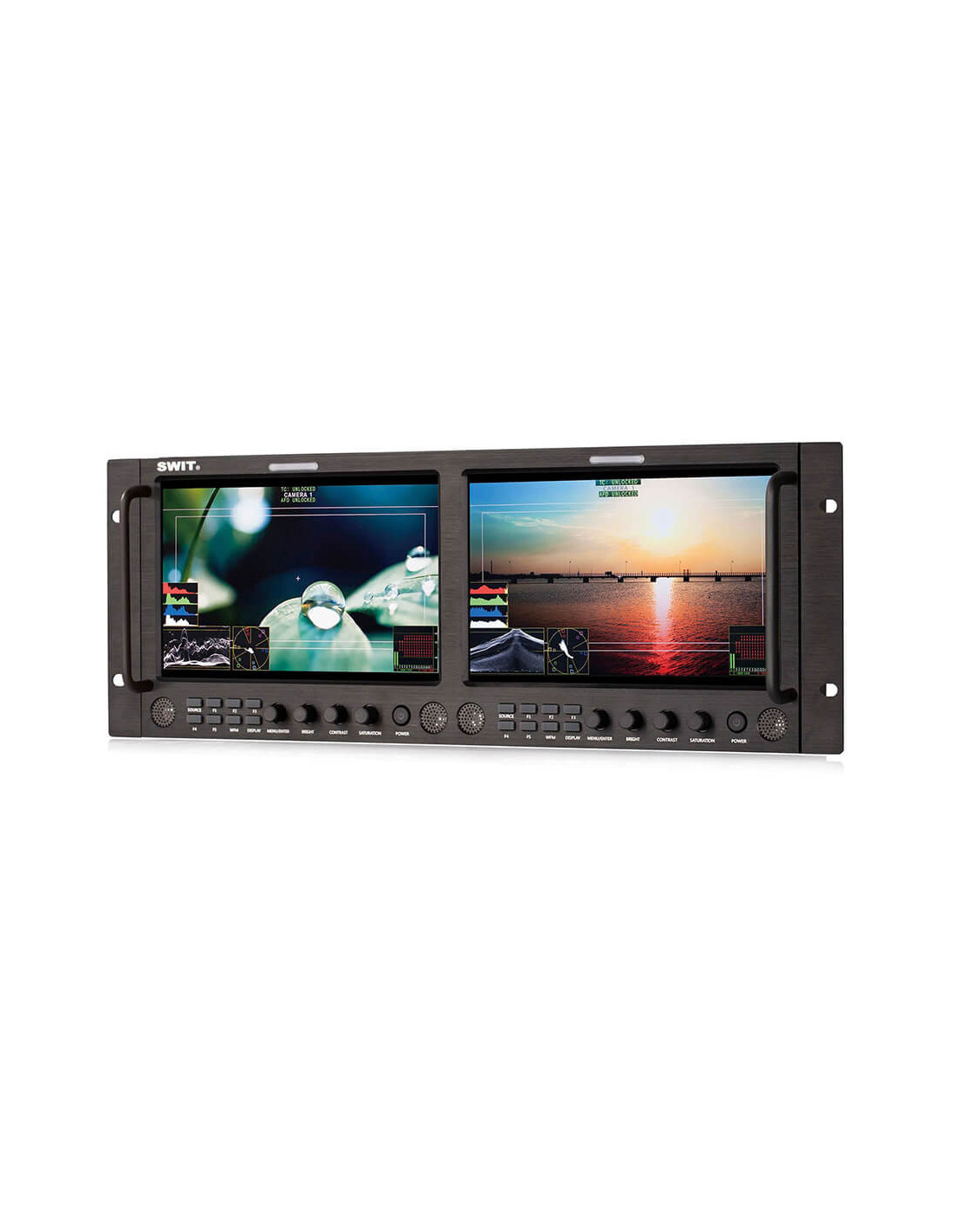

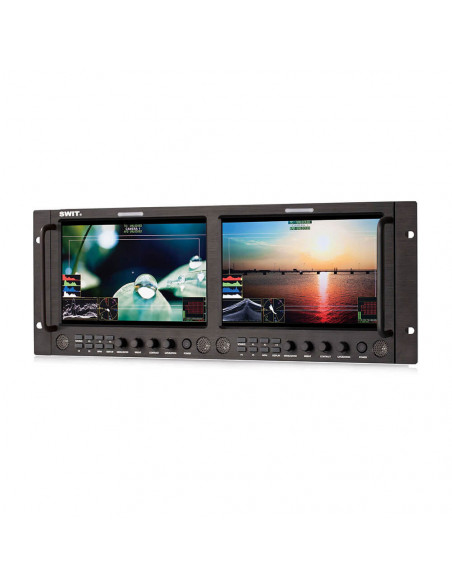

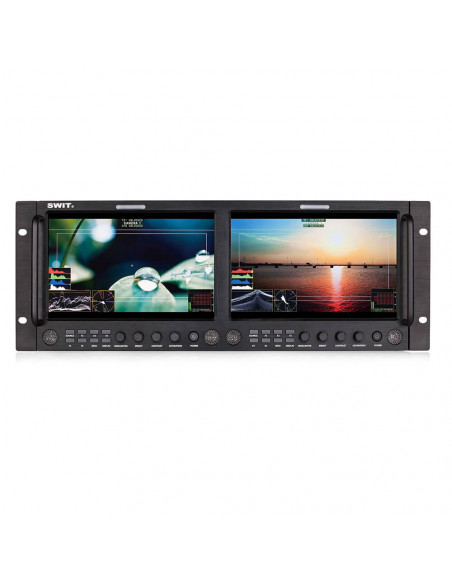

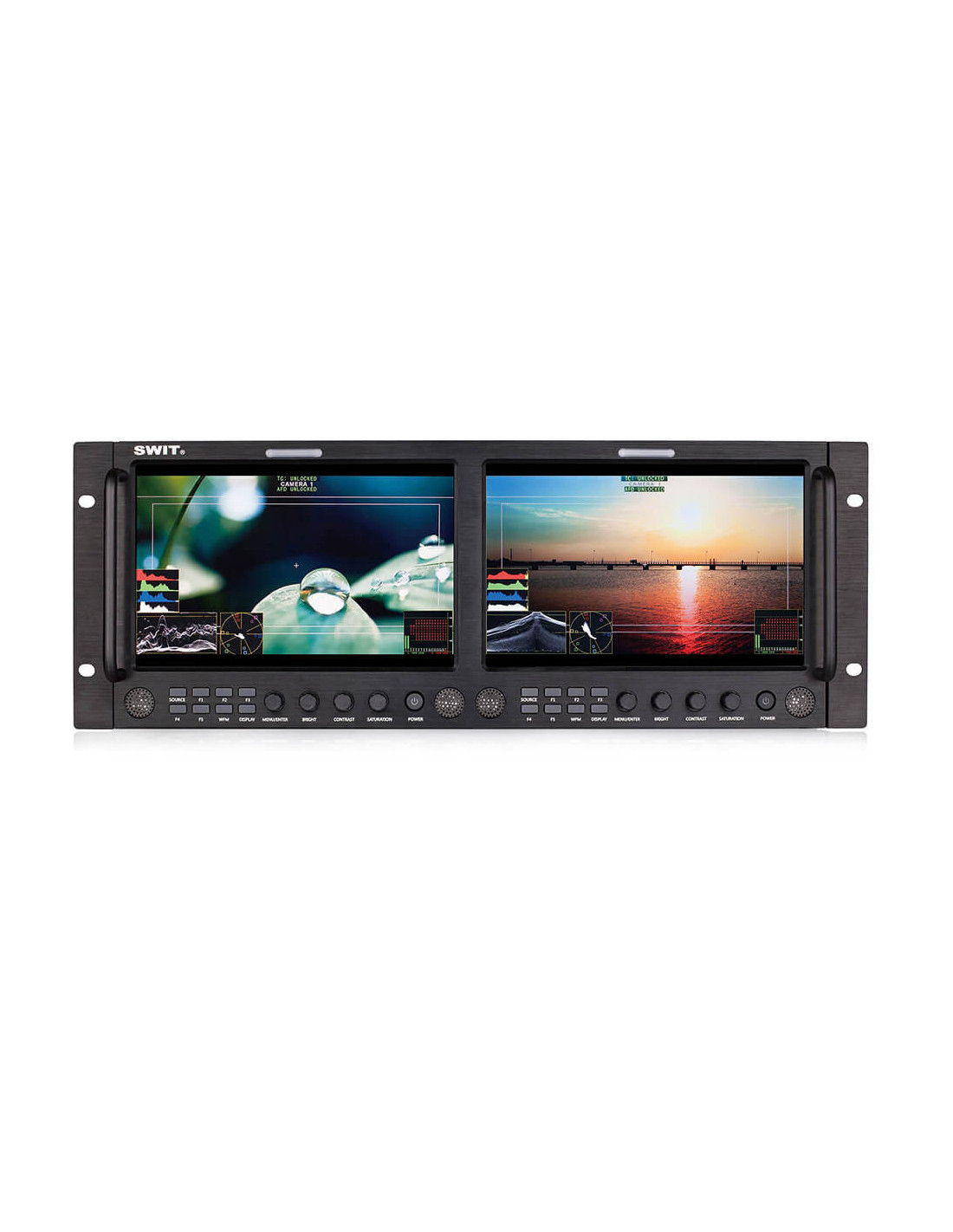

• Dual 9" IPS LCD panel • 1920 x 1200 resolution, 800:1 contrast • 19" 4U rack mounting, ±30° rotatable • 2K/3G/HD/SD-SDI, HDMI, CVBS monitoring • 16-channel embedded audio meters with alert • Select any 2 audio channels to output • Waveform Y/Cb/Cr/R/G/B and single line • Vectorscope, histogram R/G/B/Y • AFD, H/V delay, R/G/B/Mono, false color • TSL UMD and text Tally display • Zebra stripes and peaking focus assist • SDI timecode display • Marker 4:3, 13:9, 15:9, 1.85:1, 2.35:1 • Tally light and GPI control • USB firmware upgrade The M-1093F Dual 9" FHD Waveform Rack LCD Monitor from SWIT features two 9" IPS (In-Plane Switching) LCD panels, with Full HD 1920 x 1200 resolution, LED backlight, 800:1 contrast, and the viewing angle is 170°/170°. The monitor supports built-in HDMI to SDI conversion and also features an SDI loop output port. It supports 6.5 to 24 VDC input. Specifications: Size 2 x 9" / 22.9 cm Display Area 191.52 x 119.70 mm Resolution 1920 x 1200 Aspect Ratio 16:9 (4:3 adjustable) Brightness 450 cd/m2 Contrast 800:1 Color 16.77 million colors Viewing Angle Horizontal: 170° Vertical: 170° Input 2 x BNC: 2K/3G/HD/SD-SDI input BNC: Composite input HDMI: HDMI input 1 x 3.5 mm: Analog audio input Output 2 x BNC: 2K/3G/HD/SD-SDI loop output 1 x BNC: Composite loop output 1 x HDMI: HDMI loop output 1 x 3.5 mm: SDI, HDMI, Analog audio output Video Format CVBS: Converted NTSC/PAL SDI: SMPTE 2048-2: 2048 x 1080p: 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60, 2048 x 1080i: 50 / 59.94 / 60 SMPTE-425M: 1080p: 60 / 59.94 / 50 SMPTE-274M: 1080i: 60 / 59.94 / 50, 1080p: 30 / 29.97 / 25 / 24 / 23.98 SMPTE-RP211: 1080psf: 30 / 29.97 / 25 / 24 / 23.98 SMPTE-296M: 720p: 60 / 59.94 / 50 SMPTE-125M: 480i59.94 ITU-R BT.656: 576i50 HDMI: 1080p: 60/ 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98 1080psf: (30 / 29.97 / 25 / 24 / 23.98 1080i: 60 / 59.94 / 50 720p: 60 / 59.94 / 50 480i / 576i / 480p / 576p Power Consumption ≤36 W Working Voltage DC/Battery 6.5 to 24 V Working Environment Temperature: 32 to 104°F(0 to 40°C) Humidity: 10 to 90% Dimensions 19.1 x 6.9 x 4.4" / 484 x 177 x 113 mm Weight 4.4 lb / 2.8 kg
