English description below
- 23.8” LCD panel
- 1920 x 1080 resolution
- 2 x 2K/3G/HD/SD-SDI, HDMI monitoring
- Y/Pb/Pr, VGA, CVBS monitoring
- Chart positioning / Translucence adjustment

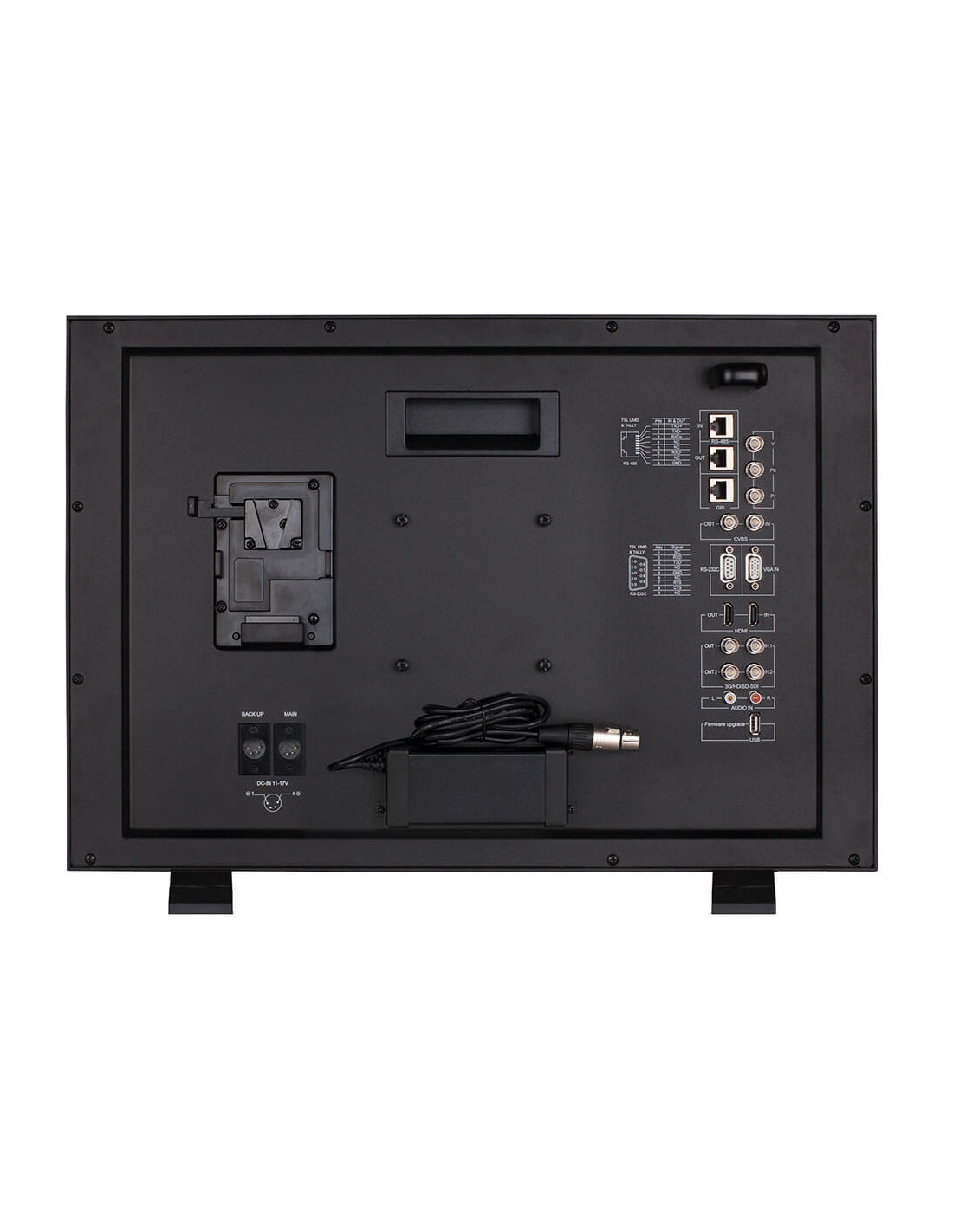

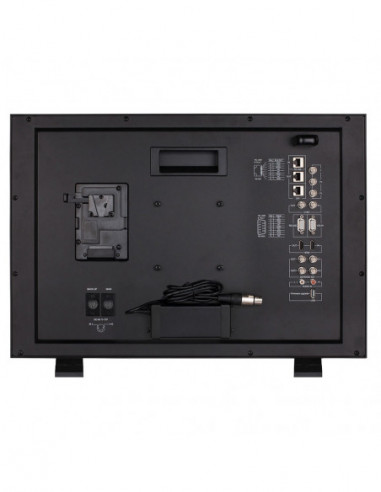

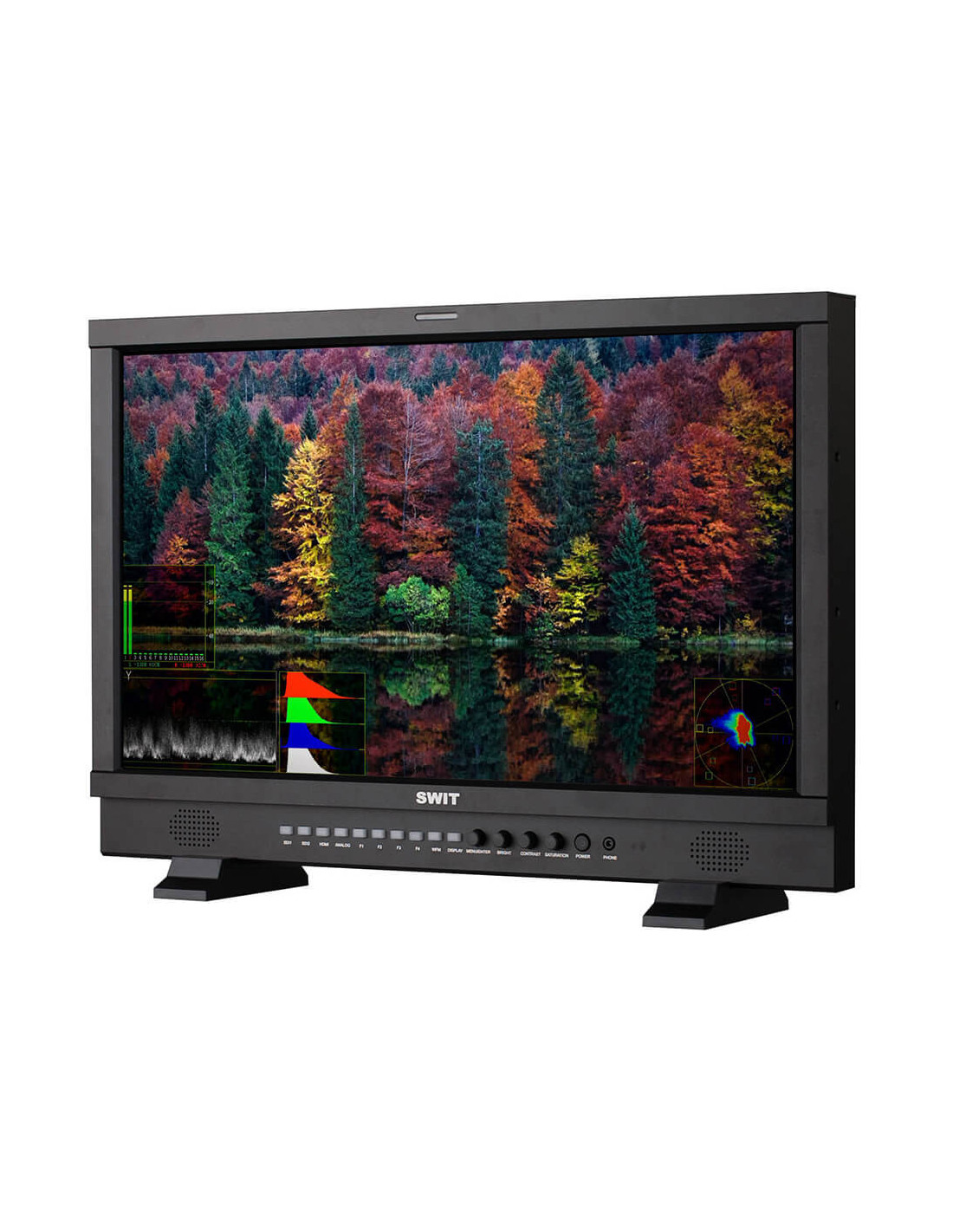

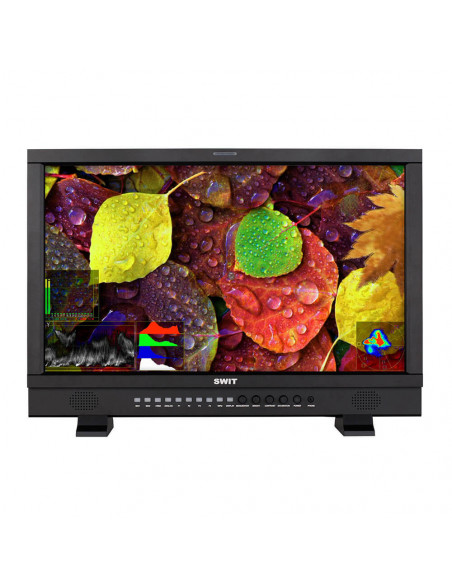

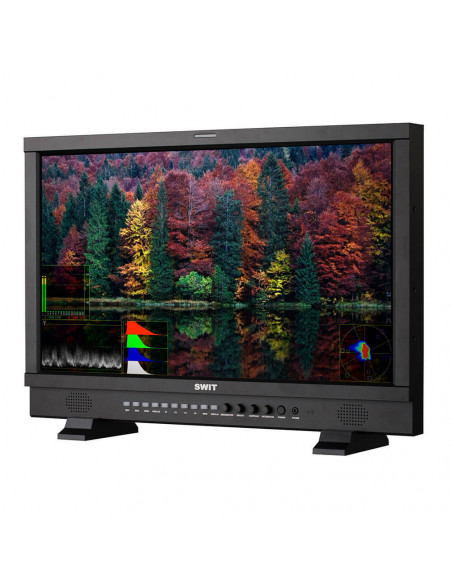

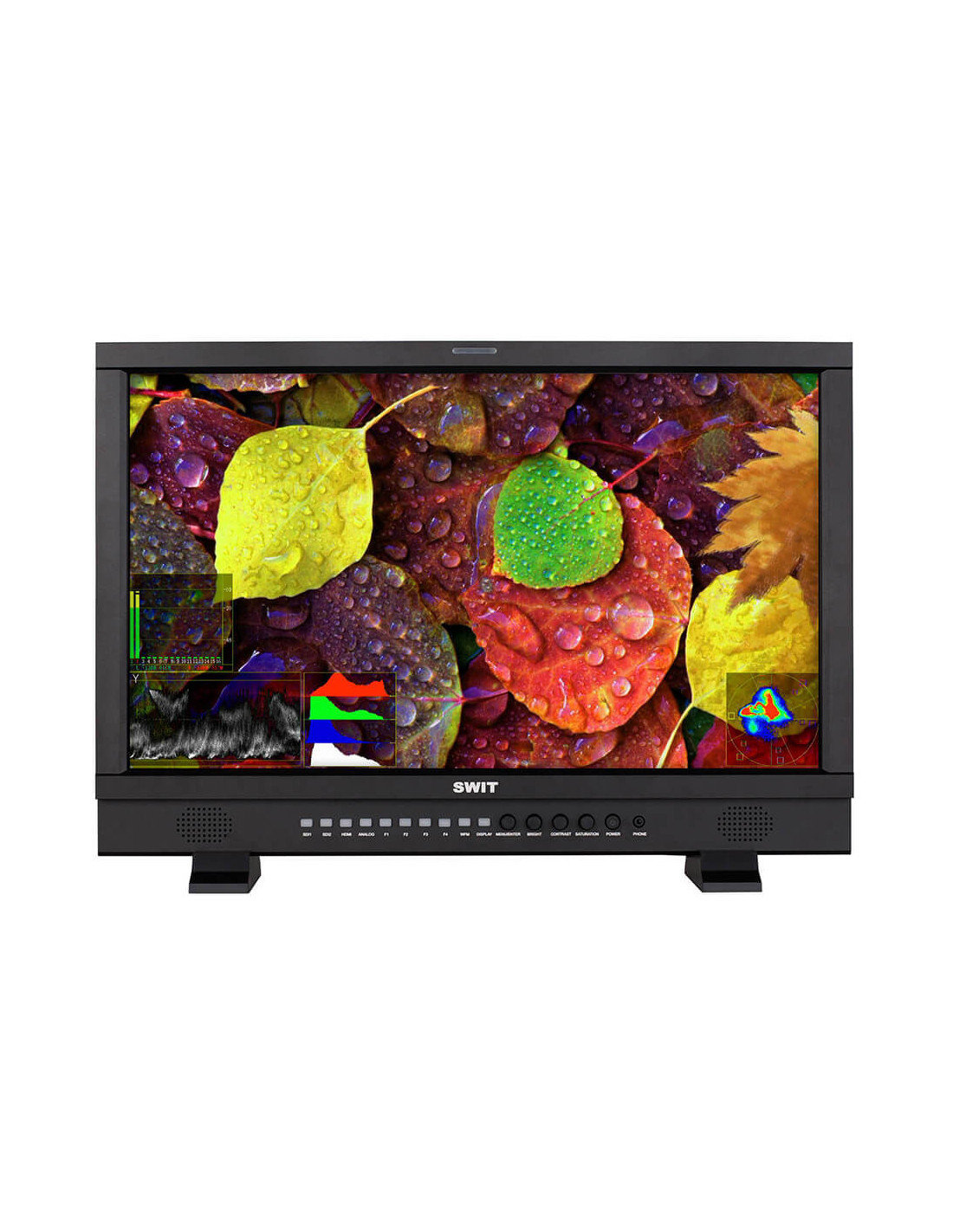

The S-1243F Waveform Studio LCD Monitor from SWIT adopts a 23.8” LCD panel to produce 3G/SDI/HDMI video in Full HD 1920 x 1080 resolution. It provides a 1000:1 contrast for accurate color reproduction and comes with a V-Mount battery plate. With four corners and a large center positioning, the monitor allows for adjusted translucence for waveform and vectorscope/histogram. Specifications: Signal System NTSC/PAL Monitor Type LCD Screen Size 23.8" (60.5 cm) Resolution 1920 x 1080 Display Area 19 x 11" (53 x 30 cm) Display Colors 16.77 million colors Aspect Ratio 16:9 / 4:3 Viewing Angle H/V: 178°/ 178° Brightness 300 cd/m2 Contrast Ratio 1000:1 Inputs BNC: 2 x 2K/3G/HD/SD-SDI input, CVBS input, Y/Pb/Pr input 1 x HDMI RS-485: 1 x GPI, 1 x UMD 1 x USB 1 x VGA 1 x RS-232C (UMD) RCA: 2 x L/R audio input Output BNC: 2K/3G/HD/SD-SDI Loop output, CVBS loop output 1 x HDMI loop output 1 x RS-485 (UMD) 1 x 3.5 mm SDI/HDMI embedded audio output, analog audio output Video Formats SDI: SMPTE 2048-2: 2048 x 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98), 2048 × 1080i (60 / 59.94 / 50) SMPTE-425M: 1080p (60 / 59.94 / 50) SMPTE-274M: 1080i (60 / 59.94 / 50), 1080p (30 / 29.97 / 25 / 24 / 23.98) SMPTE-RP211: 1080psf (30 / 29.97 / 25 / 24 / 23.98) SMPTE-296M: 720p (60 / 59.94 / 50) SMPTE-125M: 480i (59.94) ITU-R BT.656: 576i (50) HDMI: 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) 1080i (60 / 59.94 / 50) 720p (60 / 59.94 / 50) 576p / 576i / 480p / 480i Y/Pb/Pr: 1080p (50/60), 1080i (50/60), 720p (50/60), 576p / 576i / 480p / 480i VGA: 1600 x 1200 / 1280 x 1024 / 1280 x 960 / 1280 x 768 / 1152 x 864 / 1024 x 768 / 800 x 600 / 640 x 480 Temperature Working: 32 to 104°F (0 to +40°C) Storage: 5 to 140°F (-15 to +60°C) Humidity 10 to 90% Power Requirements 100 to 240 VAC, 11 to 17 VDC Power Consumption ≤36 W Dimensions 23 x 15 x 3.4" (58 x 38 x 8.7 cm) Weight 16 lb (7.2 kg)
- 23.8” LCD panel
- 1920 x 1080 resolution
- 2 x 2K/3G/HD/SD-SDI, HDMI monitoring
- Y/Pb/Pr, VGA, CVBS monitoring
- Chart positioning / Translucence adjustment
• 23.8” LCD panel • 1920 x 1080 resolution • 2 x 2K/3G/HD/SD-SDI, HDMI monitoring • Y/Pb/Pr, VGA, CVBS monitoring • Chart positioning / Translucence adjustment • Four corners and large center, with adjusted translucence for waveform and vectorscope/histogram • 16-channel embedded audio meters with alert • SDI: 16-channel / HDMI: 8-channel • 2 selectable audio channels to output • Peaking focus assist (red/blue switch) • Active Format Description (AFD) • Timecode, H/V delay • TSL UMD and text TALLY display • Safety marker 4:3/13:9/14:9/15:9/1.85:1/2.35:1 • False color with color chart • R/G/B/mono color modes • Over exposure zebra stripes • Internal color bar • V-Mount battery plate optional • USB firmware upgrade The S-1243F Waveform Studio LCD Monitor from SWIT adopts a 23.8” LCD panel to produce 3G/SDI/HDMI video in Full HD 1920 x 1080 resolution. It provides a 1000:1 contrast for accurate color reproduction and comes with a V-Mount battery plate. With four corners and a large center positioning, the monitor allows for adjusted translucence for waveform and vectorscope/histogram. Specifications: Signal System NTSC/PAL Monitor Type LCD Screen Size 23.8" (60.5 cm) Resolution 1920 x 1080 Display Area 19 x 11" (53 x 30 cm) Display Colors 16.77 million colors Aspect Ratio 16:9 / 4:3 Viewing Angle H/V: 178°/ 178° Brightness 300 cd/m2 Contrast Ratio 1000:1 Inputs BNC: 2 x 2K/3G/HD/SD-SDI input, CVBS input, Y/Pb/Pr input 1 x HDMI RS-485: 1 x GPI, 1 x UMD 1 x USB 1 x VGA 1 x RS-232C (UMD) RCA: 2 x L/R audio input Output BNC: 2K/3G/HD/SD-SDI Loop output, CVBS loop output 1 x HDMI loop output 1 x RS-485 (UMD) 1 x 3.5 mm SDI/HDMI embedded audio output, analog audio output Video Formats SDI: SMPTE 2048-2: 2048 x 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98), 2048 × 1080i (60 / 59.94 / 50) SMPTE-425M: 1080p (60 / 59.94 / 50) SMPTE-274M: 1080i (60 / 59.94 / 50), 1080p (30 / 29.97 / 25 / 24 / 23.98) SMPTE-RP211: 1080psf (30 / 29.97 / 25 / 24 / 23.98) SMPTE-296M: 720p (60 / 59.94 / 50) SMPTE-125M: 480i (59.94) ITU-R BT.656: 576i (50) HDMI: 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) 1080i (60 / 59.94 / 50) 720p (60 / 59.94 / 50) 576p / 576i / 480p / 480i Y/Pb/Pr: 1080p (50/60), 1080i (50/60), 720p (50/60), 576p / 576i / 480p / 480i VGA: 1600 x 1200 / 1280 x 1024 / 1280 x 960 / 1280 x 768 / 1152 x 864 / 1024 x 768 / 800 x 600 / 640 x 480 Temperature Working: 32 to 104°F (0 to +40°C) Storage: 5 to 140°F (-15 to +60°C) Humidity 10 to 90% Power Requirements 100 to 240 VAC, 11 to 17 VDC Power Consumption ≤36 W Dimensions 23 x 15 x 3.4" (58 x 38 x 8.7 cm) Weight 16 lb (7.2 kg)
