English description below
- Afspilning og overvågning af udsendelseskvalitet
- 1-sporet PCIe-slotkort (til 1-16 baner)
- SDI og HDMI udgange
- Op til 1080p60 opløsningsunderstøttelse i HDMI
- Mac, Windows og Linux kompatibel
Få HDMI- og SDI-videoafspilning og overvågning af udsendelseskvalitet fra din PCIe-computer! DeckLink Mini Monitor HD inkluderer 3G-SDI og HDMI 2.0, der lader dig oprette forbindelse til ethvert fjernsyn, skærm eller projektor til overvågning af udsendelser, inklusive de nyeste high dynamic range (HDR) formater! Fungerer med software som DaVinci Resolve, Final Cut Pro og mere. Understøttede codecs AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes 422 LT, Apple ProRes 422 Proxy, ukomprimeret 8-bit 4:2:2, ukomprimeret 10-bit 4:2:2, ukomprimeret 10-bit 4:4:4. Software inkluderet Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility og Blackmagic driver på Mac OS og Windows. Media Express, Blackmagic Desktop Video Utility og Blackmagic driver på Linux. Intern softwareopgradering Firmware indbygget i software driver. Indlæses ved systemstart eller via opdateringssoftware. Fysisk installation PCI Express 1 bane generation 2, kompatibel med 1, 4, 8 og 16 bane PCI Express slots på Mac OS, Windows og Linux. Mac OS-systemer kræver en Mac Pro-computer med PCI Express-slots. Tjek venligst supportsiderne for at se de fulde systemkrav. Andre understøttede applikationer inkluderer: The Foundry Nuke, Sony Catalyst Production Suite, Tools On Air Just: Play & Live, Magix Movie Edit Pro Premium, Corel VideoStudio Pro, CyberLink PowerDirector, Grass Valley Edius, Softron Mreplay, Telestream Wirecast, Livestream Studio, Resolume Arena, Vegas Creative Software Vegas Pro, VidblasterX Studio and Broadcast, Unimedia Technologies UniplayOne og Uniplay-CG, CasparCG Server, Magicsoft CG, Xsplit Broadcaster, DevTek Easy Media Suite, Boinx Software MimoLive, StudioCoast vMix, Renewed Vision ProPresenter, Ventuz Director, Class X Liveboard og CoralCG, Åbn Broadcaster Software Studio, Nautilus Studio Nemo3D, Burst Video Webclip2Go, Derivative TouchDesigner, Assimilate Scratch and Live Assist, NewBlue Title Live og Titler Pro, SGO Mistika. Disse er tredjepartsapplikationer, og support kan variere, spørg din softwareleverandør. specifikationer Videoudgange 1 x BNC (3G-SDI / HD-SDI / SD-SDI) (skærm) 1 x HDMI (HDMI 2.0) (skærm) Lydudgange Ingen Output Videoformat SDI (8/10/12-Bit 4:4:4 RGB) 1080p at 23.98/24/25/29.97/30 fps 1080PsF at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps 576i / 625 lines at 50 fps 480i / 525 lines 59.94 fps SDI (8/10-Bit 4:2:2 YUV) DCI 2K at 23.98/24/25/29.97/30/50/59.94/60 fps DCI 2KPsF at 23.98/24/25/29.97/30 fps 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF at 23.98/24/25/29.97/30 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps 576i / 625 lines at 50 fps 480i / 525 lines at 59.94 fps HDMI (10/12-Bit 4:4:4 RGB) 1080p at 23.98/24/25/29.97/30 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps 576i / 625 lines at 50 fps 480i / 525 lines at 59.94 fps HDMI (8-Bit 4:4:4 RGB) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps 576i / 625 lines at 50 fps 480i / 525 lines at 59.94 fps HDMI (12-Bit 4:2:2 YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps 576i / 625 lines at 50 fps 480i / 525 lines at 59.94 fps Indbygget lyd SDI: 16-Channel HDMI: 8-Channel Videostandardoverholdelse SMPTE 259M/274M/296M/424M/425M-A/425M-B/ST-2108-1 HDR-kompatibilitet Ikke specificeret af producenten Hardware OS Compatibility macOS 11.1 macOS 12.0 or Later Windows 10 Windows 11 Linux *Fra og med juli 2022: Spørg producenten for den mest opdaterede kompatibilitet Strømforbrugsenhed: 3 W Hvad er inkluderet DeckLink Mini Monitor HD Lavprofilspaltebeslag
- Broadcast-Quality Playback & Monitoring
- 1-Lane PCIe Slot Card (for 1-16 Lanes)
- SDI and HDMI Outputs
- Up to 1080p60 Resolution Support in HDMI
- Mac, Windows, and Linux Compatible

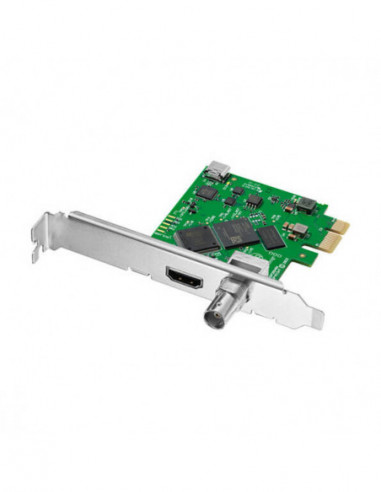

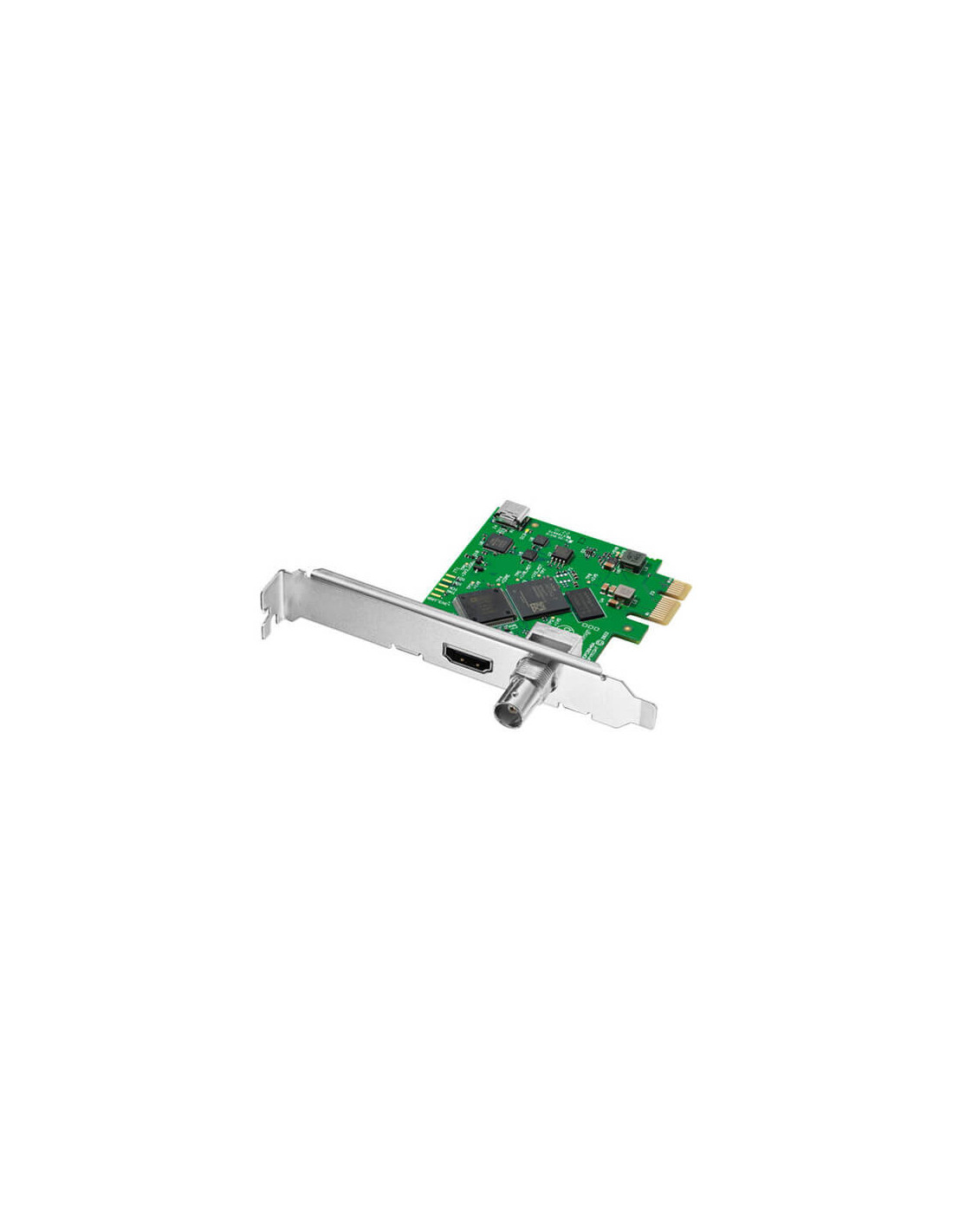

Get broadcast quality HDMI and SDI video playback and monitoring from your PCIe computer! DeckLink Mini Monitor HD includes 3G-SDI and HDMI 2.0 that let you connect to any television, monitor or projector for broadcast monitoring, including the latest high dynamic range (HDR) formats! Works with software such as DaVinci Resolve, Final Cut Pro and more. Supported Codecs AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes 422 LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4. Software Included Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux. Internal Software Upgrade Firmware built into software driver. Loaded at system start or via updater software. Physical Installation PCI Express 1 lane generation 2, compatible with 1, 4, 8 and 16 lane PCI Express slots on Mac OS, Windows and Linux. Mac OS systems require a Mac Pro computer with PCI Express slots. Please check the Support pages to see the full system requirements. Other supported applications include: The Foundry Nuke, Sony Catalyst Production Suite, Tools On Air Just: Play & Live, Magix Movie Edit Pro Premium, Corel VideoStudio Pro, CyberLink PowerDirector, Grass Valley Edius, Softron Mreplay, Telestream Wirecast, Livestream Studio, Resolume Arena, Vegas Creative Software Vegas Pro, VidblasterX Studio and Broadcast, Unimedia Technologies UniplayOne and Uniplay-CG, CasparCG Server, Magicsoft CG, Xsplit Broadcaster, DevTek Easy Media Suite, Boinx Software MimoLive, StudioCoast vMix, Renewed Vision ProPresenter, Ventuz Director, Class X Liveboard and CoralCG, Open Broadcaster Software Studio, Nautilus Studio Nemo3D, Burst Video Webclip2Go, Derivative TouchDesigner, Assimilate Scratch and Live Assist, NewBlue Title Live and Titler Pro, SGO Mistika. These are third party applications and support may vary, check with your software vendor. Specifications Video Outputs 1 x BNC (3G-SDI / HD-SDI / SD-SDI) (Monitor) 1 x HDMI (HDMI 2.0) (Monitor) Audio Outputs None Output Video Format SDI (8/10/12-Bit 4:4:4 RGB) 1080p at 23.98/24/25/29.97/30 fps 1080PsF at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps 576i / 625 lines at 50 fps 480i / 525 lines 59.94 fps SDI (8/10-Bit 4:2:2 YUV) DCI 2K at 23.98/24/25/29.97/30/50/59.94/60 fps DCI 2KPsF at 23.98/24/25/29.97/30 fps 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF at 23.98/24/25/29.97/30 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps 576i / 625 lines at 50 fps 480i / 525 lines at 59.94 fps HDMI (10/12-Bit 4:4:4 RGB) 1080p at 23.98/24/25/29.97/30 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps 576i / 625 lines at 50 fps 480i / 525 lines at 59.94 fps HDMI (8-Bit 4:4:4 RGB) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps 576i / 625 lines at 50 fps 480i / 525 lines at 59.94 fps HDMI (12-Bit 4:2:2 YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps 576i / 625 lines at 50 fps 480i / 525 lines at 59.94 fps Embedded Audio SDI: 16-Channel HDMI: 8-Channel Video Standard Compliance SMPTE 259M/274M/296M/424M/425M-A/425M-B/ST-2108-1 HDR Compatibility Not Specified by Manufacturer Hardware OS Compatibility macOS 11.1 macOS 12.0 or Later Windows 10 Windows 11 Linux *As of July, 2022: Check with manufacturer for the most up-to-date compatibility Power Consumption Device: 3 W What´s Included DeckLink Mini Monitor HD Low profile slot bracket
