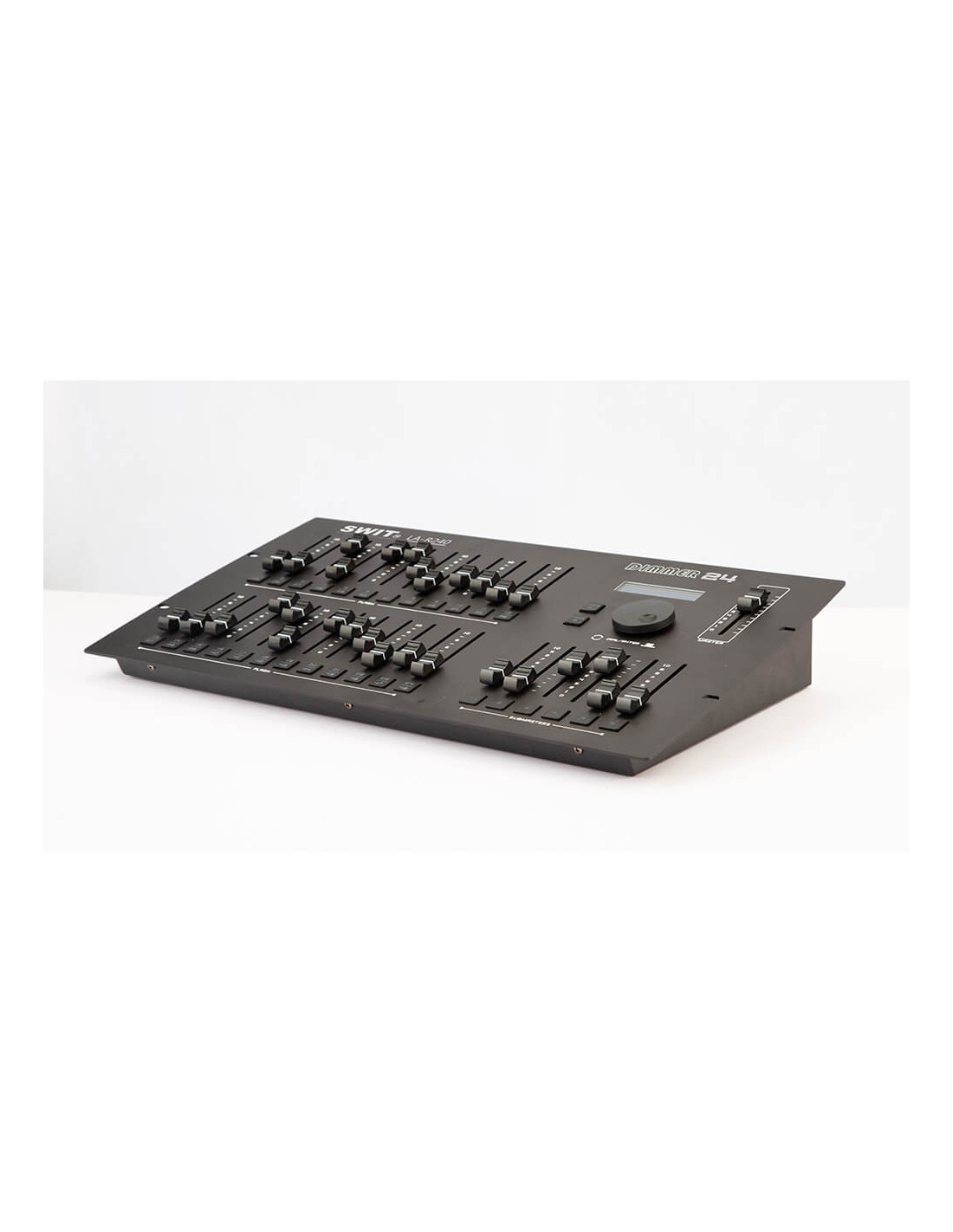

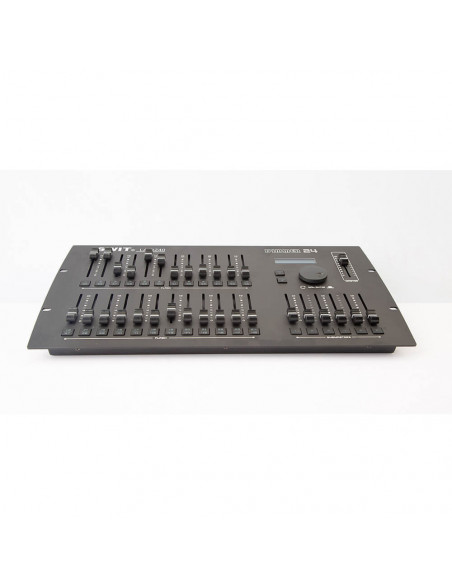

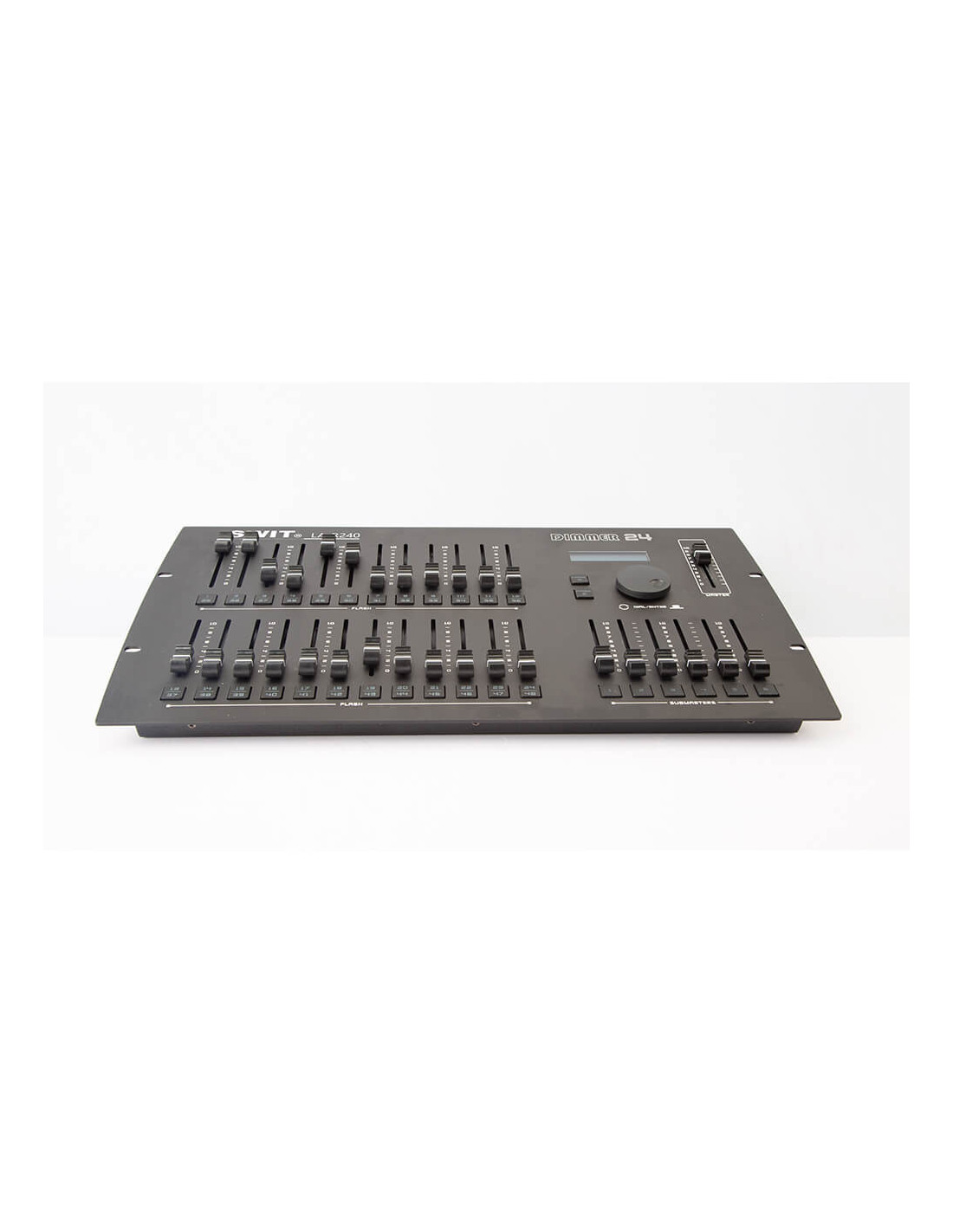

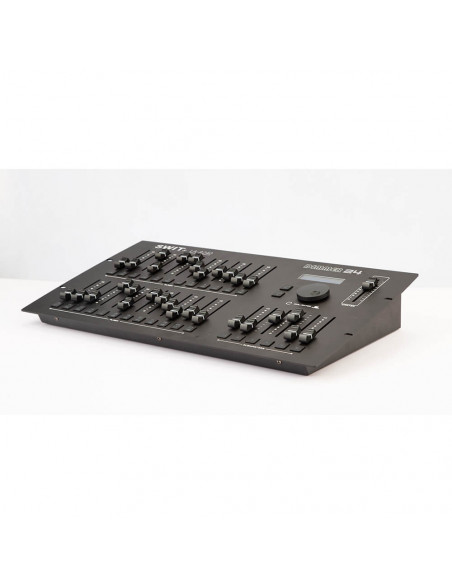

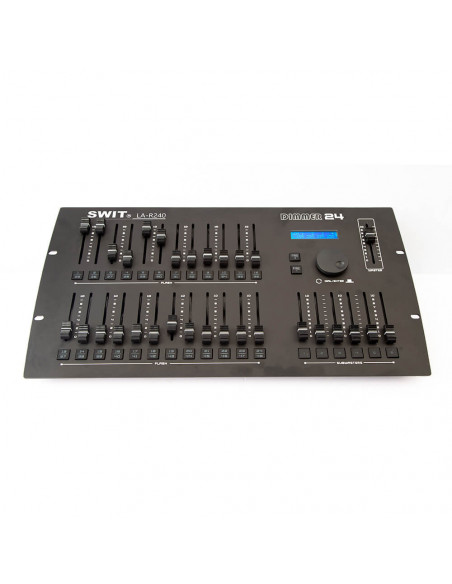

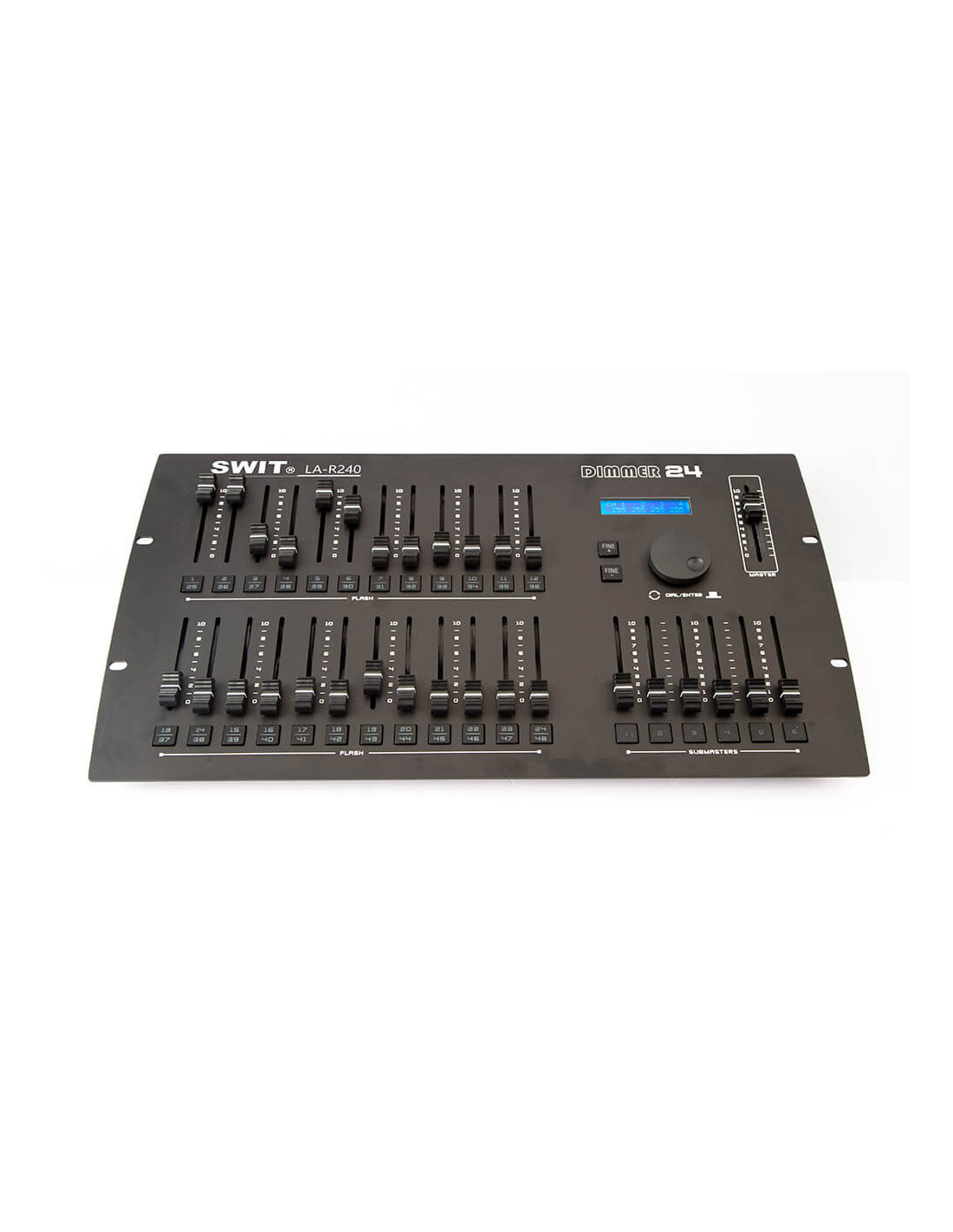

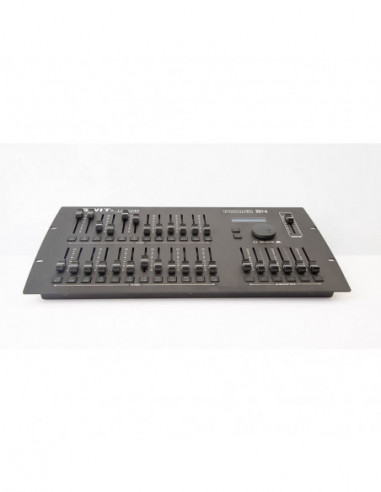

SWIT LA-R240 24-channel Cascadable DMX Light Console

English description below

• Standard DMX512 console with isolater
• 24x channel sliders, 6x submaster, 1x master
• Up to 4 units serial connection to 96 channels
• LCD display DMX values of each channel
• Flash control buttons for each slider

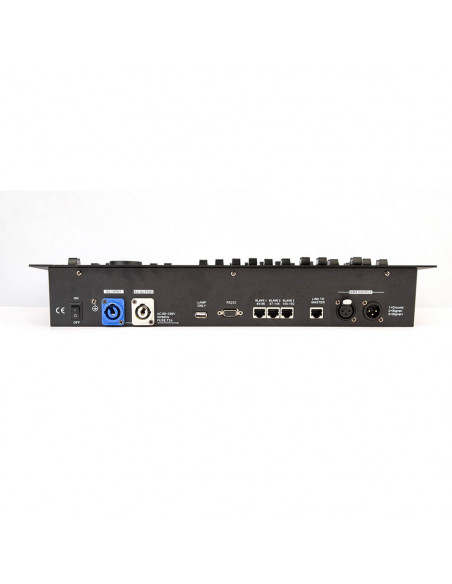

LA-R240 is a Zero-basis operatable standard DMX512 light console of 24 channel sliders, for broadcast studio and stage.　 LA-R240 supports PowerCON AC 88-256V 50/60Hz input and loop output, RS232 remote control, RJ45 serial link ports and DMX sockets of both 3-pin male and female. LA-R240 provides 6x Submaster sliders to group any of the 24 channels, and a Master slider to control all connected lights. The LCD displays exact values of every DMX channel, and has FINE +/- buttons to fine adjust slide values. You can connect up tp 4x LA-R240 by RJ45 cables, to expand DMX channels to Max 96. The Master unit is in charge of DMX 1-24, and the Slave units are DMX 25-48, 49-72 and 73-96. Specifications Channel: 24 Submaster: 6 Master: 1 DMX: 3-pin XLR Female x1; Male x1 Serial connection: 4 units, Max 96-ch Power: PowerCON AC 88-256V 50/60Hz IN x1; LOOPx1 Dimension: 482×265×75mm Weight: 2.65kg
