SWIT LA-R480 48-channel Cascadable DMX Light Console

English description below

• 24x channel sliders with A/B switch to 48-ch
• 6x submaster slider and 1x master slider
• Up to 4 units serial connection to 192 channels
• LCD display DMX values of each channel
• Flash control buttons for each slider

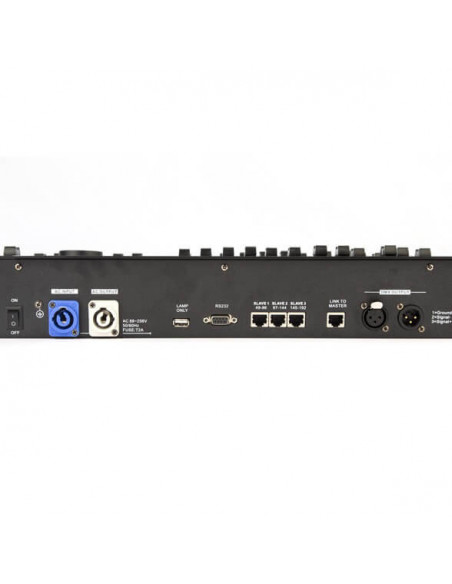

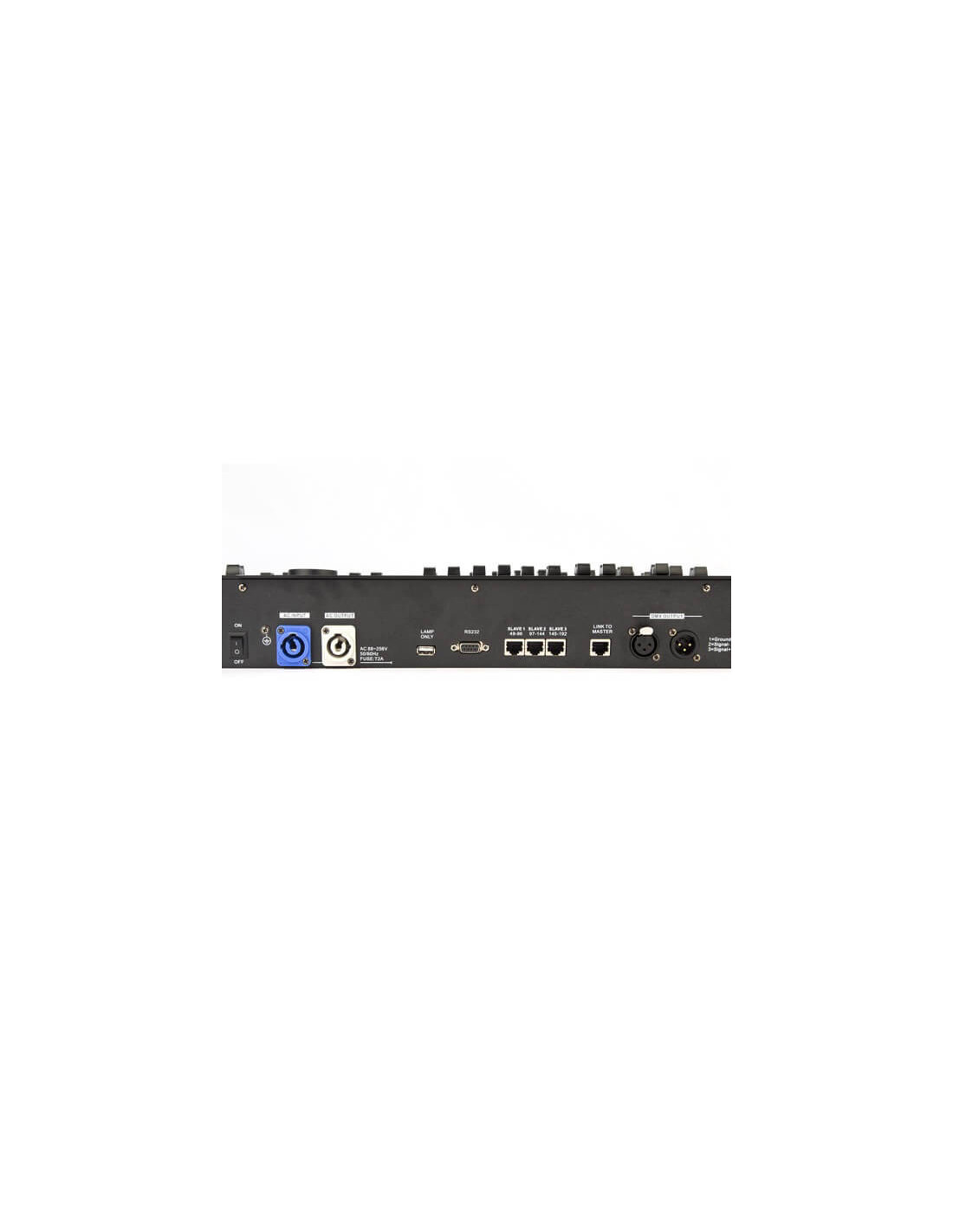

LA-R480 is a Zero-basis operatable standard DMX512 light console of 24 channel sliders and Page A/B switch to control 48 channels in total. LA-R480 supports AC 88-256V 50/60Hz input and loop output, RS232 remote control, RJ45 serial link ports and DMX sockets of both 3-pin male and female. LA-R480 provides 6x Submaster sliders to group any of the 48 channels, and a Master slider to control all connected lights. The LCD displays exact values of every DMX channel. You can connect up tp 4x LA-R480 by RJ45 cables, to expand DMX channels to Max 192. The Master unit is in charge of DMX 1-48, and the Slave units are DMX 49-96, 97-144 and 145-192. Specifications Channel: 48 Submaster: 6 Master: 1 DMX: 3-pin XLR Female x1; Male x1 Serial connection: 4 units, Max 192-ch Power: PowerCON AC 88-256V 50/60Hz IN x1; LOOPx1 Dimension: 482×265×75mm Weight: 2.65kg
