- KUWI 5.1-5.9GHz Wireless Technology
- DFS Comply
- 3GSDI & HDMI, with 3GSDI loop out
- High gain panel antenna with built-in receiver
- 1000ft/3km (Line-of-Sight) distance

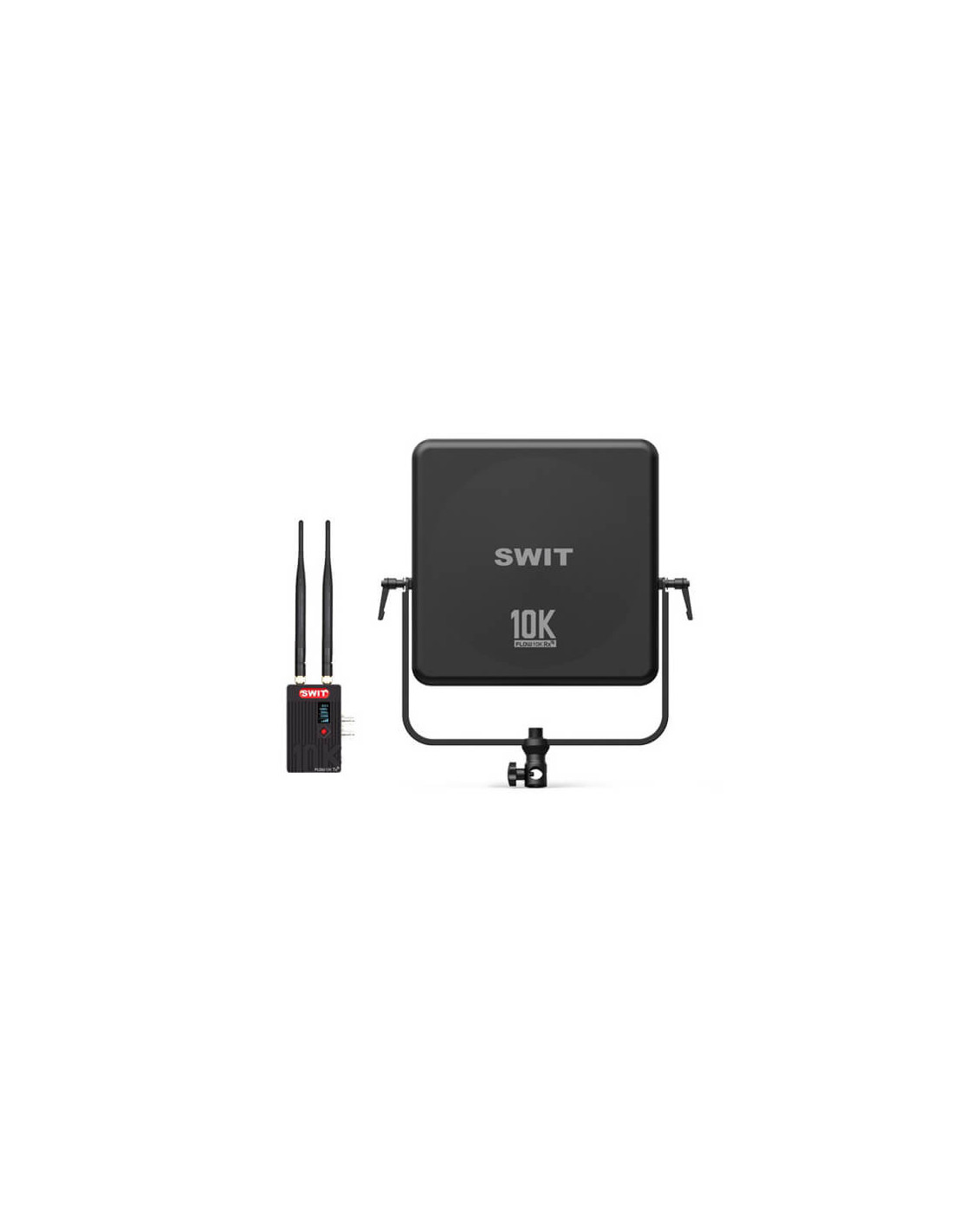

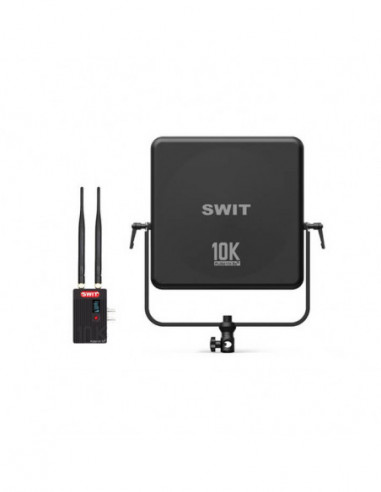

FLOW10K wireless system is based on SWIT latest professional KUWI wireless technology, 5.1-5.9GHz license free bands, DFS comply, sup- ports 3G/HD-SDI and HDMI (Max 1080p60) to transmit 1000ft / 3km Line-of-Sight distance. The KUWI professional wireless chip features stable connection in any complex environment and stronger wall-cross capability. The Receiver has built into high gain directional Panel Antenna, compact size, without complex antanna wires connection, solid and reliable, and provides 1x 3G/HD-SDI output. With the high gain panel receiver, FLOW10K supports 1000ft/3km (Line-of-sight) reliable wireless transmission, and features stronger wall-cross performance due to both RF optimisation and image quality optimisation that will keep video transmission without data loss or crash, compared to regular 5GHz wireless transmitters. The power consumtion of Tx and Rx is less than 9W. The Transmitter provides NP-F DV battery plate, and 7-34V DC-IN socket; The Panel receiver features a V-mount battery plate, and 7-34V DC-IN socket. The FLOW wireless works under 5.1-5.9GHz, with built-in wireless scanner, and detect wireless condition of all frequencies, automatically jumping to the best wireless channel to keep reliable connection and transmission, and DFS comply. You can also switch the wireless channels manually from 7 Non-DFS restricted channels. Both Transmitter and Receiver are equipped with OLED panels to display signal format, wireless channel number and signal strength. Connect 1 transmitter to unlimited quantity receivers with reliable multicast mode. The transmitter and receivers are paired and double encrypted by private transmission protocol and by AES128, in order to protect the footage. The FLOW series adopts professional KUWI 5GHz wireless technology, which keeps you connecte in even the most complex wireless environment, such as sports stadium, concert. The FLOW10K is compatible with other FLOW series wireless at different receiving distances. FLOW10K Tx can receive at 500ft with FLOW500 Rx, and at 2000ft with FLOW2000 Rx, 6500ft with FLOW6500 Rx and 1000ft with FLOW10K Rx. Key Features In the box 1x FLOW10K Transmitter 1x FLOW10K Receiver 1x Cold Shoe 1/4" Arm Trestle 1x AC-DC Adaptor 1x Carrying Case Specifications Input / Output Transmitter 3G/HD-SDI input×1, loop output ×1 HDMI 1.3 input×1 Receiver 3G/HD-SDI output×1 Video Formats SDI 1080p60, 1080p59.94, 1080p50 1080p23.98, 1080p24; 1080p25, 1080p29.97, 1080p30; 1080psf23.98, 1080psf24 1080i60, 1080i59.94, 1080i50; 720p60, 720p59.94, 720p50 HDMI 1080p60, 1080p59.94, 1080p50 1080p23.98, 1080p24; 1080p25, 1080p29.97, 1080p30; 1080psf23.98, 1080psf24 1080i60, 1080i59.94, 1080i50; 720p60, 720p59.94, 720p50 Wireless Frequency 5.17GHz-5.69GHz and 5.75GHz-5.83GHz RF Modules OFDM 16QAM, 64QAM, QPSK, BPSK RF Power 125mW Transmission Distance 1000 feet / 3000 meters (Line of sight) General Input voltage Transmitter DC 7-34V Receiver DC 7-34V Power Consumption Transmitter 9W Receiver 9W Dimension(w/o antenna) Transmitter 66×106.5×24.7 (mm) Receiver 304.7×304.7×42.5 (mm) Net weight Transmitter 236g Receiver 1.8kg Working Temperature 0°C -+40°C
