English description below
- KUWI 5.1-5.9GHz Wireless Technology
- DFS Comply
- 3GSDI & HDMI, with 3GSDI loop out
- High gain panel antenna with built-in receiver
- 6500ft/2km (Line-of-Sight) distance

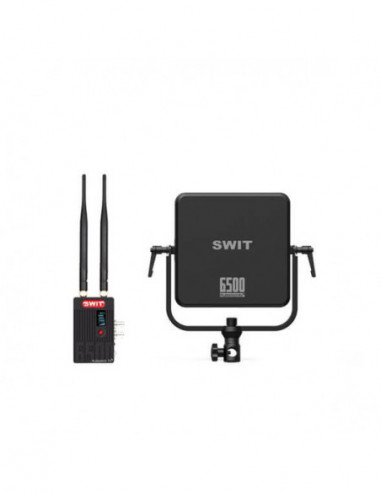

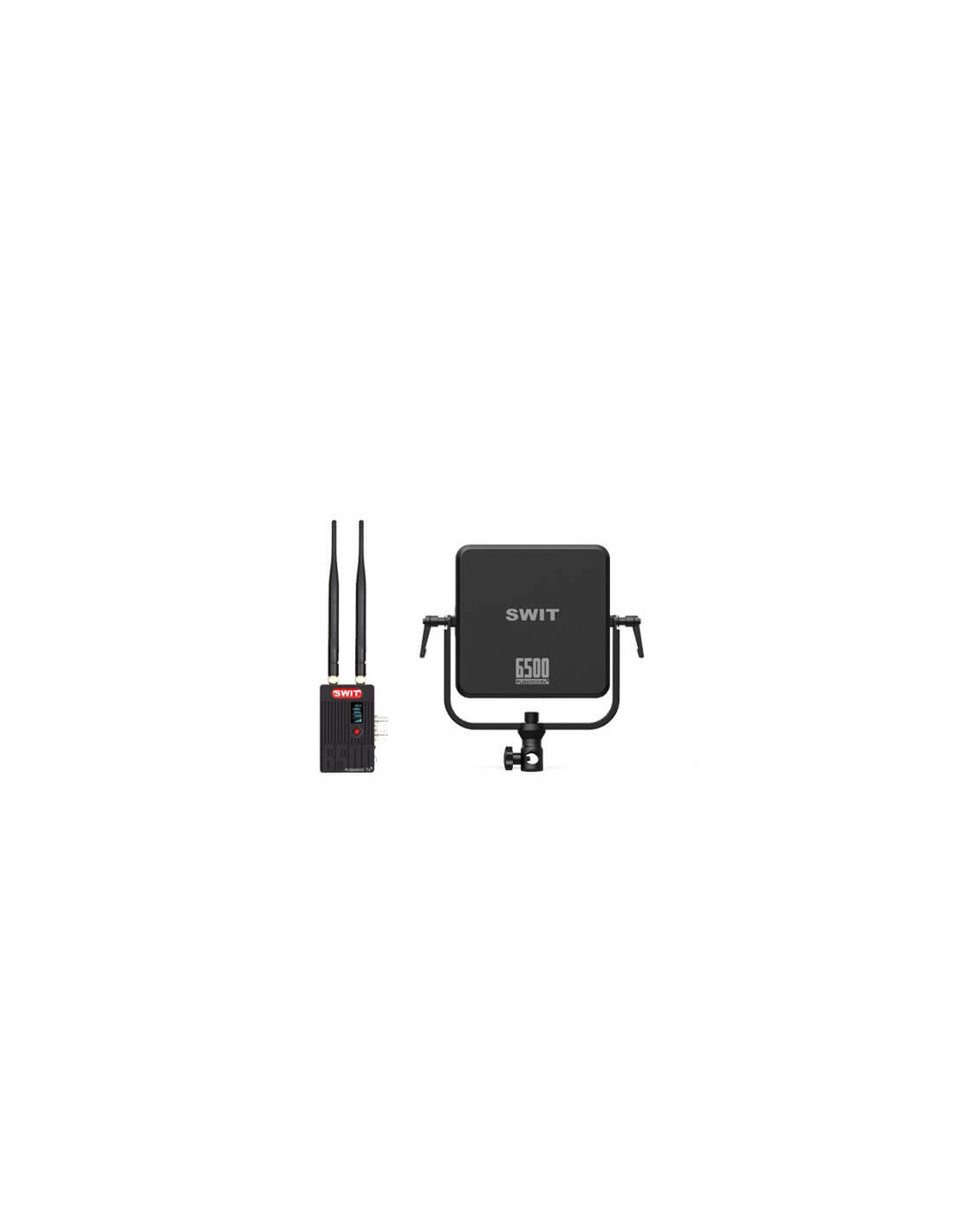

FLOW6500 wireless system is based on SWIT latest professional KUWI wireless technology, 5.1-5.9GHz license free bands, DFS comply, sup- ports 3G/HD-SDI and HDMI (Max 1080p60) to transmit 6500ft / 2km Line-of-Sight distance. The KUWI professional wireless chip features stable connection at any complex environment and stronger in wall-cross capability. The long distance wireless can be widely used in film production, event broadcasting etc. The Transmitter The Transmitter has 2 omni antennas, supports 1x 3G/HD-SDI input 1x 3G/HD-SDI loop output 1x HDMI 1.3 input SDI & HDMI formats: 1080p60, 1080p59.94, 1080p50 1080p23.98, 1080p24; 1080p25, 1080p29.97, 1080p30; 1080psf23.98, 1080psf24 1080i60, 1080i59.94, 1080i50; 720p60, 720p59.94, 720p50 * Supports embedded audio (CH1&2) transmission The Panel Receiver The Receiver has built into high gain directional Panel Antenna, compact size, without complex antanna wires connection, solid and reliable, and provides 1x 3G/HD-SDI output. 6500ft/2km Long Distance Strong Wall-cross Performance With the high gain panel receiver, FLOW6500 supports 6500ft/2km (Line-of-sight) reliable wireless transmission, and featured stronger wall-cross performance due to both RF optimize and image quality optimize, so that will keep video transmission without date lost or crash comparing to regular 5GHz wireless transmitters. Power Supply The power consumtion of Tx and Rx are less than 9W. The Transmitter provides NP-F DV battery plate, and 7-34V DC-IN socket; The Panel Receiver provide V-mount battery plate, and 7-34V DC-IN socket. OLED Display & Channel Switch 5GHz Frequency, DFS Comply The FLOW wireless works under 5.1-5.9GHz, with built-in wireless scanner, and detect wireless condition of all frequencies, automatically jump to the best wireless channel to keep reliable connection and transmission, and DFS comply. You can also switch the wireless channels manually from 7 Non-DFS restricted channels. Both Transmitter and Panel Receiver are equipped with OLED to display signal format, wireless channel number and signal strength. Multicast and Double Encryption Support 1 transmitter to unlimited quantity receivers reliable multicast mode. The transmitter and receivers are paired and double encrypted by private transmission protocol and by AES128, in order to protect the footages. Stable Connection at Worst Wireless Environment The FLOW series adopt professional KUWI 5GHz wireless technology, can keep connected at any complex wireless environment, such as sports stadium, concert, public plaza where full of people, electronic devices or wifi routers. FLOW series Cross-Receiving The FLOW6500 can work together with other FLOW series wireless at different receiving distance. Use FLOW6500 Tx, you can receive in 500ft with FLOW500 Rx, and in 2000ft with FLOW2000 Rx, and in 6500ft with FLOW6500 Rx. That`s in the box FLOW6500 1x Transmitter 1x Receiver Cold shoe and 1/4" Arm Trestle D-tap to lockable Pole-tap cable AC-DC adaptor (3 meters) Carrying Case Specifiacations Input / Output Transmitter 3G/HD-SDI input×1, loop output ×1 HDMI 1.3 input×1 Receiver 3G/HD-SDI output×1 Video Formats SDI 1080p60, 1080p59.94, 1080p50 1080p23.98, 1080p24; 1080p25, 1080p29.97, 1080p30; 1080psf23.98, 1080psf24 1080i60, 1080i59.94, 1080i50; 720p60, 720p59.94, 720p50 HDMI 1080p60, 1080p59.94, 1080p50 1080p23.98, 1080p24; 1080p25, 1080p29.97, 1080p30; 1080psf23.98, 1080psf24 1080i60, 1080i59.94, 1080i50; 720p60, 720p59.94, 720p50 Wireless Frequency 5.17GHz-5.69GHz and 5.75GHz-5.83GHz RF Modules OFDM 16QAM, 64QAM, QPSK, BPSK RF Power 125mW Transmission Distance 6500 feet / 2000 meters (Line of sight) General Input voltage Transmitter DC 7-34V Receiver DC 7-34V Power Consumption Transmitter 9W Receiver 9W Dimension(w/o antenna) Transmitter 66×106.5×24.7 (mm) Receiver 190×190×47 (mm) Net weight Transmitter 236g Receiver 1.26kg Working Temperature 0°C -+40°C
