English description below
- KUWI 5.1-5.9GHz Wireless Technology
- DFS Comply
- 3GSDI & HDMI, with 3GSDI loop out
- 2000ft/600m (Line-of-Sight) distance
- Strong Wall-Cross Performance

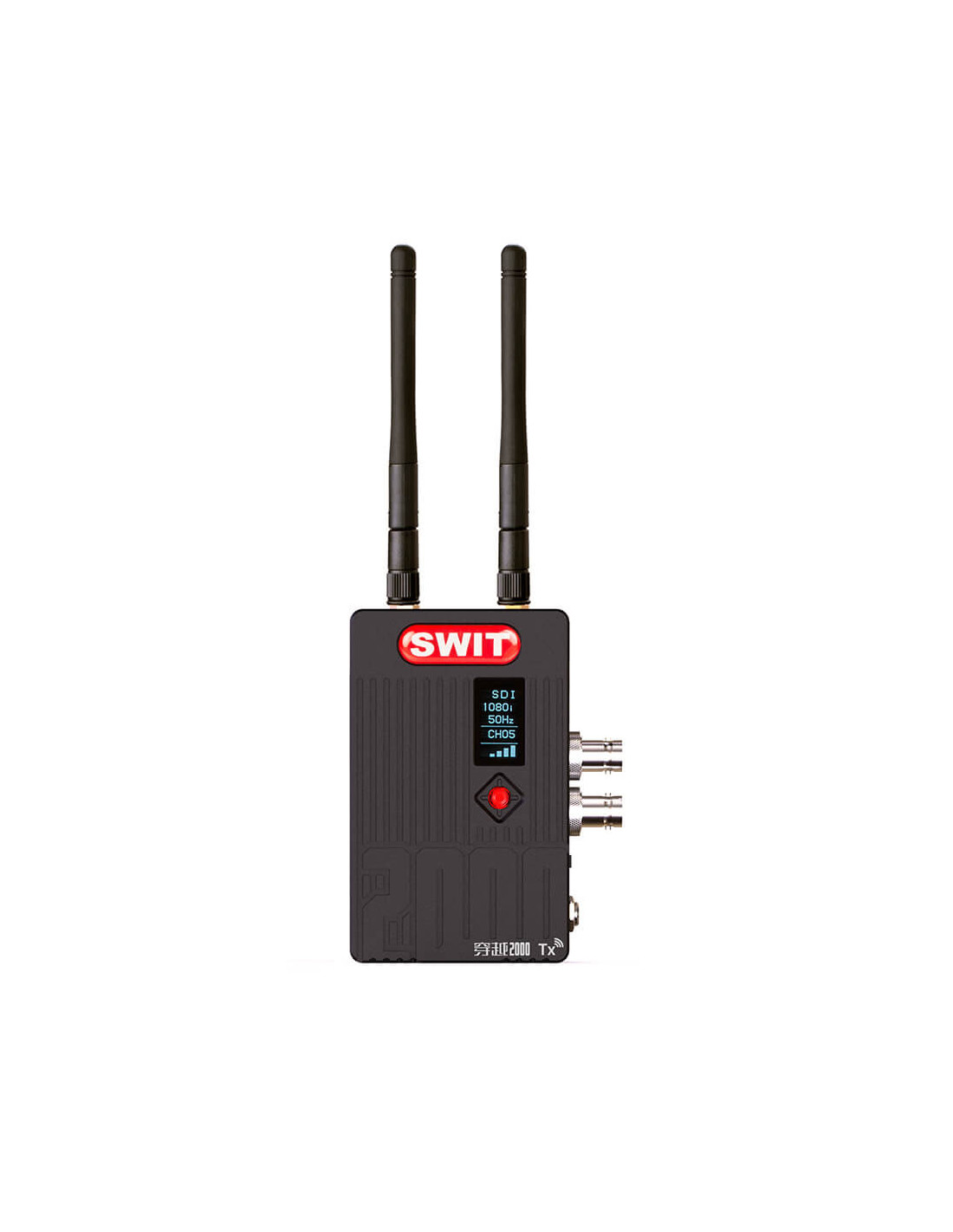

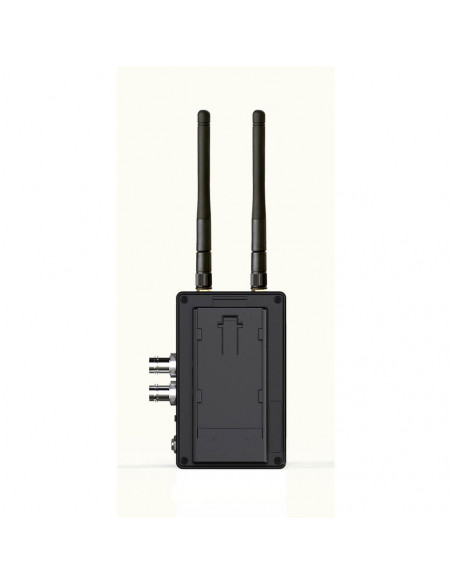

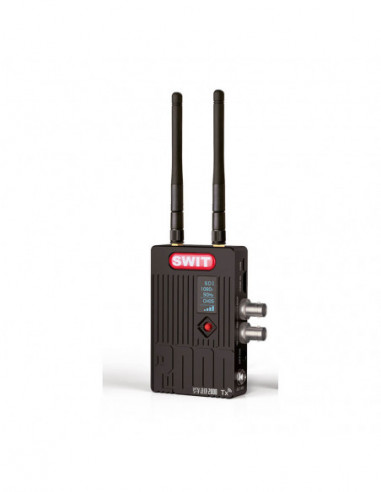

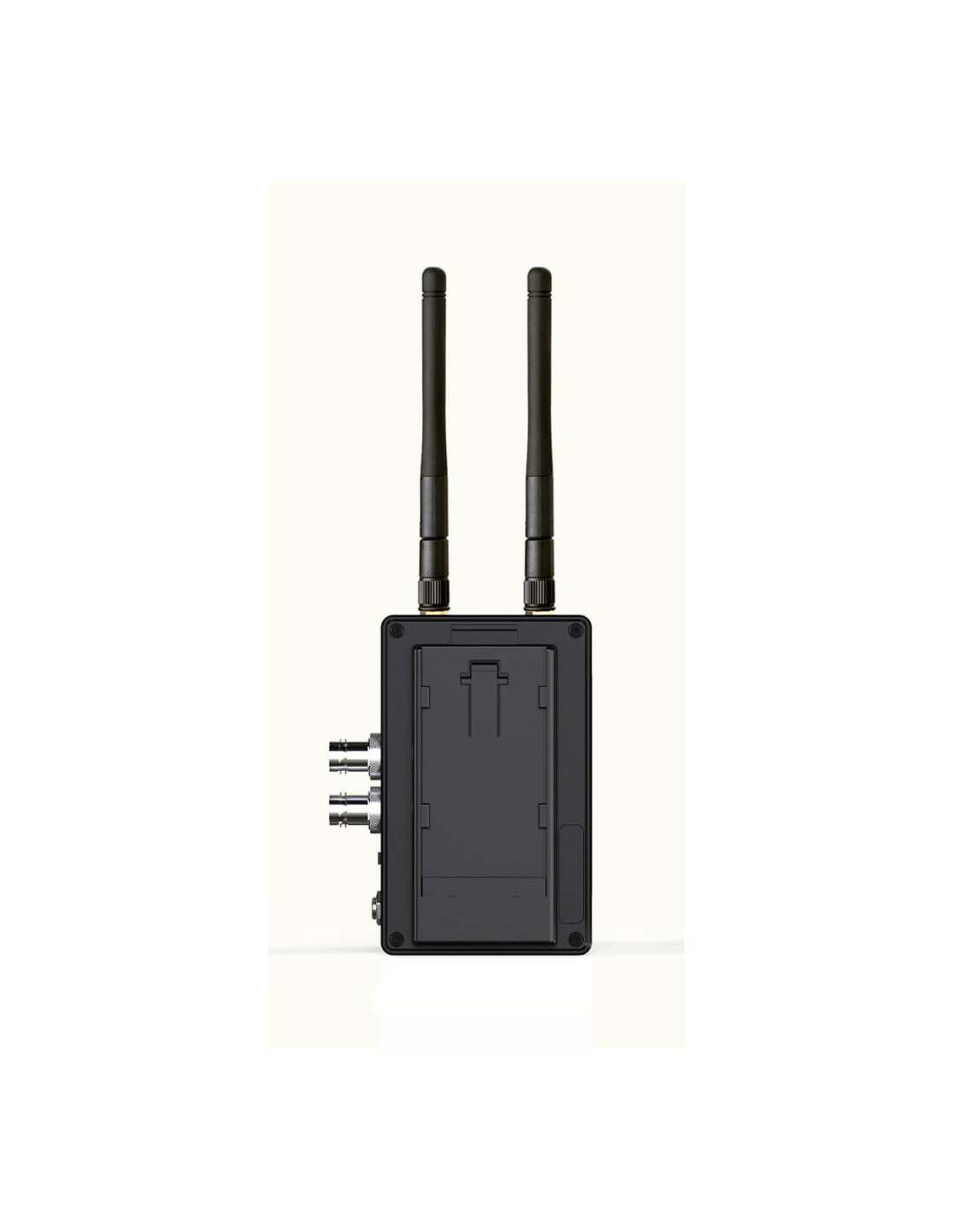

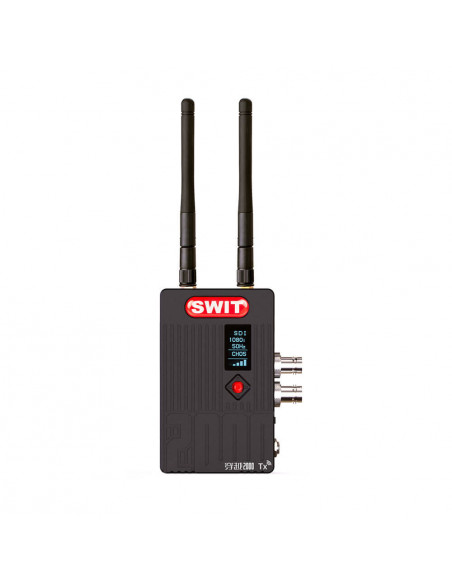

• KUWI 5.1-5.9GHz Wireless Technology • DFS Comply • 3GSDI & HDMI, with 3GSDI loop out • 2000ft/600m (Line-of-Sight) distance • Strong Wall-Cross Performance • 2-ch SDI/HDMI audio transmission • OLED info and channel switching • Support 3-4 pairs working in one location • Multicast - 1 transmitter to Max 4 receivers • Wireless protocol & content double encryption • Reclock and accurate color reproduction FLOW2000 wireless system is based on SWIT latest KUWI wireless technology, 5.1-5.9GHz license free bands, DFS comply, supports 3G/HD-SDI and HDMI (Max 1080p60) to transmit 200 feet (600 meters) Line-of-Sight distance. The system is pure hardware connection, plug and play, which is widely used in director monitoring, drone, ropeway camera, steadicam etc. The Transmitter (Tx) has 2 omni antennas, supports 3G/HD-SDI input x 1 3G/HD-SDI loop output x 1 HDMI 1.3 input x 1 The Receiver (Rx) has 4 omni antennas, supports 3G/HD-SDI output x 1 HDMI 1.3 output x 1 Strong Wall-cross Performance FLOW2000 wireless supports 2000ft/600m (Line-of-sight) reliable wireless transmission, and featured stronger wall-cross performance due to both RF optimize and image quality optimize, so that will keep video transmission without date lost or crash comparing to regular 5GHz wireless transmitters. * Supports SDI & HDMI embedded audio (CH1&2) transmission. OLED Display & Channel Switch DFS comply The FLOW wireless works under 5.1-5.9GHz, with built-in wireless scanner, and detect wireless condition of all frequencies, automatically jump to the best wireless channel to keep reliable connection and transmission, and DFS comply. You can also switch the wireless channels manually from 7 Non-DFS restricted channels. Both Tx and Rx are equipped with OLED to display signal format, wireless channel number and signal strength. Multicast and Double Encryption Support 1 transmitter to 4 receivers reliable multicast mode. The transmitter and receivers are paired and double encrypted by private transmission protocol and by AES128, in order to protect the footages. Reclock & Colour Reproduction To ensure the quality of black level, signal noise and colour reproduction of the wireless received signal, the FLOW series wireless receiving supports signal re-clock and accurate colour reproduction. USB Firmware Update The FLOW series wireless provides a Micro USB port, supports OTG USB Firmware update for future more functions. Power Supply The power consumtion of Tx and Rx are less than 8W. Both Tx and Rx provide NP-F DV battery plate, and 7-34V lockable DC input. Pair the Transmitter and Receiver The FLOW wireless Tx and Rx are already paired in factory. You can directly use. But if you have several units and mixed up the Tx and Rx, or if you need to do multi-cast, you need to re-pair by yourself. Pairing steps: 1 Tx to 1 Rx Power on the Tx and connect SDI or HDMI source to Tx. Power on the Rx and connect with a monitor. Pull the Rx joystick right to “CONF/PAIR” page, and make sure the CONF is “HOST” mode*. Pull the joystick down to select “PAIR” – “YES” and press the joystick to confirm. Pull the Tx joystick right to “PAIR” page, and pull down to select “YES”, and press the joystick to confirm. Then the “Link” indicators of both Tx and Rx are blinking, and when they stopped blinking, pairing succeed and the Rx outputs video. * If the Rx is “SLAV” mode, please change to “HOST” mode and restart the Rx to apply. 1 Tx to Multi Rx Successfully pair a Tx with an Rx first, and keep them powered on. Power a new Rx on, and pull the Rx joystick right to “CONF/PAIR” page, and change the CONF to “SLAV” mode, and restart the Rx. Pull the Rx joystick right to “CONF/PAIR” page again, and pull joystick down to select “PAIR” – “YES”, and press the joystick to confirm. Pull the Tx joystick right to “PAIR” page, and pull down to select “YES”, and press the joystick to confirm. Then the “Link” indicators of both Tx and new Rx are blinking, and when they stopped blinking, pairing succeed and the new Rx outputs video simultaneously. Set more Rx to “SLAV” mode and pair them together by above steps. Specification Input 3G/HD-SDI x1 HDMI x1 Output 3G/HD-SDI loop x1 Format 1080P (60 / 59.94 / 50) 1080i (60 / 59.94 / 50) 1080p (30 / 29.97 / 25 / 24 / 23.98) 720p (60 / 59.94 / 50) Wireless Frequency 5.17GHz-5.23GHz and 5.75GHz-5.83GHz Radio Modules OFDM 16QAM, 64QAM, QPSK, BPSK Transmission Distance 2000 feet / 600 meters (Line of sight) Power Consumption ≤8W Radio Power 125mW Input Voltage DC 7～34V Working Environment Temperature: 0°C -+40°C Dimension (w/o antenna) 66×106.5×24.7 (mm) Net Weight 236g
