English description below
- Works in the frequency range from 5.1 to 5.9 GHz
- Supports Dynamic Frequency Selection (DFS)
- With 3G-SDI and HDMI ports
- Transmission range of up to 150 m / 500 ft (line of sight)
- Strong wall-cross performance

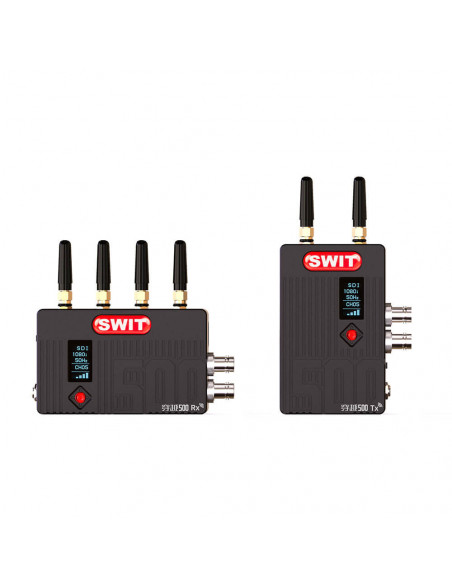

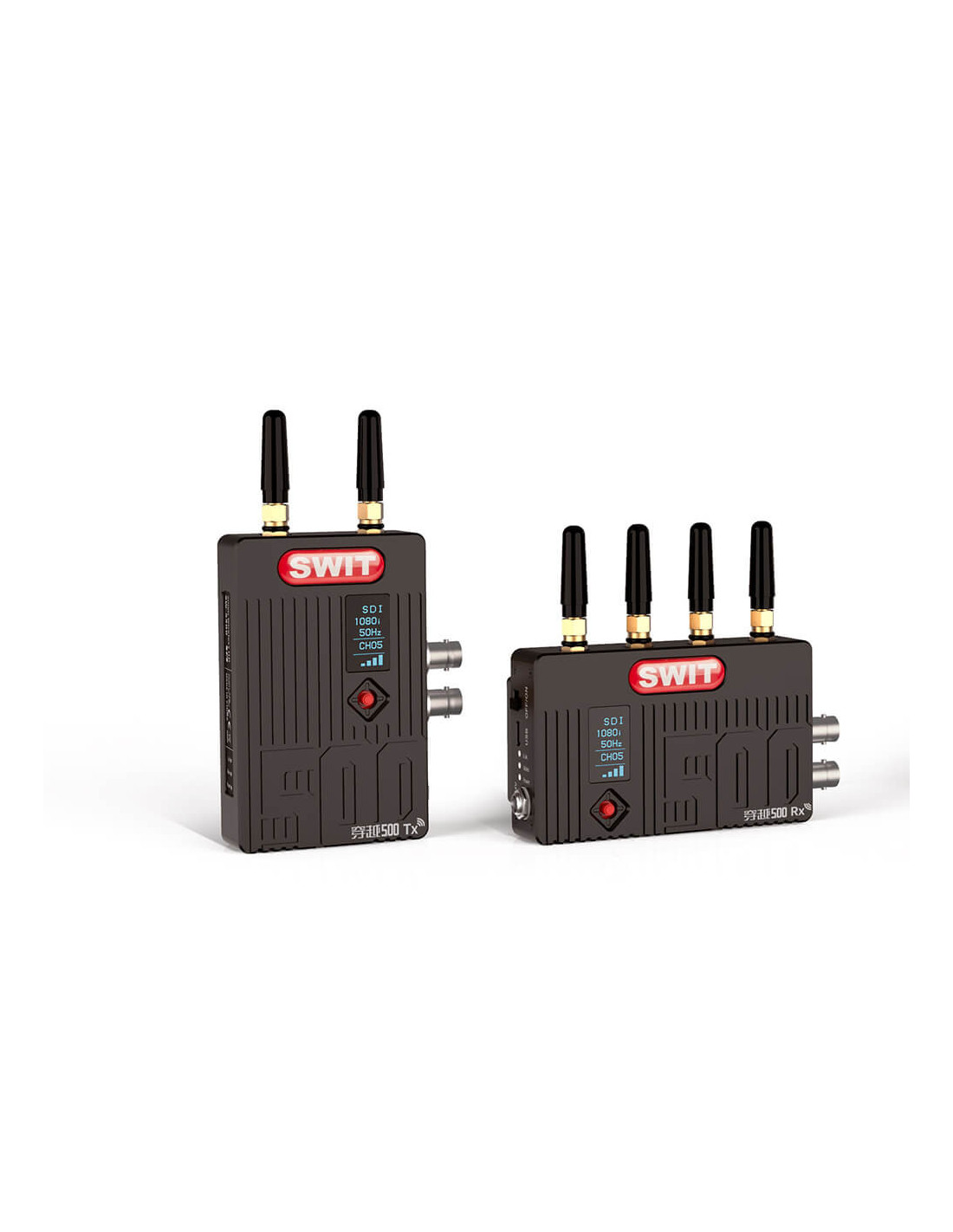

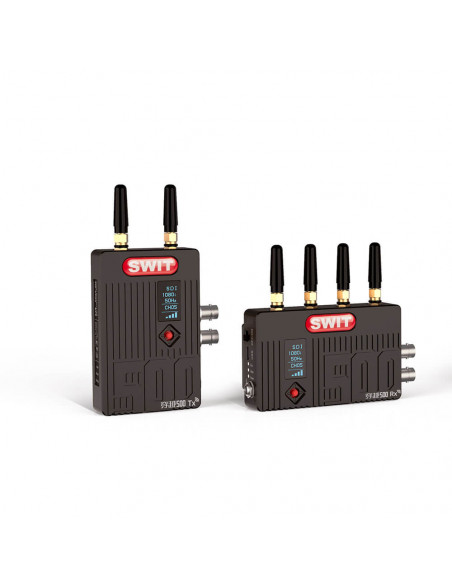

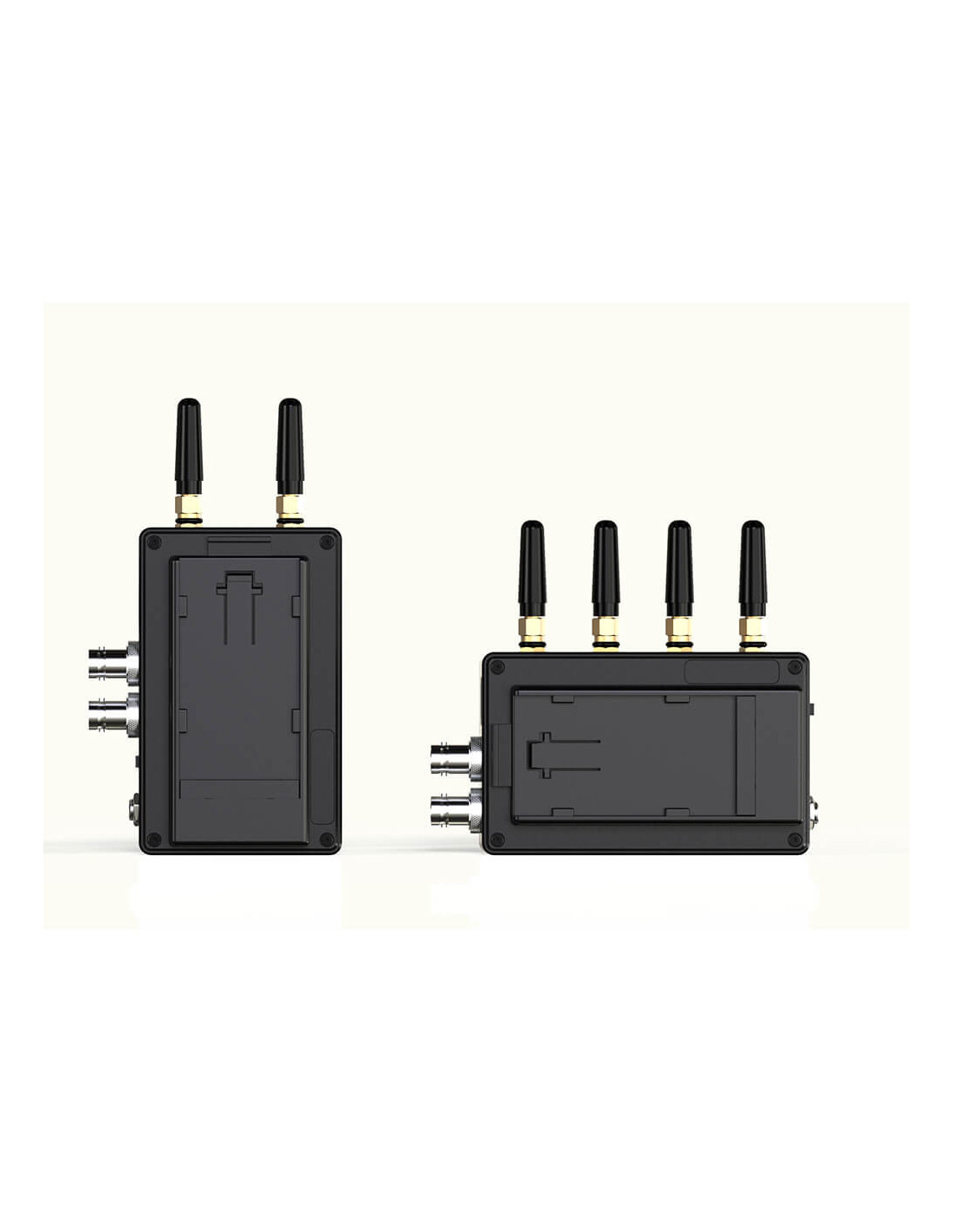

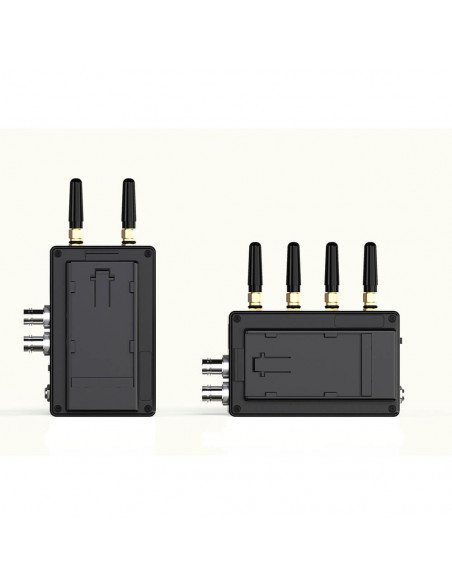

Full HD video radio link system in the 5 GHz frequency band with 3G-SDI and HDMI ports, a max. transmission range of 150 m / 500 ft, NP-F battery plates and multicast support • Works in the frequency range from 5.1 to 5.9 GHz • Supports Dynamic Frequency Selection (DFS) • With 3G-SDI and HDMI ports • Transmission range of up to 150 m / 500 ft (line of sight) • Strong wall-cross performance • Support of 3 to 4 pairs at one set • Multicast capable for using one transmitter with up to four receivers simultaneously • Wireless protocol and double encrypted content • Reclock and accurate colour reproduction The FLOW500 is a Full HD video radio link system in the 5 GHz frequency band (5.1 - 5.9 GHz) consisting of a transmitter and a receiver for the wireless transmission of video signals up to Full HD (1080p60) at a distance of up to 150 m / 500 ft. The transmitter has a 3G-SDI input, an HDMI input and a 3G-SDI loop-through output. The transmitted video signals are output at the receiver via one of the two 3G-SDI outputs or the HDMI output. The wireless link system is multicast capable, allowing one transmitter to transmit to up to four receivers simultaneously. Dynamic Frequency Selection (DFS) also allows three to four pairs of FLOW500s to be used at one set. Both transmitter and receiver are powered either by separately available NP-F batteries, the supplied AC adapter or the supplied power cable with D-Tap. Technical Specifications: Radio Frequency: 5.17 - 5.23 GHz and 5.75 - 5.83 GHz Radio Modules: OFDM 16QAM, 64QAM, QPSK, BPSK Transmission Range: max. 150 m / 500 ft (line of sight) Transmission Power: 125 mW Supported Video Formats: Full HD - 1920 x 1080p / 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 Full HD - 1920 x 1080PsF / 23.98 / 24 Full HD - 1920 x 1080i / 50 / 59.94 / 60 HD - 1280 x 720p / 50 / 59.94 / 60 Data Links: Transmitter-1x 3G-SDI IN via BNC 1x HDMI 1.3 IN via HDMI-A 1x 3G-SDI Loop OUT via BNC 1x USB via Micro-USB (for firmware updates) 2x Antenna 1x Power supply DC via NP-F battery 1x Power supply DC via connector Receiver-2x 3G-SDI OUT via BNC 1x HDMI 1.3 OUT via HDMI-A 1x USB via Micro-USB (for firmware updates) 4x Antenna 1x Power supply DC via NP-F battery 1x Power supply DC via connector General Product Information: Dimensions Transmitter without Antennas (W x H x D): 66 x 106.5 x 24.7 mm (2.6 x 4.2 x 1 in) Dimensions Receiver without Antennas (W x H x D): 106.5 x 66 x 24.7 mm (4.2 x 2.6 x 1 in) Weight Transmitter: 236 g (8.32 oz) Weight Receiver: 245 g (8.64 oz) Operating Temperature: 0° to +40° C (+32° to +104° F) Operating Voltage: 7 - 34 V DC (per transmitter and receiver) Power Consumption: less than or equal to 8 W (per transmitter and receiver)
